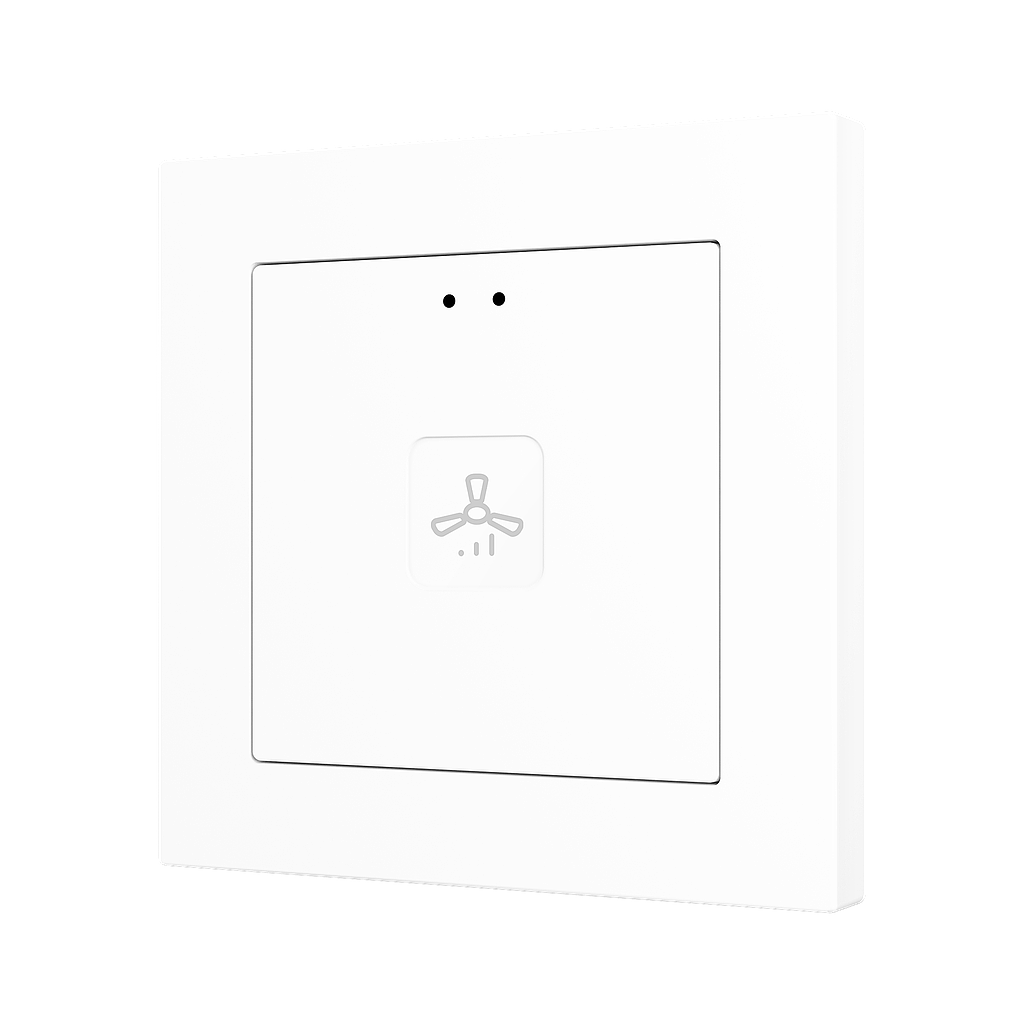

Tecla 55 X1 Touch sensor push button 1-fold

Name: Zennio Tecla 55 X1 Touch sensor push button 1-fold
Brand: Zennio
Price: 83.53 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€83,53 Excl. tax €107,09 Excl. tax
€101,07 Incl. tax €129,58 Incl. tax. Out of stock, but available

Unit price: €83,53 / Piece

Capacitive KNX touch sensor, 1-fold, compatible with 55x55 mm frames. Includes backlight, acoustic feedback, and an integrated thermostat. Read more

Specifications

Brand:

Zennio

Article number:

ZVIT55X1W

EAN:

8411080801159

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

Manual

KNX Touch Sensor Tecla 55 X1

The Tecla 55 X1 is a high-quality capacitive KNX touch sensor, designed to seamlessly integrate with 55x55 mm frames. This sensor offers advanced features such as a touch-sensitive zone, backlighting, and an integrated thermostat, making it ideal for smart buildings and modern homes.

Main Features

1 capacitive touch zone with dynamic backlighting.
Integrated thermostat and connection for an external temperature sensor.
Touch feedback via acoustic signals for user confirmation.
Proximity and light sensors for intelligent operation.
Complete data saving during KNX bus failure.

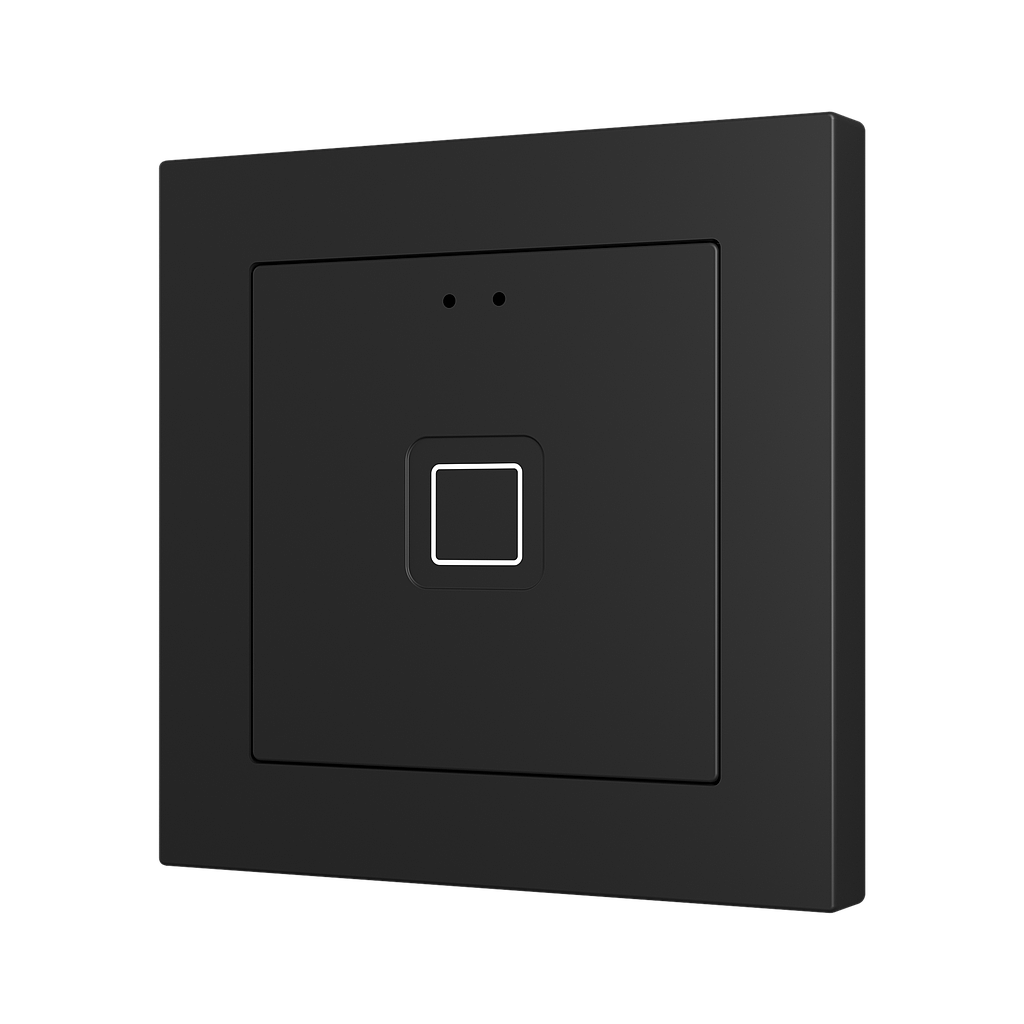

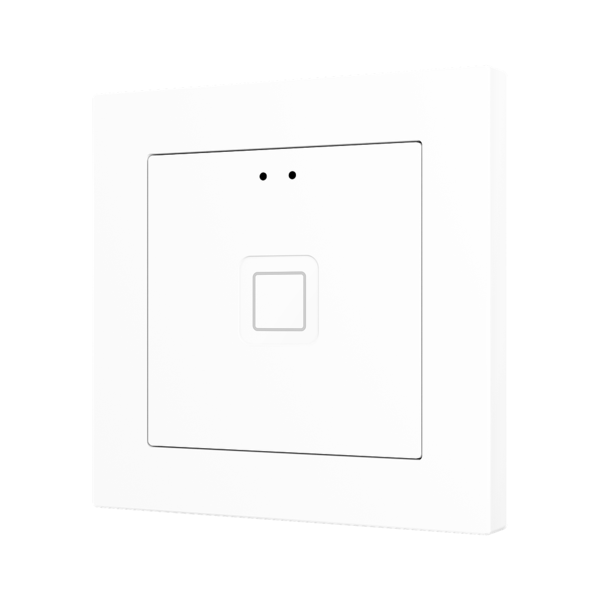

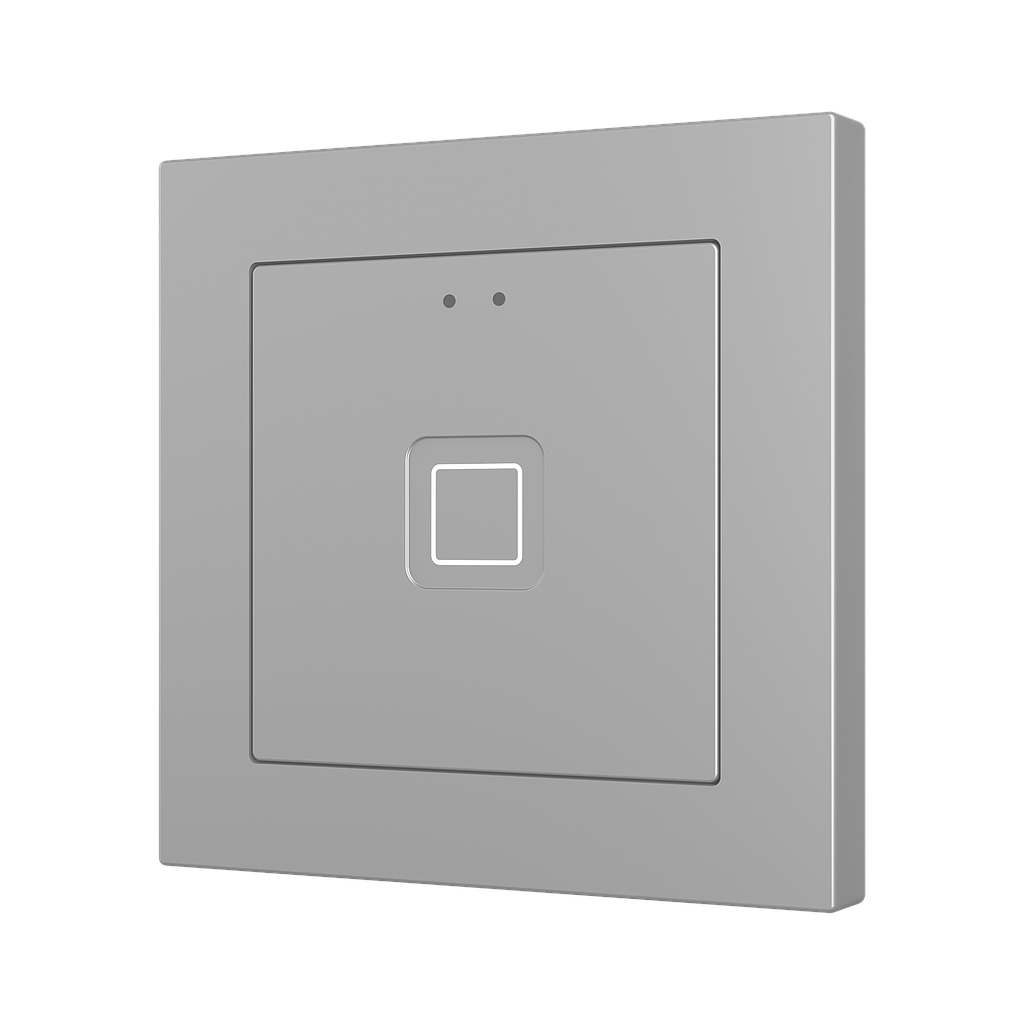

Available in white (RAL 9016), silver (RAL 9006), and anthracite (RAL 9004).
Compatible with 55x55 mm frames and Zennio ZS55 switches and sockets.
Suitable for installation in standard flush-mount boxes.

Technical Specifications

Model	Tecla 55 X1
Dimensions	55.5 x 55.5 x 25.6 mm
Power Supply	21-31 VDC (typical 29 VDC)
Maximum Power Consumption	5.9 mA at 29 VDC (171.1 mW) 10 mA at 24 VDC (240 mW)
Temperature Sensor Range	-30 to +90 °C
Temperature Sensor Resolution	0.1 °C
NTC Accuracy	±0.5 °C at 25 °C
Protection Class	IP20, suitable for clean indoor environments
Operating Temperature	0 to +55 °C
Storage Temperature	-20 to +55 °C
Relative Humidity	5% to 95% (non-condensing)
Temperature Sensor Connection	Number of inputs: 1 Voltage: +3.3 VDC Maximum cable length: 30 meters
Housing Material	PC+ABS, halogen-free
Weight	38 grams
Certifications	CE, UKCA, RCM
KNX Interface	Integrated KNX BCU (TP1-256)

Important Note

The accuracy of the built-in temperature sensor may be affected by environmental factors. Configure the sensor according to installation requirements to ensure optimal performance.
