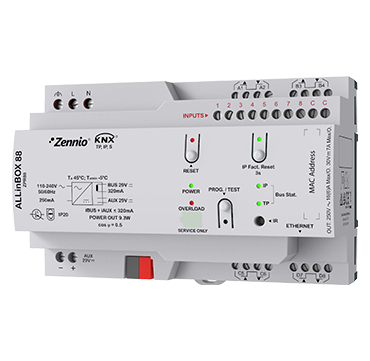

ALLinBOX 88 Multi-device KNX-IP Interface, 8 outputs, 8 inputs

Name: Zennio ALLinBOX 88 Multi-device KNX-IP Interface, 8 outputs, 8 inputs
Brand: Zennio
Price: 426.84 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€426,84 Excl. tax €508,14 Excl. tax
€516,48 Incl. tax €614,85 Incl. tax. Out of stock, but available

Unit price: €426,84 / Piece

Multifunction KNX device with 320 mA power supply, KNX-IP interface, 8 outputs, 8 inputs, 4 thermostats, logic module, and fan-coil control (2/4-pipe). Perfect for climate management and automation. Read more

Specifications

Brand:

Zennio

Article number:

ZPR88

EAN:

8411080805263

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Manual

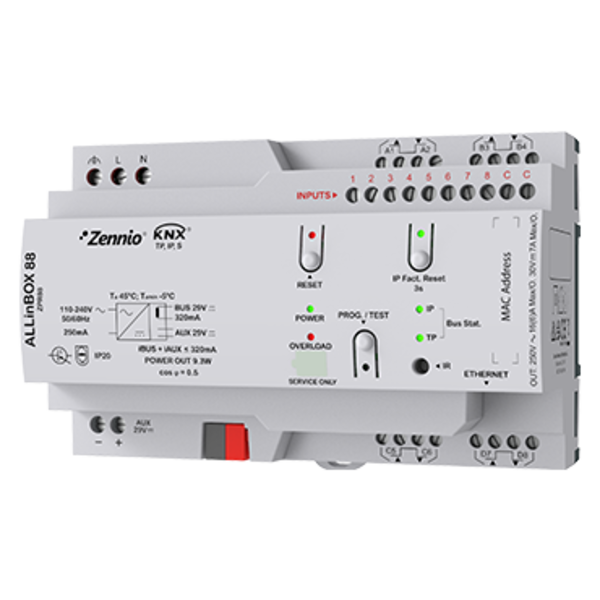

ALLinBOX 88 Art.No: ZPR88 - Multifunctional KNX Device

The ALLinBOX 88 is a powerful and versatile KNX device integrating a 320 mA KNX power supply, a KNX-IP interface, 8 analog/digital inputs, 8 relay outputs, logic functions, and climate control for up to 4 zones. Ideal for advanced automation projects in residential and commercial environments.

Technical Details by Category

KNX Power Supply (320 mA)

Voltage: 29 VDC SELV with KNX coil.
Maximum current (IBUS): 320 mA.
Additional output: 29 VDC SELV, combined IAD + IBUS ≤ 320 mA.
Safety features: Short-circuit and overload protection.
Status indicators: LED for power supply and overload status.
Reset function: Built-in reset button for quick restart.

Outputs

Number of outputs: 8 relay outputs.
Relay characteristics: Potential-free bistable relays with tungsten pre-contact.
Maximum load:
- Resistive load: 4000 W.
- Inductive load: 1500 VA.
- Capacitive load: Up to 140 µF.
Maximum current: 16 A per output, 40 A per block.
Lifetime: Mechanical: ≥ 3 million cycles; Electrical: ≥ 100,000 cycles at 8 A.
Response time: Max. 10 ms.
Wiring method: Screw terminals, cable cross-section 0.5-2.5 mm².
Additional features: Manual operation via remote control and timing options.

Inputs

Number of inputs: 8 analog/digital inputs.
Voltage: +3.3 VDC on the common line.
Maximum cable length: 30 m.
Switching type: Dry contacts.
Temperature sensors: Supports NTC sensors with ±0.5 °C accuracy (at 25 °C).
Wiring method: Screw terminals, cable cross-section 0.5-2.5 mm².
Maximum response time: 10 ms.

KNX-IP Interface

Protocol: KNXnet/IP tunneling, up to 5 simultaneous connections.
Maximum APDU length: 254 bytes.
Ethernet connection: 10/100 BaseT via RJ45 port.
Synchronization: NTP clock support.
Data recovery: Full data recovery after a KNX bus failure.

General Characteristics

Dimensions: 71 x 90 x 140 mm (8 DIN units).
Power supply: 110-240 VAC, 50/60 Hz.
Operating temperature: -5 to +45 °C.
Mounting: DIN rail compliant with IEC 60715.
Protection class: IP20, suitable for clean environments.
Safety: No built-in short-circuit, overload, or overvoltage protection for outputs.

Applications

The ALLinBOX 88 is designed for residential, commercial, and industrial projects. It offers flexibility for lighting, blinds, HVAC systems, and other automation applications.
