KNX blind/shutter actuator 4× 12–24 V DC, 6 A per channel
€224,00 Excl. tax
€359,00 Excl. tax
€271,04 Incl. tax €434,39 Incl. tax. Out of stock, but available
€271,04 Incl. tax €434,39 Incl. tax. Out of stock, but available
The KNX blind and shutter actuator BI04F01KNX provides 4 outputs for 12–24 V DC motors, each rated at 6 A. Suitable for blinds, shutters and other 24V DC drives. Ideal for smart building and home automation applications. Read more
Specifications
Brand:
eelectron
Article number:
SA04K01KNX
EAN:
8054144522944
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
This shutter and blind module belongs to the K-Series.

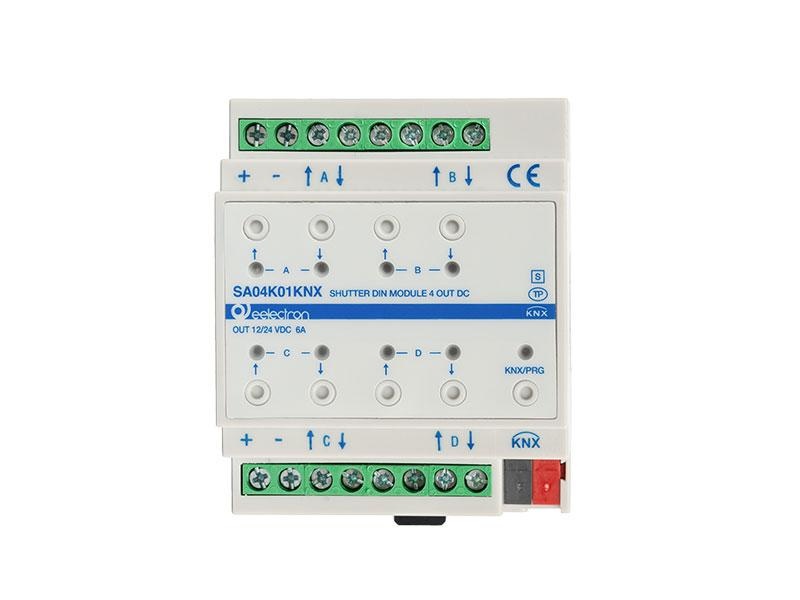

KNX shutter and blind actuator – 4 outputs 12–24 V DC, 6 A per channel
Article number: SA04K01KNX
The Eelectron SA04K01KNX is a compact and powerful KNX actuator designed to control 12–24 V DC motors for shutters, blinds, and other DC-driven shading systems. The module provides 4 independent outputs, each supporting up to 6 A, enabling precise position and direction control. It is suitable for DIN-rail mounting (4TE) and ideal for residential, commercial, and building automation applications.
Applications
- Control of 12–24 V DC shutters and blinds
- DC motor control in façade automation systems
- Integration into KNX scenes, logic, and time schedules
- Suitable for residential and commercial projects
Main features
- 4 outputs for DC motor control (shutters/blinds)
- Supports 12–24 V DC motors, 6 A per channel
- Mechanical endurance: > 5 × 10⁶ operations
- Electrical lifetime: > 1 × 10⁵ cycles at 10 A load
- Separate power supply for the motor outputs
- Integrated KNX bus interface
- Supports scenes, automation functions and logic via ETS
Technical specifications
| Power supply (KNX) | 21–30 V DC via the KNX bus |
|---|---|
| Max. current consumption | 9.4 mA |
| Number of outputs | 4 outputs for DC motors (shutters/blinds) |
| Rated operational voltage (motors) | 12–24 V DC |
| Rated current per channel | 6 A |
| Load type | 24 V DC motors (shutters / blinds) |
| Mechanical life | > 5 × 10⁶ operations |
| Electrical life | > 1 × 10⁵ cycles at 10 A load |
| KNX connection | 0.8 mm Ø solid core bus terminal |
| Screw terminals | Max. 6 mm Ø solid core, tightening torque max. 0.6 Nm |
| Housing | ABS V0 — REG housing 4TE |
| Dimensions | 70 mm × 58 mm × 90 mm |
| Weight | 235 g |
| Mounting | 35 mm DIN rail |
| EMC standards | EN 63044-5-1 / EN 63044-5-2 — EMC Directive 2014/30/EU |
| Protection rating | IP20 (EN 60529) |
| Protection class | Class III |
| Overvoltage category | Category III |
| Ambient temperature (operation) | -5 °C to +45 °C |
| Storage temperature | -25 °C to +55 °C |
| Relative humidity | Max. 93%, non-condensing |
| Installation environment | Indoor, dry locations |
| Certifications | KNX certified |
Important notes
- All outputs are designed exclusively for 12–24 V DC motor loads.
- Use only in dry indoor environments (IP20).
- Installation and ETS configuration must be performed by certified KNX installers.
