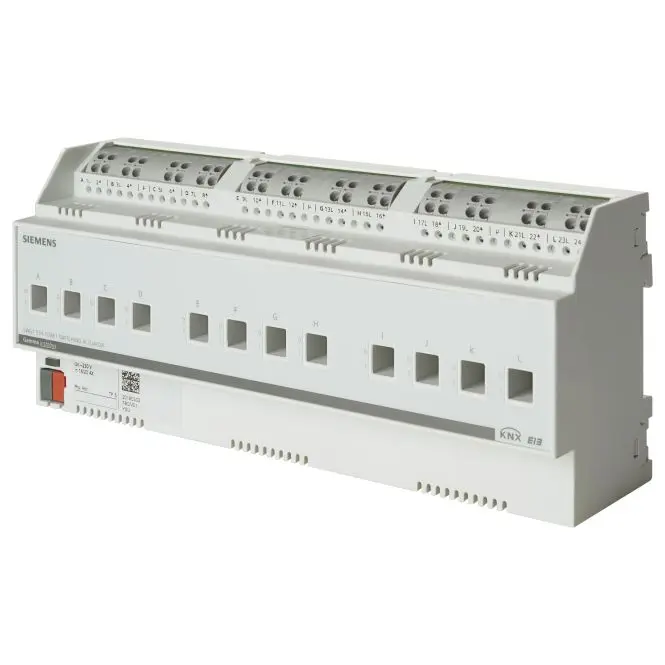

KNX switch actuator | 12-fold, 16/20 A, N 534D61
€314,28 Excl. tax
€563,00 Excl. tax
€380,28 Incl. tax €681,23 Incl. tax. Out of stock, but available
€380,28 Incl. tax €681,23 Incl. tax. Out of stock, but available
KNX switching actuator with 12 outputs for controlling resistive, inductive and capacitive loads. Supports 16 A continuous and up to 20 A peak per channel. Designed for DIN rail mounting and ETS configuration. Read more
Specifications
Brand:
Siemens
Article number:
5WG1534-1DB61
EAN:
7612914108616
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
SIEMENS KNX switching actuator, 12-channel, 16/20 A
The Siemens KNX switching actuator with 12 outputs is designed for reliable switching of resistive, inductive and capacitive loads in KNX installations. Each channel supports up to 16 A continuous current and 20 A peak load, making it ideal for applications such as lighting, HVAC valves and motor-driven loads.
Applications
- Lighting (e.g. incandescent, halogen or LED loads within specifications)
- Motor loads and relay-controlled applications
- Switching functions in residential and commercial buildings
Main features
- 12 independent switching channels
- Supports resistive, inductive and capacitive loads
- Status LED for each channel
- Manual operation for commissioning and testing
- ETS configuration with scenes, time functions and logic
- Maintenance-free terminals for conductors of approx. 0.5–2.5 mm²
- DIN rail mounting (35 mm according to IEC 60715)
Technical data
| Channels | 12 |
|---|---|
| Nominal voltage | 230 V AC |
| Max. switching current per channel | 16 A continuous, 20 A peak |
| Max. output power (indicative) | approx. 3680 W per channel (at 230 V / 16 A) |
| Bus voltage | KNX 24 V DC (approx. 21–30 V DC) |
| Degree of protection | IP20 |
| Wiring | 0.5–2.5 mm², solid or flexible conductors |
| Mounting | DIN rail 35 mm (IEC 60715) |
Important notes
- Version without current detection.
- Check load specifications (inrush currents, power factor cos φ) before installation.
- Configuration and parameter setting must be performed via ETS.
- Installation must comply with applicable safety standards.
