KNX secure 2M230.8I AP | 2-fold Blind Actuator KNX Secure
€168,67 Incl. tax €332,02 Incl. tax. Out of stock, but available
Specifications
Information

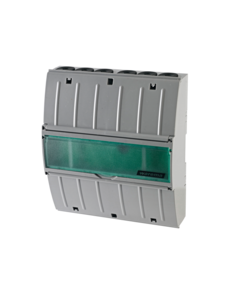

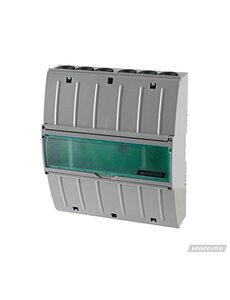

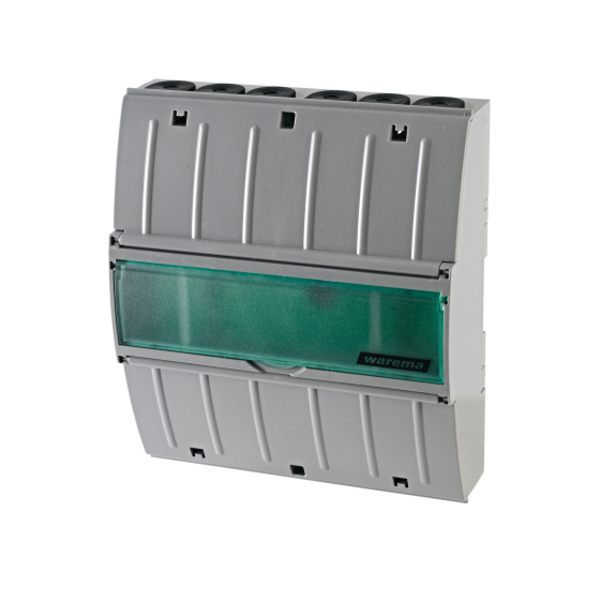

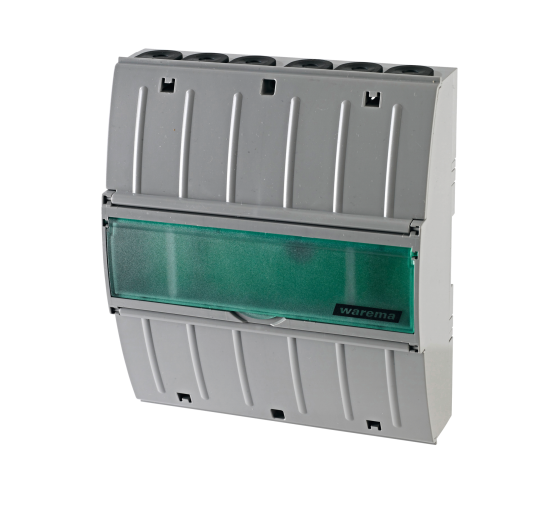

KNX secure 2M230.8I AP
Surface-mounted actuator 2-fold and 8 binary inputs
KNX Secure
Art. No.: 2040738
The KNX secure 2M230.8I AP is an advanced surface-mounted actuator for safe and flexible control of shading, blinds, and other 230 V drives. Thanks to KNX Secure technology, communication is fully encrypted, allowing only authorized participants access. The actuator features two independent 230 V outputs and eight binary inputs, enabling a wide range of automation and security functions. Manual operation is easy via Bluetooth Low Energy and the free KNX actuator app.
Main features
- KNX Secure certified for maximum digital security
- Individual control and parameterization of 2 output channels (230 V AC)
- Up to 8 binary inputs for switching, dimming, blinds, scene buttons, and edge/state analysis
- Manual operation possible via Bluetooth (smartphone app)
- Comprehensive automation functions, such as integrated sun position calculation, slat angle control, heating support, and safety features
- Replaceable fine fuse for line protection
- Reversal of rotation direction programmable via ETS
- Priority settings possible for functions (scenes, security, presence)
- Comprehensive status objects as well as logic and timer functions
- Preset output type for various shading products with preconfigured basic parameters
- Special settings for awnings with ZIP guidance and responsive obstacle detection
- High positioning precision thanks to extensive motor parameter options
- Firmware update possible via KNX bus
- Fast and reliable commissioning thanks to automatic run-time detection
- Integrated run-time adjustment compensates for aging deviations
- Monitoring of motor current and run-time with error reporting via fault object
- Adjustable minimum switching pause for inrush current protection
- Supports scenes, time-based functions, safety and alarm scenarios
- Three global safety objects with monitoring and individually adjustable response
- KNX programming button and status LED for easy installation
- Bluetooth code can be easily changed or deactivated via ETS
Technical specifications
| Operating voltage | 230 V AC, 50/60 Hz |
|---|---|
| Power consumption | approx. 4 W (operation) |
| Connection type | Plug-in terminal (screwless) |
| Outputs | 2 x 230 V AC, independently switchable |
| Switching capacity per output | max. 500 VA at 230 V AC, cos φ = 0.6 |
| Maximum total load | 1000 VA |
| Binary inputs | 8 x binary input (freely configurable via ETS, potential-free) |
| Protection class | IP30, Class I (grounding required) |
| Radio interface | Bluetooth Low Energy (LE), range approx. 10 m |
| Mounting type | Surface-mounted (wall installation) |
| Ambient temperature (operation) | -5 °C to +45 °C |
| Relative humidity | 5% to 93% (non-condensing) |
| Dimensions (W x H x D) | 158 mm x 180 mm x 60 mm |
| Weight | approx. 900 g |
| KNX certification | KNX Secure, certified |
| Firmware update | Via KNX bus (ETS or KNX/USB interface) |
| Fuse | Fine fuse (replaceable) |
| Minimum switching pause | Adjustable (standard enabled for inrush current protection) |
| Additional functions | Sun position calculation, ZIP guidance, motor management, scenes, logic, timers, alarm and safety functions |
Important note
Note: This is a surface-mounted component (wall installation) with KNX Secure encryption. Only authorized participants have access. A compatible KNX installation and ETS software are required for commissioning.
