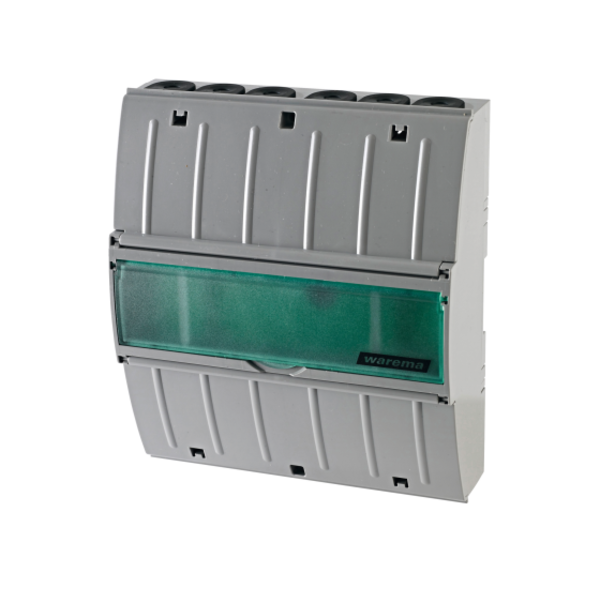

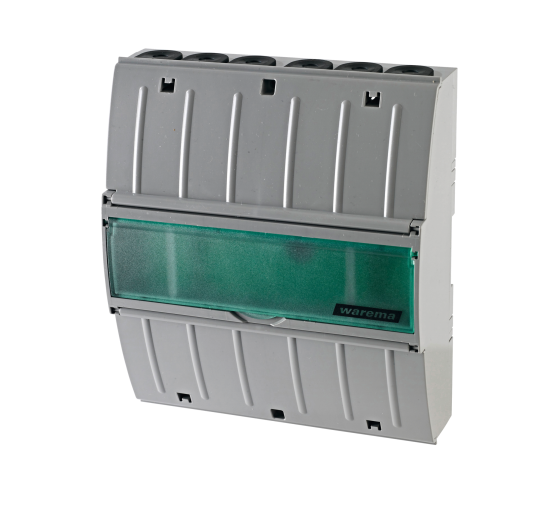

KNX secure 8M230.16I AP | 8-fold Blind Actuator KNX Secure
€392,66 Incl. tax €772,95 Incl. tax. Out of stock, but available
Specifications
Information
KNX secure 8M230.16I AP
Surface-mounted actuator 8-fold and 16 binary inputs
KNX Secure
Art. No.: 2040764
The KNX secure 8M230.16I AP is a powerful surface-mounted actuator for safe and flexible control of shading, blinds, shutters, and other 230 V drives. Thanks to KNX Secure technology, all communication is fully encrypted and only accessible to authorized users. This actuator offers eight independent 230 V outputs and sixteen binary inputs, enabling extensive automation and security functions. Control is possible via KNX, binary inputs, or manually via Bluetooth Low Energy and the free KNX actuator app for smartphones.
Main features
- KNX Secure certified for maximum digital security
- Individual control and parameterization of 8 output channels (230 V AC)
- Up to 16 binary inputs for switching, dimming, blinds, scene buttons, and edge/state analysis
- Manual operation possible via Bluetooth (smartphone app)
- Advanced automation functions such as integrated sun position calculation, slat angle-dependent control, heating support, presence and security functions
- Replaceable fine fuse for line protection
- Reversal of direction programmable via ETS
- Prioritization of individual functions freely programmable (scenes, security, presence)
- Extensive status objects, logic, and timer functions
- Preset output type for different shading products with pre-programmed basic parameters
- Special settings for awnings with ZIP guidance and responsive obstacle detection
- Highest precision in positioning thanks to extensive motor adjustment options
- Firmware update possible via KNX bus
- Fast and reliable commissioning through automatic run-time detection
- Integrated run-time adjustment compensates for deviations due to aging
- Monitoring of motor current and run-time with error reporting via fault object
- Limitation of manual control possible, such as cut-off limitation
- Limit and measured values adjustable via ETS parameters and group objects
- Easy linking with other Warema KNX devices via additional 3-byte object
- KNX programming button and status LED for easy installation
- Bluetooth code easily changeable or deactivatable via ETS
Technical specifications
| Operating voltage | 230 V AC, 50/60 Hz |
|---|---|
| Power consumption | approx. 7 W (operation) |
| Connection type | Plug-in terminal (screwless) |
| Outputs | 8 x 230 V AC, independently switchable |
| Switching capacity per output | max. 500 VA at 230 V AC, cos φ = 0.6 |
| Maximum total load | 4000 VA |
| Binary inputs | 16 x binary input (freely configurable via ETS, potential-free) |
| Protection class | IP30, Class I (grounding required) |
| Radio interface | Bluetooth Low Energy (LE), range approx. 10 m |
| Mounting type | Surface-mounted (wall mounting) |
| Ambient temperature (operation) | -5 °C to +45 °C |
| Relative humidity | 5% to 93% (non-condensing) |
| Dimensions (W x H x D) | 210 mm x 180 mm x 60 mm |
| Weight | approx. 1200 g |
| KNX certification | KNX Secure, certified |
| Firmware update | Via KNX bus (ETS or KNX/USB interface) |
| Fuse | Fine fuse (replaceable) |
| Minimum switching pause | Adjustable (standard enabled for inrush current protection) |
| Additional functions | Sun position calculation, ZIP guidance, motor management, scenes, logic, timers, alarm and safety functions |
Important note
Note: This is a surface-mounted component (wall mounting) with KNX Secure encryption. Only authorized users have access to the device. For commissioning, a compatible KNX installation and ETS software are required.
