KNX Shading Actuator SA 4M230 REG | 4-way KNX Secure blind actuator

Name: WAREMA KNX Shading Actuator SA 4M230 REG | 4-way KNX Secure blind actuator
Brand: WAREMA
Price: 156.11 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€156,11 Excl. tax €307,30 Excl. tax
€188,89 Incl. tax €371,83 Incl. tax. Out of stock, but available

Unit price: €156,11 / Piece

KNX shading actuator for 4 outputs (230V AC, 500 VA), with preconfigured parameters, flexible control, status objects, and manual operation via Bluetooth LE. Read more

Specifications

Brand:

WAREMA

Article number:

2014570

EAN:

4251317203721

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Warema website

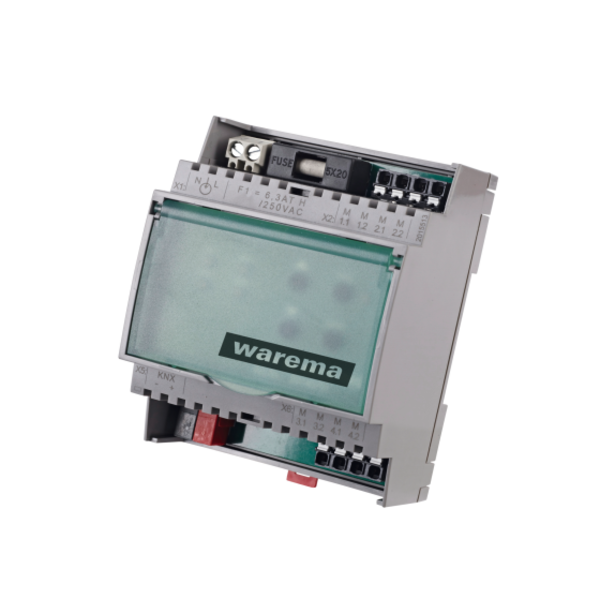

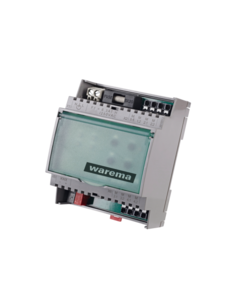

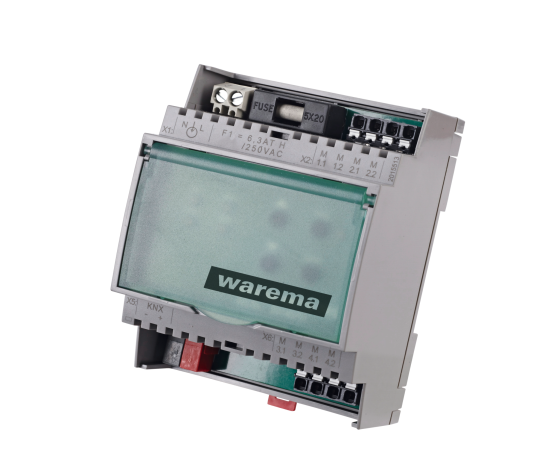

KNX Shading Actuator SA 4M230 REG

4-way 230V AC blind actuator | DIN rail mounting

Art. No.: 2014570

Comprehensive Product Description

The KNX Shading Actuator SA 4M230 REG is designed for the individual control of up to 4 shading motors or blinds at 230V AC. This actuator is ideal for integration in advanced building automation systems, combining flexible operation, high precision, and easy installation. With preconfigured parameters and simple parameterization via ETS, various applications can be realized quickly and reliably. Manual priority control is possible via buttons or Bluetooth LE, ensuring local operation even without a KNX central unit.

Main Features

Individual control and parameterization of 4 outputs (4 x 230 V AC, 500 VA per output)
Suitable for various shading products such as blinds, roller shutters, and screens
Preconfigured parameters for fast and easy commissioning
Flexible parameterization via ETS software
Comprehensive status objects for precise monitoring and feedback
Manual operation via buttons or Bluetooth LE (with priority function)
Manual operation limitation possible (e.g., cut-off limit)
Special settings for awnings with ZIP guidance and responsive obstacle detection
High precision positioning through extensive motor property settings
Easy DIN rail mounting (4 modules wide)
Protection class IP 30, Class I
Emergency/manual operation via buttons, local priority possible

Technical Specifications

Operating voltage	230 V AC
Outputs	4 x 230 V AC
Switching capacity per output	500 VA at 230 V AC (cos φ = 0.6)
Connection type	Plug-in terminal
Protection class	IP 30
Insulation class	Class I
Mounting	DIN rail (serial mounting), 4 modules (TE)
Manual operation	Buttons on the device, Bluetooth LE
Status objects	Comprehensive monitoring and feedback via KNX bus
Functions	Individual control, preconfigured parameters, ZIP guidance, obstacle detection, priority management
Width	4 modules (TE)
EAN code	4251317203721

Additional Equipment & Features

Extensive status objects for bus communication
Output type preselection for various shading products
Fast and easy coupling with other WAREMA KNX components
Manual operation with priority over automatic functions (override)
Quick installation thanks to compact design and DIN rail mounting

Downloads and Software

ETS application and documentation (available from manufacturer)
Manuals and technical data sheets available

Important Note

Note: Use only with suitable 230V AC shading motors and always follow the manufacturer's installation instructions to avoid damage. Manual operation via Bluetooth LE works only within the device's range.
