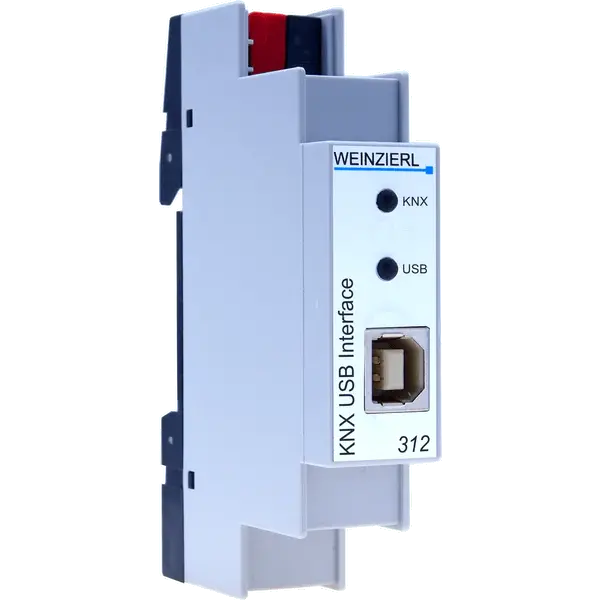

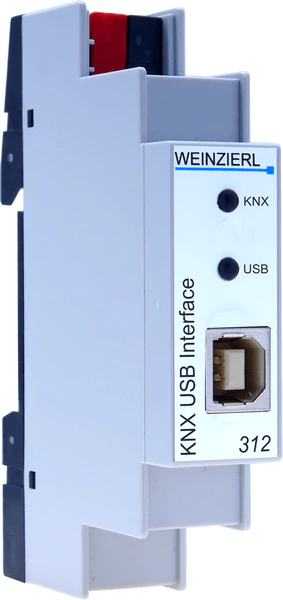

WEINZIERL 5229 KNX USB Interface for DIN Rail Mounting
€130,82 Excl. tax
€189,60 Excl. tax
€158,29 Incl. tax €229,42 Incl. tax. Out of stock, but available
€158,29 Incl. tax €229,42 Incl. tax. Out of stock, but available
Compact KNX USB interface between PC and KNX bus, ETS ready, supports KNX long frames, galvanic isolation, BAOS V2, HID/cEMI, DIN rail mount. Read more
Specifications
Brand:
Weinzierl
Article number:
5229
EAN:
4260262772299
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Product Description – KNX USB Interface 312
Art. No. 5229
Application
The Weinzierl KNX USB Interface 312 is a connection between a PC or laptop and the KNX installation bus. It acts as a programming interface for ETS software (version 3 and higher) and supports KNX long frames, enabling faster downloads to compatible devices. The USB connection is galvanically isolated from the KNX bus for safety. The interface is ideal for fixed DIN rail installations.
Features
- Compact USB interface between PC/laptop and KNX bus
- Compatible with ETS software version 3 or higher
- Supports KNX long frames for high-speed downloads
- Galvanic isolation between USB and KNX bus
- 2 multicolor LEDs for status and communication indication
- Supports BAOS V2 and HID/cEMI protocols
- DIN rail mounting (1 module = 18 mm width)
- USB type B port, max. cable length 5 m
Technical Data
- Power supply: via USB (< 15 mA), KNX (< 3 mA)
- KNX medium: TP
- Interface protocol: HID / cEMI
- Max. APDU length: 55 bytes
- Object server: BAOS V2
- Device model: System B
- Housing: Plastic (PC), 1 unit (18 mm), DIN rail mount
- Protection class: IP20 (according to EN 60529)
- Weight: approx. 40 g
- Operating temperature: -5 °C to +45 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 5 % to 93 % (non-condensing)
- KNX bus connection: Red/black terminal
- USB port: Type B, max. cable length 5 m
Operation and Diagnostics
- 2 multicolor LEDs for system and communication status
Standards and Certifications
- EMC Directive: 2014/30/EU
- RoHS Directive: 2011/65/EU
- Applicable standards:
- EN 63044-3:2018
- EN 63044-5-1/2/3:2019
- EN 61000-6-2:2019
- EN 61000-6-3:2021
- EN 63000:2018
Important Note
Note: The KNX USB Interface 312 supports KNX long frames and is suitable for programming KNX Secure devices via ETS. It is designed for fixed indoor installations on DIN rails.
