5WG1605-1DB41 KNX thermal drive actuator | 6-fold, AC 24–230V, with 6 integrated room temperature controllers
€207,13 Incl. tax €374,50 Incl. tax. Out of stock, but available
Specifications
Information

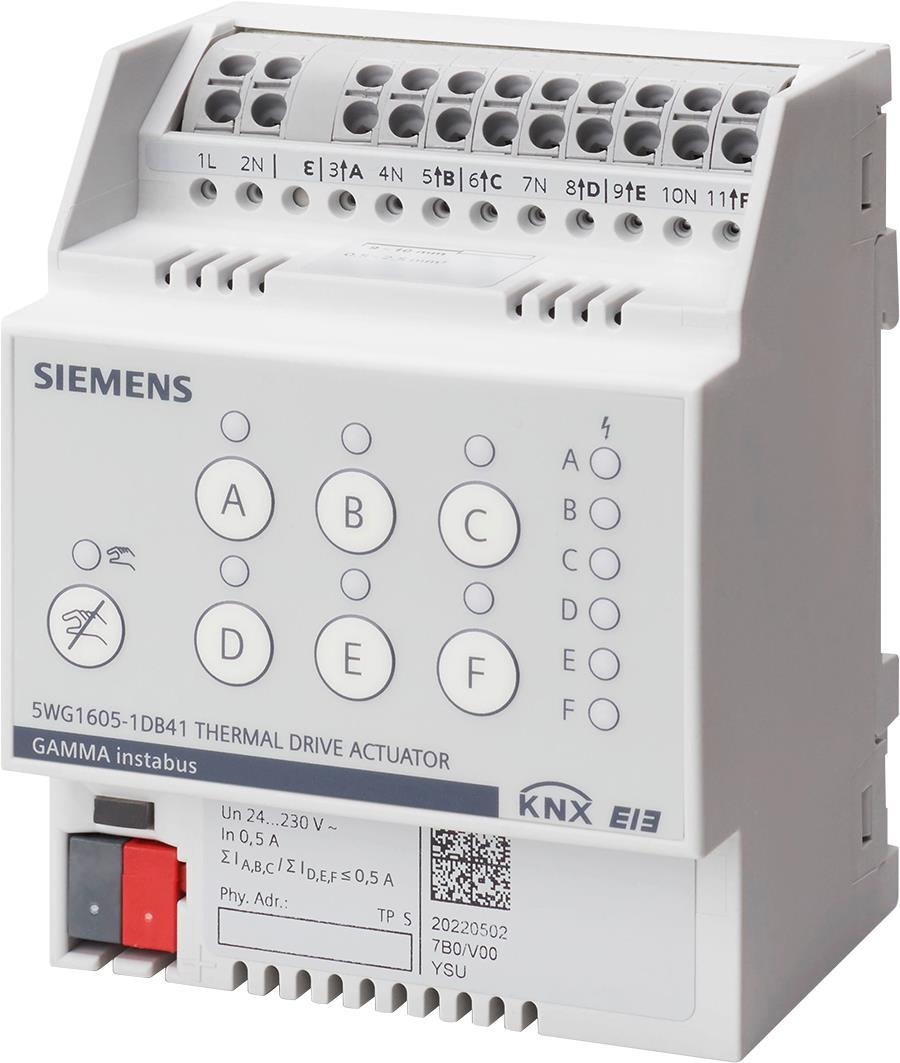

KNX Thermal Drive Actuator N 605D41 – 6 x AC 24…230 V
The Siemens N 605D41 controls electrothermal valve actuators for heating and cooling systems. Six noiseless semiconductor outputs ensure smooth, precise operation.
Main features
- 6 outputs with short-circuit and overload protection
- Direct operation per channel with LED status display
- 6 integrated room temperature controllers
- Automatic, demand-based or manual valve flushing
- Operating hours and switching cycles counting
- Overload and mains voltage failure detection
- Bus-powered electronics – no extra supply required
- DIN rail TH35 mounting, IP20 protection
Technical specifications
- Bus voltage: KNX DC 24 V (21–30 V)
- Rated current: 0.5 A / channel, 3.5 A inrush (2 s)
- Outputs: 6 × AC 24–230 V
- Operating temperature: –5 °C … +45 °C
- Protection: IP20 / plastic housing RAL 7035
Reliable KNX control for heating and cooling valves – ideal for smart building automation.
