- For latching to valve adapter
- Delivery with valve adapterring VA80 for mounting on all regular valves with a connection thread of M30x1.5 mm and a ram stroke of up to 5.5 mm (e.g. Siemens series VPI46… and VPP46…)
- Max. positioning force: 120 N
- Cable (0.80 m) permanently connected to the enclosure for bus connection and two additional signaling contacts (e. g. window contacts), which can be connected as binary inputs
- For operation solely with the bus voltage, i. e. without external auxiliary power
- Maintenance-free, silent drive
- Automatic valve stroke detection, through which the actuator travel is adjusted to the valve used

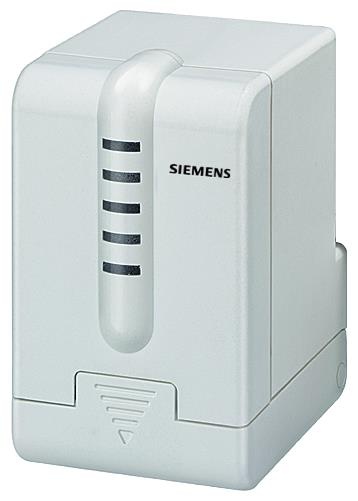

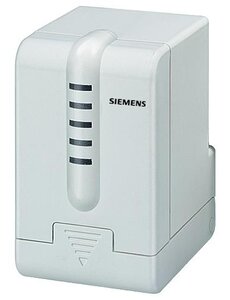

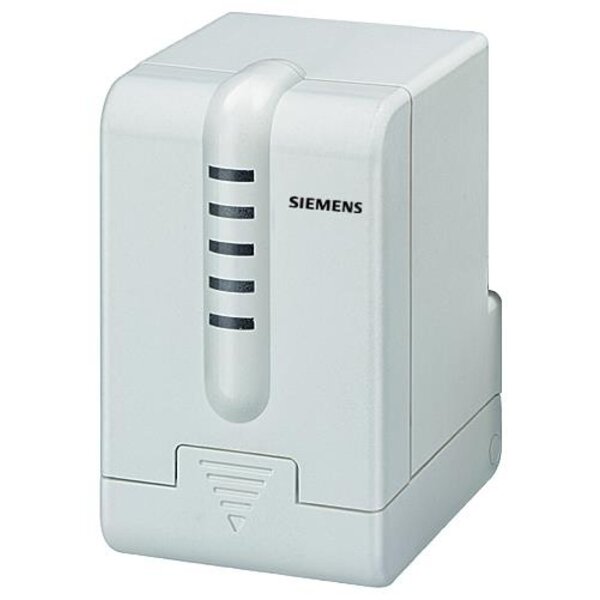

AP 562/02 Electromotive valve actuator with LED valve position indication
€144,30 Excl. tax
€240,00 Excl. tax
€174,60 Incl. tax €290,40 Incl. tax. Out of stock, but available
Unit price: €144,30
€174,60 Incl. tax €290,40 Incl. tax. Out of stock, but available
Electromotive, proportional (constant) valve actuator with LED valve position indication and with integrated bus coupling unit for direct connection to KNX:
For latching to valve adapter Read more
Specifications
Brand:
Siemens
Article number:
5WG1562-7AB02
EAN:
4001869429601
Availability:
Out of stock, but available
Delivery time:
3-5 Business Days
Information
AP 562/02 Electromotive valve actuator with LED valve position indication
Electromotive, proportional (constant) valve actuator with LED valve position indication and with integrated bus coupling unit for direct connection to KNX:
