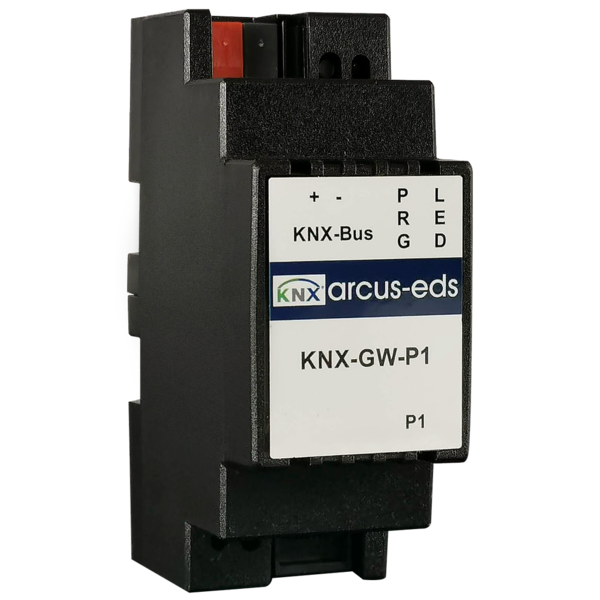

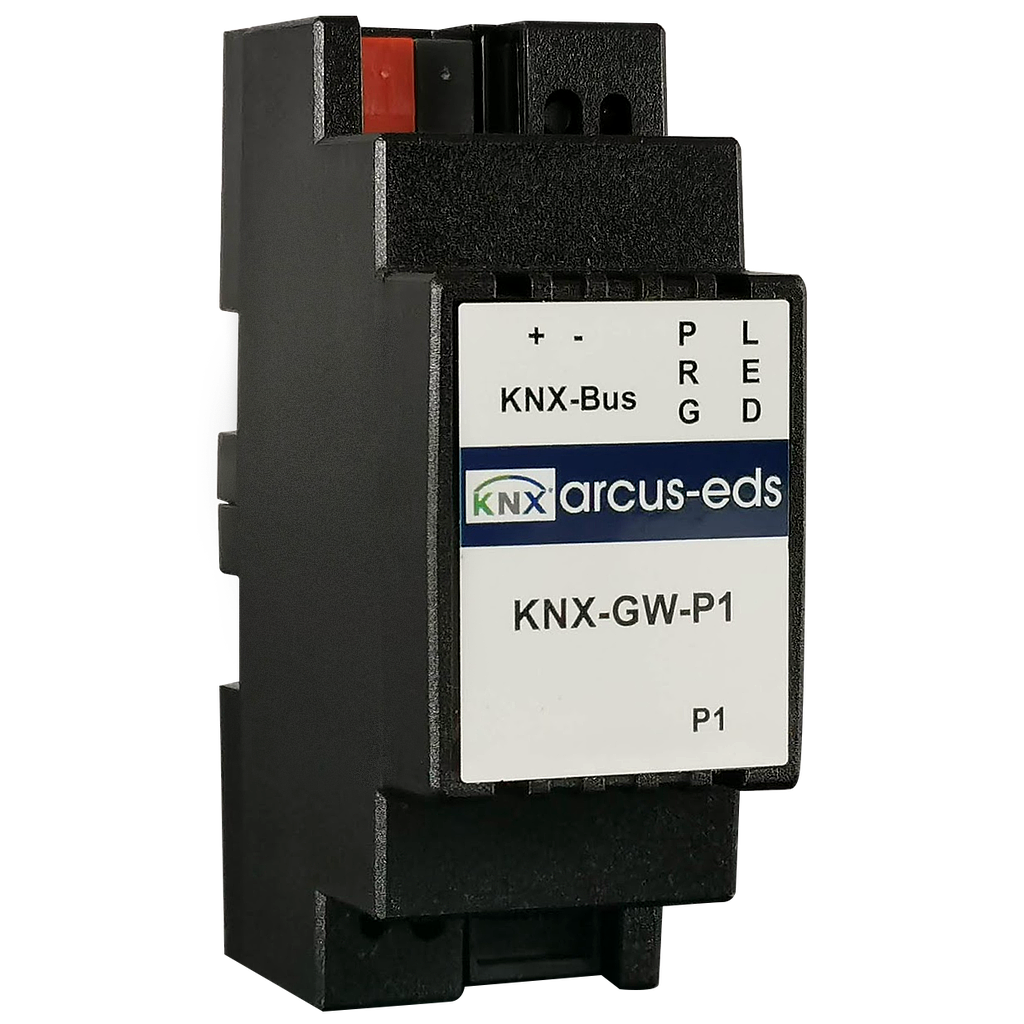

KNX-GW-HAN-P1-REG - KNX Gateway for P1 port smart meter
€167,99 Excl. tax
€215,37 Excl. tax
€203,27 Incl. tax €260,60 Incl. tax. Out of stock, but available
€203,27 Incl. tax €260,60 Incl. tax. Out of stock, but available
KNX gateway for P1 meters. Connects 1 P1 meter and 4 external meters to KNX. Reads values like power, current, and energy. DIN rail mounting. Read more
Specifications
Brand:
Arcus-EDS
Article number:
60400013
EAN:
642125990998
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information
KNX HAN P1 Gateway
Article Number: 60400013

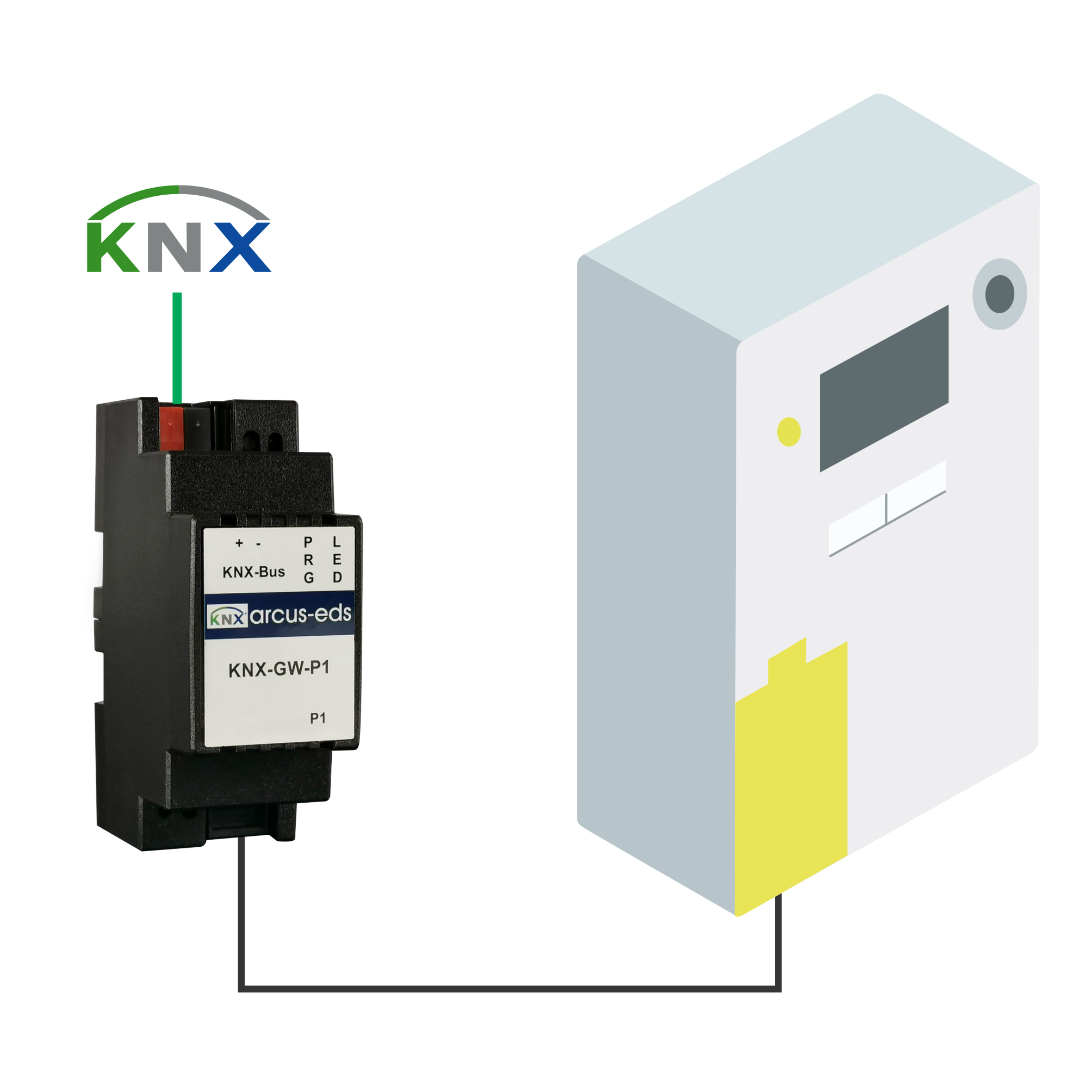

The KNX HAN P1 Gateway connects a P1 meter and up to four external meters to a KNX bus, providing accurate energy data for smart monitoring and automation.
Main Features
- Compatible with P1 interface meters
- Supports 1 P1 meter and 4 external meters
- Data retrieval: real-time power, current, voltage, and total energy
- Configuration via ETS software
- Mounting: DIN rail
- Integrated bus coupling
- Unlimited short-circuit immunity
- Includes 2.5m RJ12 connection cable
Technical Specifications
| Parameter | Value |
|---|---|
| Max. number of P1 devices | 1 |
| Max. external meters | 4 |
| P1 reading interval | 10s - 12h |
| Max. number of P1 data values | 20 |
| Power supply | KNX 21-32VDC |
| Power consumption | 240 mW (at 24VDC) |
| Auxiliary power | Not required |
| Bus coupling | Integrated |
| Protection class | IP20 |
| Mounting | DIN rail (2 units, 35mm) |
| Storage temperature range | -20°C to +85°C |
| Operating temperature range | -20°C to +55°C |
| KNX connections | 2-pin terminal (red/black) |
| P1 connection | 6-pin RJ12 terminal |
| ETS database | KNX-GW-P1-REG.knxprod |
Notes
Compatible with Sagemcom S 211 (single-phase) and T 211 (three-phase) smart meters from Fluvius.
Supports smart meters with P1 port from DSMR 5.0.
Attention! Installation and mounting must be carried out by a qualified electrician. The user must ensure that all relevant safety regulations are followed.
Availability
In Belgium, the device is only available through Siconia meter.
