KNX WALTZ Touch+ Pad Base (KNX Secure)
€289,34 Incl. tax €311,14 Incl. tax. Out of stock, but available Manual
Specifications
Information
KNX WALTZ Touch+ Pad Base (KNX Secure)
The GVS KNX WALTZ Touch+ Pad Base is a high-quality metal KNX control unit featuring a modern 3-inch IPS touch display and 6 physical control areas. This version is the base unit only and is designed for use with a rocker set that must be ordered separately. The panel is ideal for modern smart home and smart building projects where design, operating comfort and secure KNX communication are essential.
The WALTZ Touch+ Pad combines touch operation with push-button control and supports switching, dimming, curtain and blind control, scenes, room temperature control, air conditioning, ventilation, audio control, status display and RGB, RGBW and CCT control. The unit also includes a built-in temperature and humidity sensor, a proximity sensor, logic functions and KNX Secure for secure communication within the KNX installation.
Available versions on this product page
- 88189428 – WALTZ Touch+ Pad – White aluminium base for white rockers (KNX Secure) – CHTFB-3.0/6.S.20 – EAN: 4260688189428
- 88189404 – WALTZ Touch+ Pad – Black aluminium base for black or anthracite rockers (KNX Secure) – CHTFB-3.0/6.S.21 – EAN: 4260688189404
- 88189435 – WALTZ Touch+ Pad – Silver aluminium base for silver rockers (KNX Secure) – CHTFB-3.0/6.S.22 – EAN: 4260688189435
- 88189411 – WALTZ Touch+ Pad – Champagne aluminium base for champagne rockers (KNX Secure) – CHTFB-3.0/6.S.24 – EAN: 4260688189411
Important product information
- This product is the base unit only
- Rocker sets must be ordered separately
- Metal version with premium finish
- Suitable for KNX installations in residential, commercial and high-end smart building projects
Functions and applications
- Lighting switching
- Dimming
- Curtain and blind control
- Scene control
- Room temperature control
- Air conditioning and ventilation control
- Audio control
- Status indication
- RGB, RGBW and colour temperature control (CCT)
- Logic functions and scene group functions
Technical specifications
- 3.0-inch colour IPS capacitive touchscreen
- Resolution: 854 x 480 pixels
- 6 configurable control areas / buttons
- Up to 6 function pages
- 2 external inputs for dry contact or 10K NTC sensor
- Built-in temperature and humidity sensor
- Proximity sensor
- Support for KNX Data Secure
- Powered via KNX bus
- Additional auxiliary power supply required: 12–30 V DC
- Dimensions: 86 x 115 x 34.7 mm
- Material: metal / aluminium finish
Why choose the GVS WALTZ Touch+ Pad Base?
This KNX control panel combines a premium look with extensive functionality. Thanks to the bright touchscreen, additional physical controls, built-in sensors, climate control features and KNX Secure support, it is an excellent choice for demanding KNX projects. Because the base and rocker sets are separate, the desired colour combination can easily be matched to the interior or switch design.
Related products

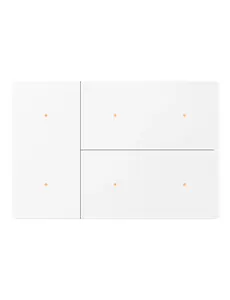

Rocker set for KNX WALTZ Touch+ Pad in aluminium. Available in multiple colours. Enables push-button control. Note: rocker set only, base unit must be ordered separately.
