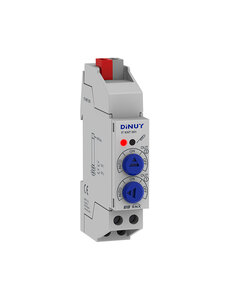

Dinuy IT KNT 001 2-channel switch or 1-channel blind/shutter actuator
€103,04 Excl. tax
€183,18 Excl. tax
€124,68 Incl. tax €221,65 Incl. tax. In stock (2)
€124,68 Incl. tax €221,65 Incl. tax. In stock (2)
2-channel Switching Actuator or 1-channel Blinds / Awnings Actuator.
Maximum switching capacity of up to 16A per channel, 2 voltage-free contacts. Read more
Specifications
Brand:
Dinuy
Article number:
IT KNT 001
EAN:
8422447013986
Availability:
In stock (2)
Delivery time:
1-3 working days
Information
2-channel Switching Actuator or 1-channel Blinds / Awnings Actuator. Maximum switching capacity of up to 16A per channel, 2 voltage-free contacts. Modular housing (1 module wide), DIN-rail mounting. Incorporates 2 potentiometers, each of which allows manual control in the form of a test, without the need for the Bus. It is possible to enable different functions: timer, preset, scenes, logic operations, forced operation ... Programming and commissioning using ETS3, or later versions.
| Technical characteristics IT KNT 001 | |
| Product reference | IT KNT 001 |
| Power Supply (V) | 230VCA |
| Frequency (Hz) | 50 |
| Consumption | 3,5mA |
| Output channels | 2 |
| Switching capacity (A) | 16 |
| Type of load | 2 Switch or 1 Blind channels |
| LED lamps load (W) | 400 |
| Incandescent and Halogen 230V (W) | 3000 |
| 12V Halogen with electronic transformer (W) | 3000 |
| Halogen lamps with ferromagnetic trafo (W | 500 |
| Motores (VA) | 700 |
| Maximum current input 1/10VDC (mA) | 0 |
| Maximum Number of Equipments | 0 |
| Contacts | Voltage-free |
| Binary/Analogic Inputs | 0 |
| Installation | DIN Rail |
| Module number | 1 |
| Control | KNX Bus |
| Programming by | ETS3 o posterior |
| Compatible with | KNX |
| Connection terminals | Captive Screws |
| Cable section (mm2) | 6 |
| Minimum Storage Temperature (ºC) (min) | -30 |
| Maximum Storage Temperature (ºC) (max) | 70 |
| Minimum Working Temperature (ºC) (min) | -5 |
| Maximum Working Temperature (ºC) (max) | 45 |
| Protection Degree | IP20 , UNE 20324 |
