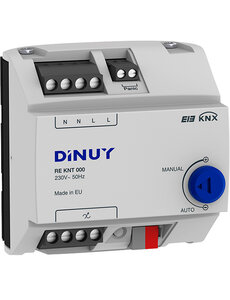

DINUY RE KNT 0001-universal LED dimmer RLC+LED dimactor 1 channel (DIN rail)
€156,96 Excl. tax
€279,04 Excl. tax
€189,92 Incl. tax €337,64 Incl. tax. In stock (2)
€189,92 Incl. tax €337,64 Incl. tax. In stock (2)
Universal dimmer with one channel for LED, halogen, and incandescent lamps. Suitable for leading or trailing edge, max. 1000W load. DIN-rail mounting. Read more
Specifications
Brand:
Dinuy
Article number:
RE KNT 000
EAN:
8422447013870
Availability:
In stock (2)
Delivery time:
Will be shipped within 1 to 2 working days.
Information
Universal Dimmer RLC+LED Dimming Actuator - 1 Channel
The universal dimmer RLC+LED is designed for various lighting applications, such as LED, halogen, and incandescent lamps. This device supports both leading and trailing edge dimming, making it suitable for a wide range of dimmable lighting. The dimmer provides a maximum load of 1000W and is installed via DIN-rail mounting.
Technical Specifications
- Power supply: 230V~ 50Hz
- KNX Power Supply: 21 ~ 32V DC (via KNX bus)
- Channels: 1
- Maximum Load:
- LED lamps (leading edge): 7W ~ 300W
- LED lamps (trailing edge): 7W ~ 1000W
- Incandescent and 230V halogen lamps: 1000W
- 12V halogen lamps with electronic transformer: 1000W
- 12V halogen lamps with ferromagnetic transformer: 800W
- Compact fluorescent lamps: 20W ~ 400W
- Installation: DIN-rail mounting, 5 modules wide
- Protection: Short-circuit protection, overload protection, overheating protection
- Control: Manual control via potentiometer or KNX bus
- Operating temperature: -5°C to +45°C
- Storage temperature: -30°C to +70°C
- Protection class: IP20, according to EN60529
- Certifications: KNX 2.0, EN60669-1, EN60669-2-1, EN60669-2-3
- Dimensions: 87.5 x 65mm (5 modules wide)
Installation and configuration require KNX programming via ETS3 or later. The device also features an anti-panic function that, when triggered, automatically sets the lighting to maximum brightness for safety purposes.
