COVER BER S1 IP20 PWH | forBerker S.1 RAL9010
€7,02 Excl. tax
€10,00 Excl. tax
€8,49 Incl. tax €12,10 Incl. tax. Out of stock, but available
€8,49 Incl. tax €12,10 Incl. tax. Out of stock, but available

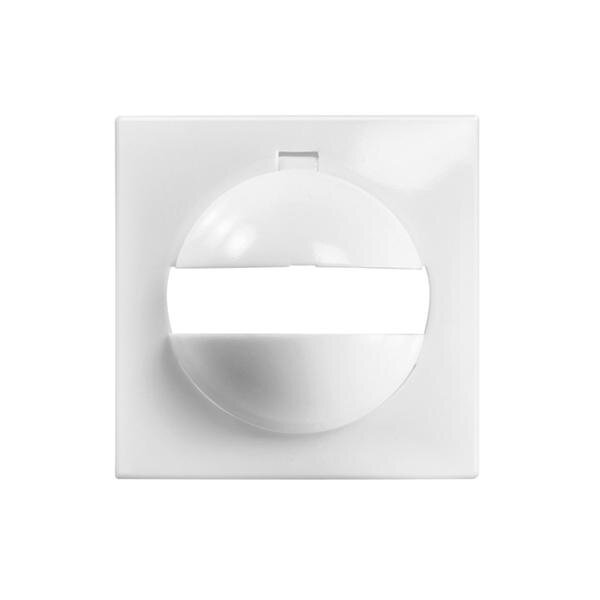

Cover frame for presence and motion detectors, compatible with Berker S.1. Includes cover shield for vertical masking. IP20, white (RAL9010), 55×55×27 mm. Read more
Specifications
Brand:
ESYLUX
Article number:
EP10427107
EAN:
4015120427107
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
ESYLUX COVER BER S1 IP20 PWH
Cover frame for Berker S.1
Article number: EP10427107
Application
The COVER BER S1 IP20 PWH is a wall-mount cover frame specifically developed for use with various ESYLUX presence and motion detectors as well as touch sensors. The design is compatible with the Berker S.1 switch series, allowing for seamless integration into existing installations with the same design line.
Functions
- Cover frame in white (RAL9010) for a uniform wall appearance
- Suitable for indoor use thanks to protection class IP20
- Compatible with the following ESYLUX components:
- MD 180i/R
- PD 180i/R
- MD/PD 180 slave
- PD-C180i/16 UC
- PD-C180i KNX
- PD-C180i KNX ECO
- Touch sensors
- Includes cover shield to limit vertical detection angle
- Lightweight design with mechanical robustness
Technical specifications
| Article number | EP10427107 |
|---|---|
| GTIN (EAN) | 4015120427107 |
| Device category | Cover / Frame |
| Color | White (RAL9010) |
| Protection rating | IP20 |

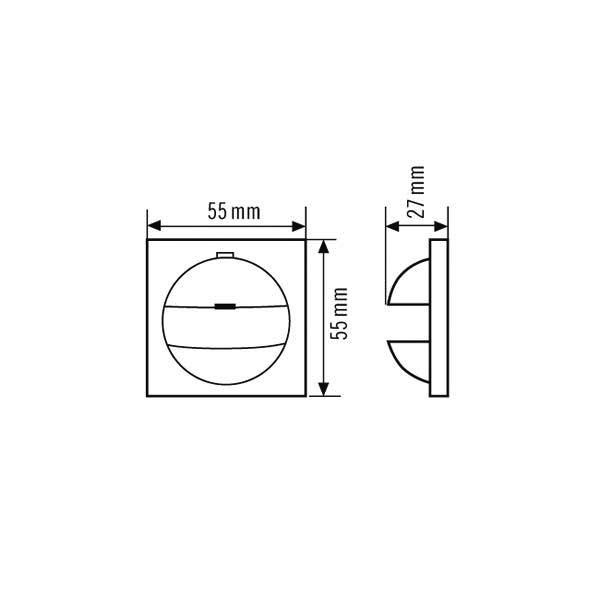

| Dimensions (L x W x H) | 55 mm x 55 mm x 27 mm |
| Weight | 10 g |
| Mounting type | Surface-mounted, wall installation |
| Compatible switch design | Berker S.1 |
Important notes
This cover is intended for indoor use only and must be used exclusively with compatible ESYLUX devices as listed above. The included cover shield must be correctly installed to precisely limit the vertical detection area and avoid false triggering. Proper mounting is essential for optimal function and seamless integration with the Berker S.1 system.
