ESYLUX PD-ATMO 360i/8 T KNX – Multisensor without humidity sensing
€189,43 Incl. tax €297,66 Incl. tax. Out of stock, but available
Specifications
Information

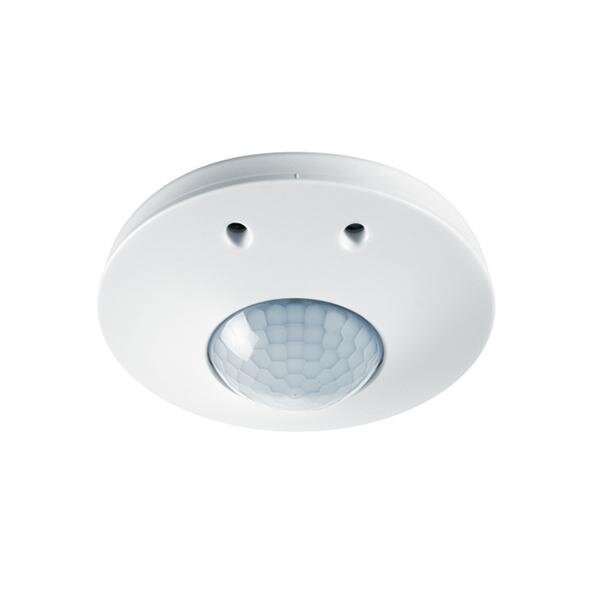

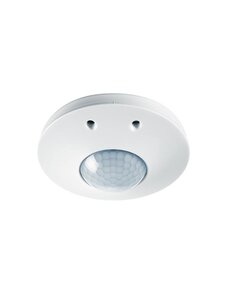

ESYLUX PD-ATMO 360i/8 T KNX
Multisensor Ceiling Presence Detector (without Humidity Sensor)
Part No.: EP10427213 | GTIN: 4015120427213
Product Description
The ESYLUX PD-ATMO 360i/8 T KNX is an advanced multisensor ceiling presence detector for KNX installations with integrated detection of presence, light, temperature and acoustics. The T version does not include a humidity sensor and is ideal where humidity measurement is not required. With daylight-dependent constant light control, 2 lighting channels and 1 HVAC channel, it enables energy-efficient and comfortable building automation. Includes night light function (7 colours), scene control, alarm and comprehensive KNX integration.
Applications
- Automatic control of lighting (switching/dimming) and HVAC via KNX
- Comfort and energy optimisation based on presence, light, temperature and sound
- Night/orientation lighting for safety and guidance
- Offices, meeting rooms, educational facilities and commercial buildings
Main Features
- 360° detection, range: diagonal Ø 8 m, frontal Ø 6 m, presence Ø 4 m (up to 50 m²)
- Daylight-dependent constant light control (5–2000 lx)
- 2 lighting channels (C1/C2: switch & dim) + 1 HVAC channel (C3: switch)
- Night/orientation light: off or 10–50% (2 values), run-on time 60 s…250 min
- Offset C2 to C1: −100 %…+100 %; adjustable sensitivity and timing parameters
- KNX functions: Alarm via object, twilight switch, brightness detection via object, light-dependent motion detection, scene telegram via object, master/slave, presence simulation, manual operation, cyclic sending
- Remote controllable; delivery includes lens mask
Technical Data
| Device category | Ceiling presence detector |

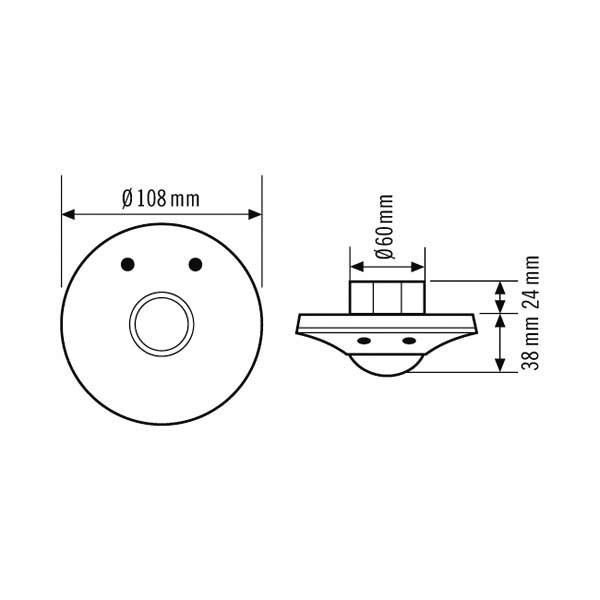

| Mounting | Flush-mounted in Ø 68 mm device box, ceiling installation |
| Cut-out size | Installation depth 24 mm, cut-out Ø 60 mm |
| Dimensions | Ø 108 mm, height/depth 38 mm |
| Weight | 126 g |
| Material | UV-stabilised polycarbonate |
| Colour | White, RAL 9010 |
| IP rating | IP20 |
| Operating temperature | +5 °C…+35 °C |
| Relative humidity | 5–93 %, non-condensing |
| Control system | KNX |
| Protection class | III |

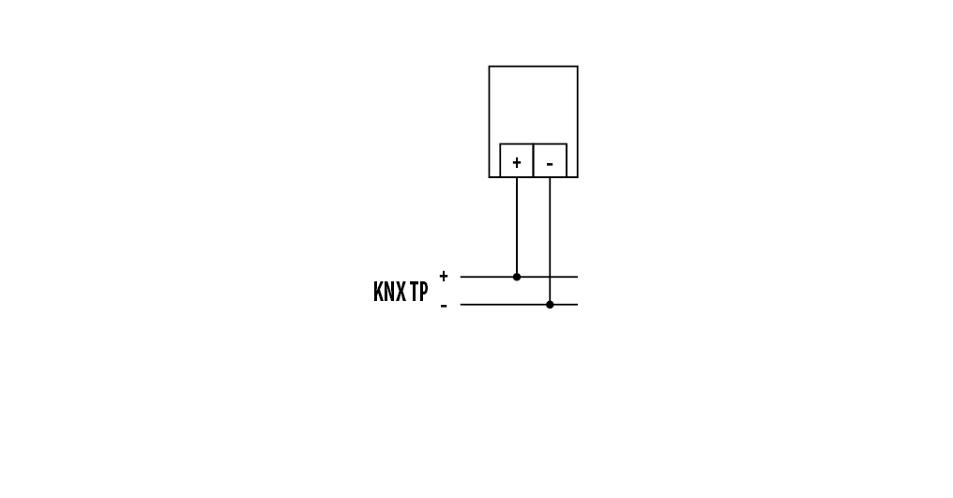

| Nominal voltage | 29–31 V DC (via KNX bus) |
| Power consumption | 0.2 W (standby < 0.3 W) |
| Current consumption | 6 mA |
| Detection angle | 360° |

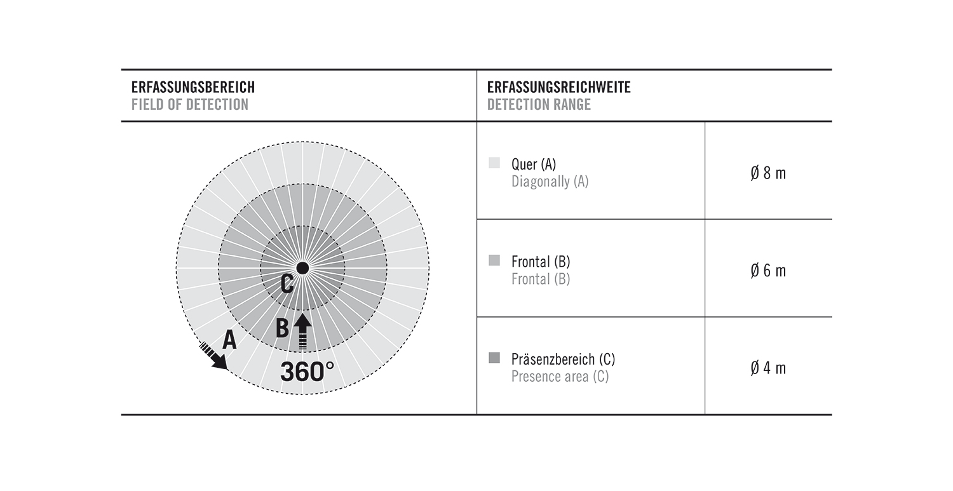

| Detection ranges | Diagonal Ø 8 m; frontal Ø 6 m; presence Ø 4 m |
| Brightness range | 5–2000 lx |
| Channels | 2× lighting (C1/C2), 1× HVAC (C3) |
| Pushbutton inputs | 2× lighting, 1× HVAC; slave input available |
| Delays (general) | Switch-on delay 30 s; switch-off delay 300 s (default) |
| Run-on time C1 | 30 s…720 min (step adjustable) |
| Run-on time C2 | 10 s…60 min (step adjustable) |
| HVAC C3 | Switching; switch-on delay 120 s…30 min; run-on time 60 s…720 min |
| Orientation light | 7 colours; 10–50 % dim level; run-on time 60 s…250 min |
| Compliance | CE, EAC, RoHS, WEEE |
| Warranty | 5 years |
Important Note
When installing, maintain a minimum distance of 5 metres from radio antennas (e.g. WiFi access points) to avoid interference. Position the detector according to the detection range and adjust sensitivity and time settings carefully for optimal performance.
Comparison: PD-ATMO 360i/8 A KNX vs PD-ATMO 360i/8 T KNX
| Feature | PD-ATMO 360i/8 A KNX Part No. EP10427206 |
PD-ATMO 360i/8 T KNX Part No. EP10427213 |
|---|---|---|
| Sensor technology | Presence, light, temperature, humidity, acoustics | Presence, light, temperature, acoustics |
| Humidity measurement | Yes (5–93 %, non-condensing, 10–90 % non-condensing) | No |
| Detection angle | 360° | |
| Max. detection range | Ø 8 m (diagonal), Ø 6 m (frontal), presence Ø 4 m | |
| Lighting channels | 2 (C1 and C2, switch and dim) | |
| HVAC channel | 1 (C3, switch) | |
| KNX functions | Presence simulation, alarm, twilight switch, brightness detection, light-dependent motion detection, scene telegram, night light function (7 colours), constant light control, master/slave function, manual operation | |
| Orientation light | 7 colours, 10–50% dim level, adjustable run-on time | |
| Weight | 127 g | 126 g |
| Colour | White, RAL 9010 | |
| Conclusion | Extended version with additional humidity sensor – ideal for climate and comfort control | More compact version without humidity sensor – suitable where humidity measurement is not needed |
