PD-C 360i/24 KNX UP – Ceiling Presence Detector

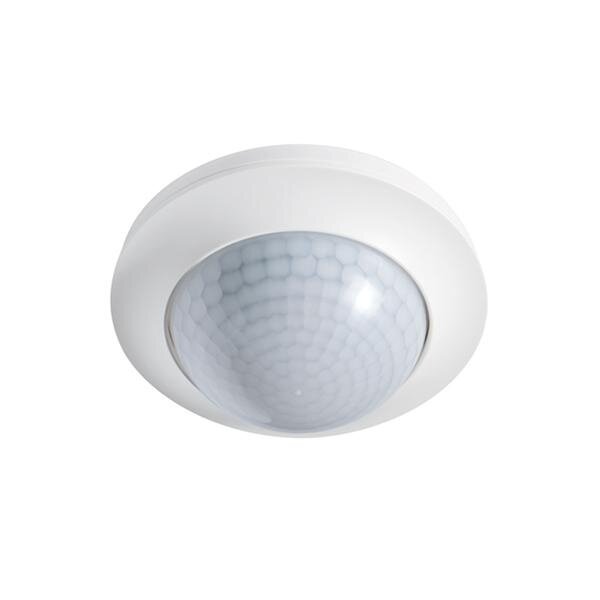

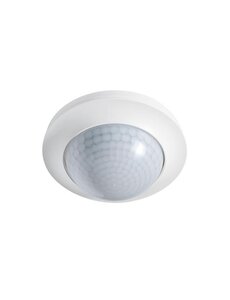

PD-C 360i/24 KNX UP
white RAL9010 — Art. No.: EP10427428

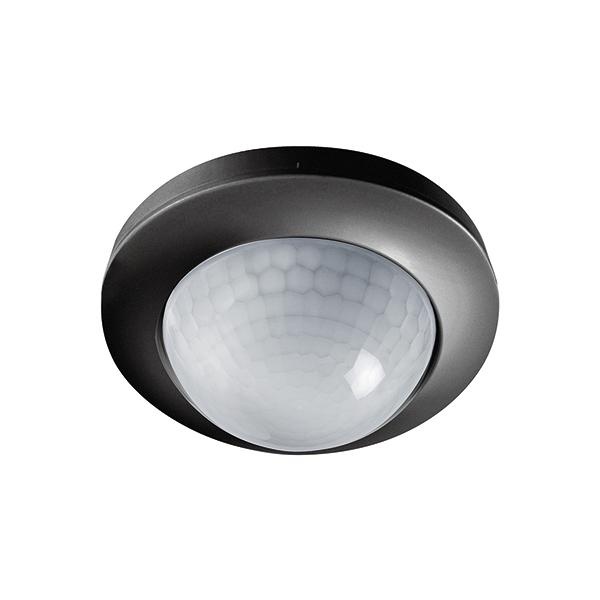

PD-C 360i/24 KNX UP BK
black RAL9005 — Art. No.: EP10427671
The PD-C 360i/24 KNX UP is a ceiling-mounted presence detector for KNX installations with 360° detection and up to Ø 24 m coverage. It features presence and motion detection, daylight-dependent constant light control (5–2000 lx), 2 lighting channels and 1 HVAC channel. Functions include manual operation, master/slave, night light, orientation light, offset adjustment (C2 to C1) and HVAC switching for flexible integration. Compared to the ECO version, this model offers dimming/control, orientation light and an HVAC channel.
Important Note
Maintain a minimum distance of 5 m between the detector and radio antennas (e.g. WiFi access points) to avoid interference.
Features & Functions

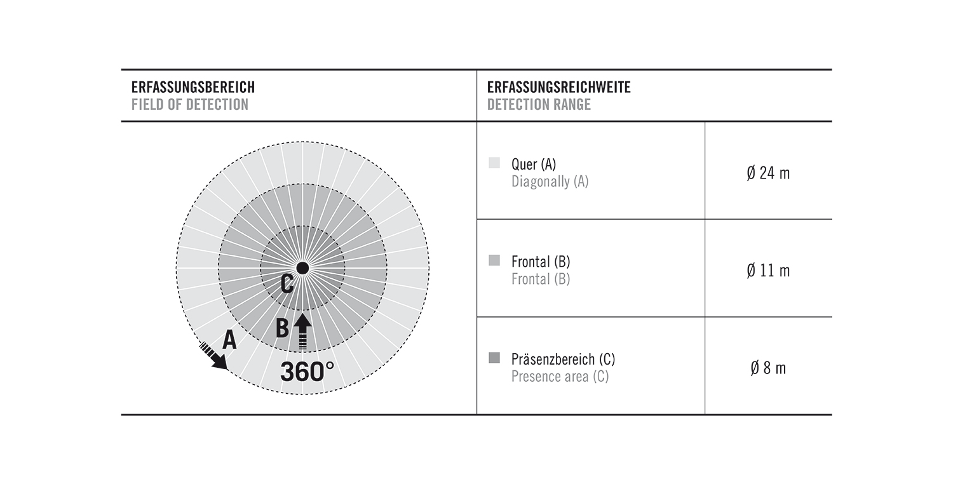

- 360° detection, diagonal Ø 24 m; frontal Ø 11 m; presence area Ø 8 m (up to 453 m²)
- Daylight-dependent constant light control (5–2000 lx)
- 2 lighting channels (switching & dimming/control) + 1 HVAC channel (switching)
- Modes: semi-automatic and fully automatic
- Manual operation, master/slave function, night light function
- Orientation light: off / 10–50 % (2 selectable values)
- Offset C2 to C1: −50 %…+50 %
- Adjustable sensitivity; cyclic transmission possible
- KNX inputs: manual light control, blocking, reset, slave
- KNX outputs: presence, status, light value, HVAC
- Remote controllable; delivery includes lens mask
Installation
- Installation location: ceiling

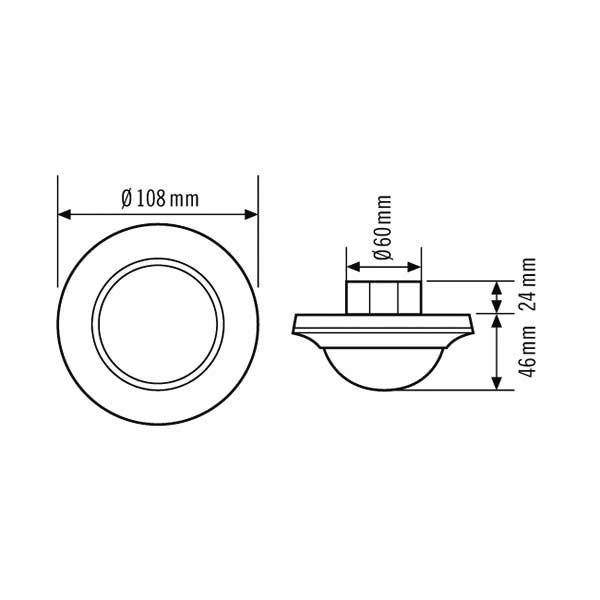

- Mounting type: flush-mounted in device box Ø 68 mm
- Installation dimensions: depth 24 mm, cut-out Ø 60 mm
- Recommended mounting height: 3 m (max. recommended 5 m)
Technical Data
| General | |
|---|---|
| Device category | Ceiling presence detector |
| Conformity | CE, EAC, RoHS, WEEE |
| Warranty | 5 years |
| Housing & Environment | |
| Dimensions | H/D 70 mm, Ø 108 mm |
| Weight | 128 g |
| Material | UV-stabilised polycarbonate |
| Protection rating | IP20 |
| Operating temperature | +5 °C…+50 °C |
| Relative humidity | 5–93 %, non-condensing |
| Colour variants | White RAL9010 (UP), Black RAL9005 (UP BK) |
| Electrical | |
| Control system | KNX |
| Protection class | III |
| Rated voltage | 29–31 V DC |
| Power consumption | 0.2 W |
| Current consumption | 6 mA |
| Sensors & Detection | |
| Detection angle | 360° |
| Detection ranges | Diagonal Ø 24 m; frontal Ø 11 m; presence Ø 8 m |
| Detection area | Up to 453 m² |
| Brightness range | 5–2000 lx |
| Channels & Control | |
| Number of lighting channels | 2 (C1 & C2) |
| C1/C2 function | Switching & dimming/control |
| Run-on time C1 | 30 s…720 min (stepwise) |
| Run-on time C2 | 10 s…60 min (stepwise) |
| Orientation light | Off / 10–50 % (2 values), run-on 60 s…250 min |
| Offset C2 to C1 | −50 %…+50 % |
| Number of HVAC channels | 1 (C3) |
| C3 (HVAC) function | Switching; switch-on delay 120 s…30 min; run-on 30 s…720 min |
| Pulse inputs | 2× lighting, 1× HVAC; slave input available |
| Delays general | Switch-on 30 s; switch-off 300 s (default) |
| Connection | Plug-in terminal; switching contact via bus system (KNX) |
Comparison with ECO version
| Feature | PD-C 360i/24 KNX UP | PD-C 360i/24 KNX ECO UP |
|---|---|---|
| Constant light control | Yes (5–2000 lx) | No |
| HVAC channel | 1 channel (switching) | No HVAC channel |
| Lighting channels | 2 (switching & dimming/control) | 2 (switching only) |
| Offset adjustment (C2 to C1) | Yes | No |
| Orientation light | Yes (10–50 %, 2 values) | No |
| Max. recommended mounting height | 5 m | 10 m |
