PD-FLAT 360i/8 ROUND – Flat series
€103,65 Incl. tax €171,82 Incl. tax. Out of stock, but available
Specifications
Information

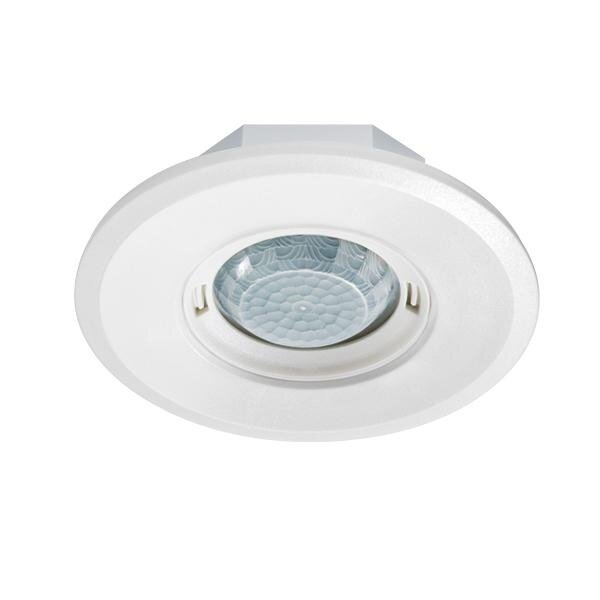

ESYLUX PD-FLAT 360i/8 ROUND KNX

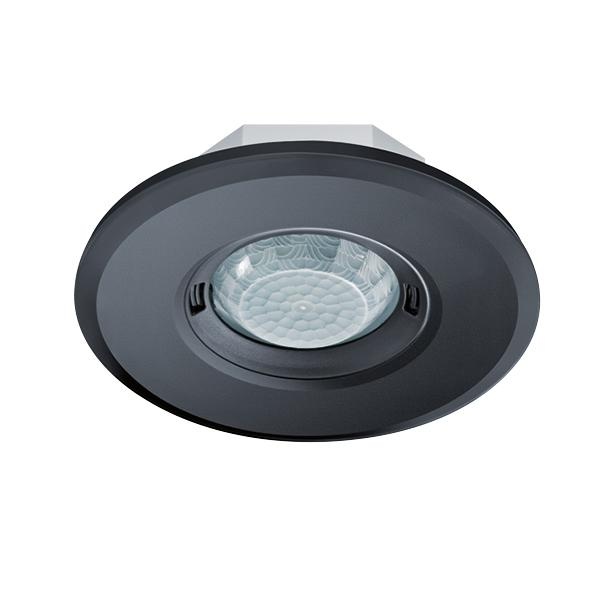

BLACK / WHITE – Ceiling Presence Detector for KNX
Article numbers: EP10451768 (black), EP10451706 (white)
Application
The PD-FLAT 360i/8 ROUND KNX is a high-performance ceiling-mounted presence detector for KNX systems. Its flat design and color options (black or white) make it ideal for modern interiors. It combines motion detection and daylight-dependent constant light control and is easily configured via the ESY pen and ESY app.
Functions
- Daylight-dependent constant light control
- Fully or semi-automatic operation
- Programming and control via ESY pen and ESY app
- KNX functions: alarm, twilight switch, brightness detection, light-based motion detection, standby mode, scene telegram via object
- Configurable orientation lighting per channel
- Manual light control via KNX input
- Master/slave operation and presence simulation
Technical Data
| Device category | Ceiling presence detector |
|---|---|
| Mounting type | Flush-mounted / junction box Ø 68 mm |

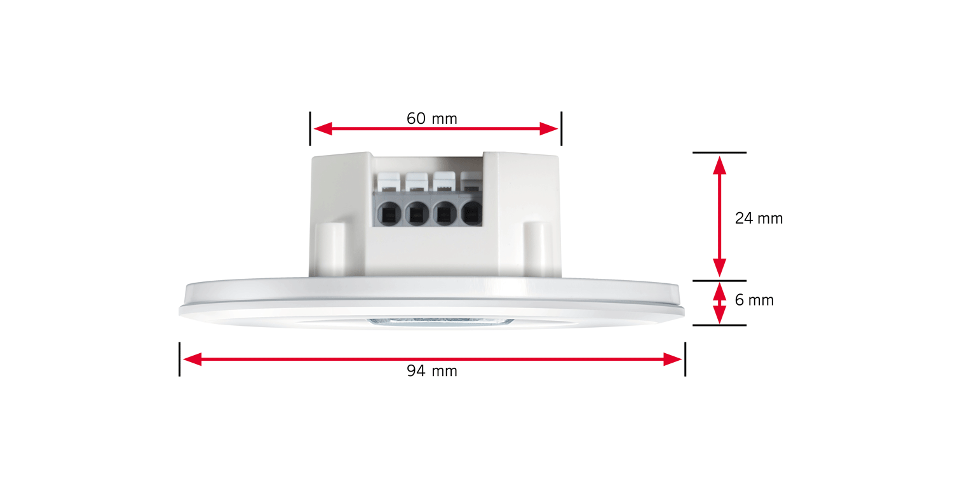

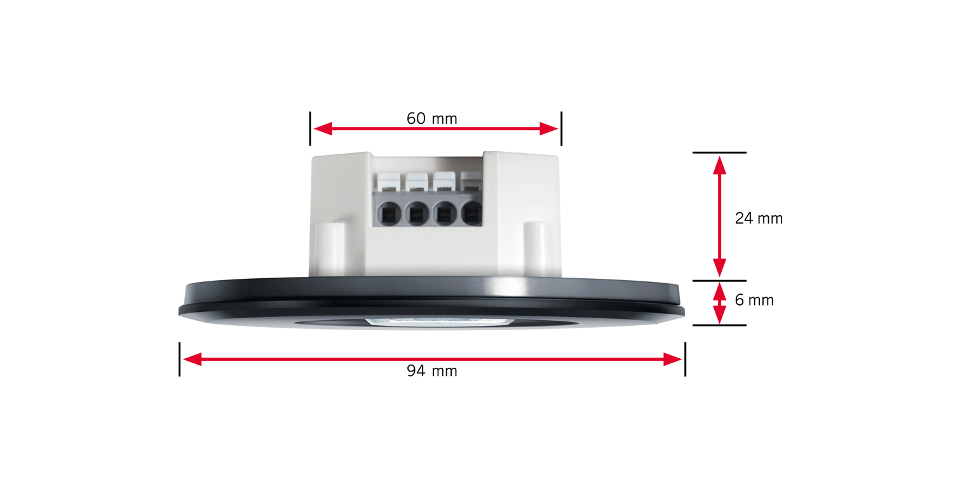

| Mounting dimensions | Depth: 24 mm, Ø 60 mm |

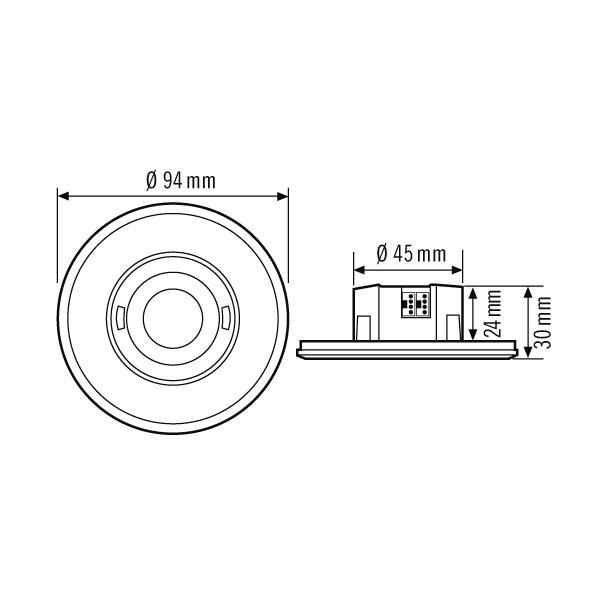

| Housing dimensions | Height: 30 mm, Ø 94 mm |
| Color | Black (RAL 9004) / White (RAL 9010) |
| Weight | 73 g |
| Material | UV-stabilised polycarbonate |
| Protection rating | IP20 |
| Compliance | CE, EAC, RoHS, WEEE |
| Warranty | 5 years |
| Nominal voltage | 29–31 V DC |
| Power consumption | 0.2 W |
| Current draw | 6 mA |
| Operating temperature | -25 °C to +50 °C |
| Humidity (non-condensing) | 5 – 93 % |

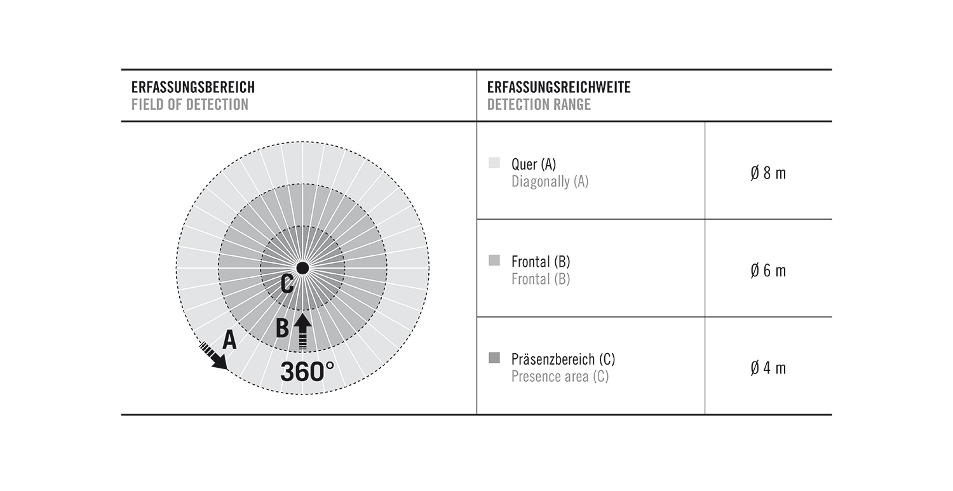

| Detection angle | 360° |
| Maximum detection area | up to 50 m² |
| Recommended installation height | 2.5 – 5 m |
| Brightness range | 3 – 1000 lx |
| Lighting channels | 2 (C1 and C2) |
| HVAC channels | 1 (C3) |
| Orientation lighting | Adjustable per channel (10–50%) |
| Slave input / switch input | Available |
Important Note
Please keep a minimum distance of 5 meters from radio antennas (e.g. Wi-Fi access points) to avoid interference. Suitable for indoor use only in dry environments. Designed for KNX building automation in offices, schools and public buildings.
