Glass Push Button II Lite 4-fold, Version NEUTRAL

91,65 Excl. tax €141,00 Excl. tax
€110,90 Incl. tax 170,61 Incl. tax.
Out of stock, but available
Unit price: €91,65
Depending on its parameterization the MDT Glass Push Button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or ext Read more

Specifications

Brand:
MDT
Article number:
BE-GTL40W.01
Availability:
Out of stock, but available

Information

Depending on its parameterization the MDT Glass Push Button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or external objects. The LED brightness is controllable via day/night or brightness object. In addition to switching, dimming, blinds, scenes or sending values, a lot more functions are available. The Glass Push Button II Lite has 4 integrated logic blocks and an slap function with additional switch channel.

>>> Design & Function - A perfect glass assortment (Brochure)

  • Production in Germany, certified according to ISO 9001
  • Comprehensive application
  • New multi touch function, sends up to 4 values/DPTs
    on the same or different objects
  • Innovative group control with long/extra long button press
  • 1 and 2 button operation for switching, dimming, shutters, values
  • Changing of values/scenes with up to 4 values
  • Operation with short/long button push and 2 objects
  • Slap function with additional switch channel
  • Two RGBW Status LED per button pair
  • LED brightness controllable via day/night or brightness object
  • 4 logic blocks
  • Installation in an installation box
  • Dimensions (W xH): 92mm x 92mm
  • Integrated bus coupling unit
  • 3 years warranty

There is a choice of the following variants:

Item code Description

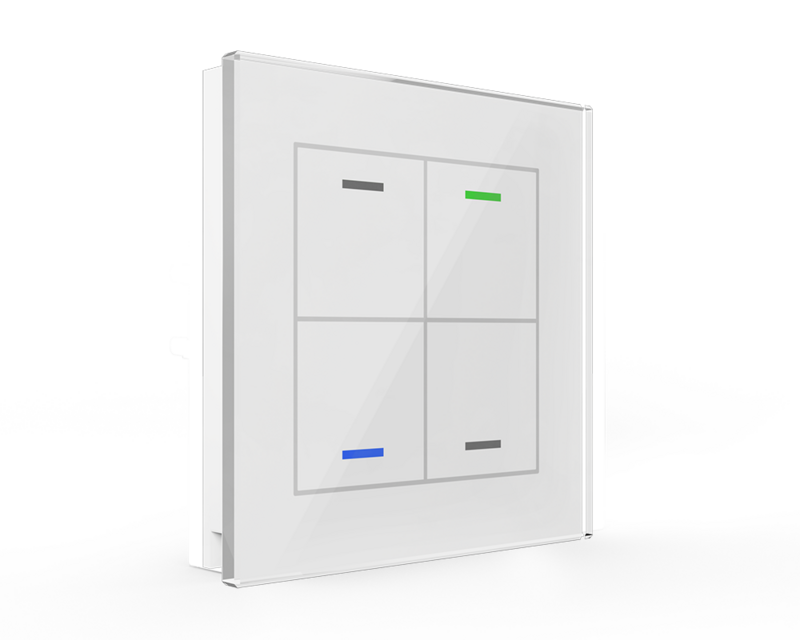

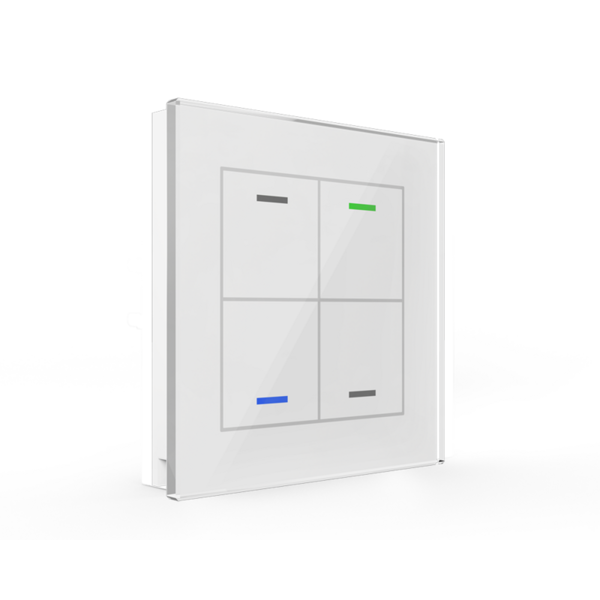

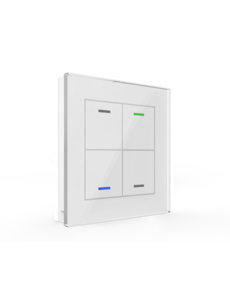

BE-GTL40W.01 Glass Push Button II Lite 4-fold, White, Version NEUTRAL

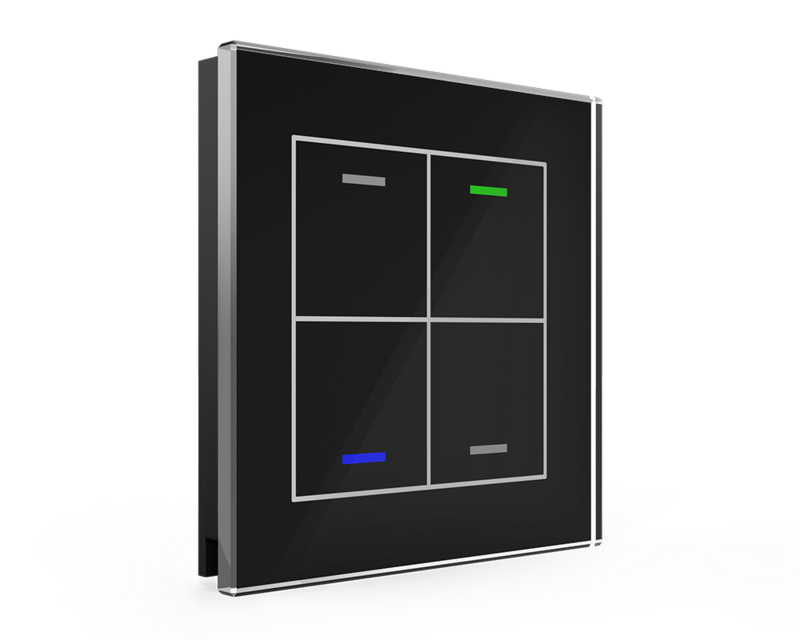

BE-GTL40S.01 Glass Push Button II Lite 4-fold, Black, Version NEUTRAL
