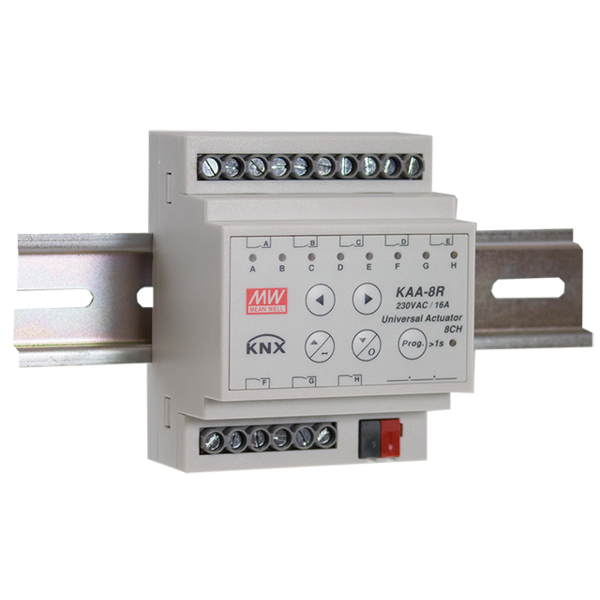

8-way switch actuator 10A per channel, 4 MDRC C-Load
8-way switch actuator 10A per channel, 4 MDRC Read more
Specifications
Brand:
Meanwell
Article number:
KAA-8R-10
EAN:
4711232760155
Availability:
In stock (1)
Delivery time:
1-3 working days
Information
The Mean Well KNX actuator is a 8 channel device with high quality independent latching relay for switch , shutter or any possible mixed applications. The compact design with 4 units (72 mm) wide modular makes it suitable for installation in the distribution board on 35mm mounting rails in the EIB/KNX applications.
8 channel actuator in a compact size
Suitable for various and mixed applications
For AX, C-load , capacitive and inductive of load
Program via ETS5.0 software
Manual control via push button
Programmable various time and scene function
| Kenmerk | Waarde |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | ac |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Output Current | 10A |
| Series | KNX |
