WAREMA Weather Station pro - Single unit (not KNX, replacement)
€860,31 Incl. tax €1.278,12 Incl. tax. Out of stock, but available
Specifications
Information

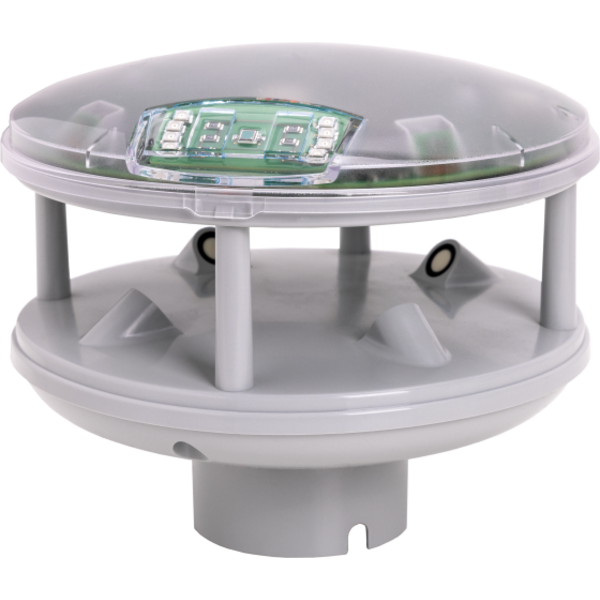

Warema Weather Station PRO – Single unit
Ultrasonic and optical sensor, GPS, for Omnexo systems
Art. no. 2047095
Product Description
The Warema Weather Station PRO records current meteorological data with the highest precision thanks to advanced ultrasonic and optical sensor technology. This accessory provides essential measurement values for Omnexo central units and is indispensable for safe, automated sun protection control.
The ultrasonic sensors determine wind direction, wind speed, and temperature with great accuracy. Optical sensors detect both rain and snow. As there are no moving parts, the weather station requires minimal maintenance and is highly reliable. An integrated GPS receiver supplies the central unit with correct location, date, and time information.
The measured data from the weather station, via Omnexo safety functions, protect your sun protection system from damage caused by wind, precipitation, or ice. This component can only be used in combination with a KNX secure Sensor Interface or as part of a complete Warema weather station system.
Main Product Features
- Accessory for Omnexo – not a standalone KNX device
- Measures: brightness, twilight, wind speed, wind direction, precipitation, GPS, outdoor temperature
- 4 digital photodiodes for brightness measurement from all directions (360°)
- Wind measurement via 4 ultrasonic sensors – no moving parts
- Optical detection of rain and snow
- Integrated GPS receiver for location, date, and time
- Communication via 4-wire bus cable
- Up to 16 weather stations PRO per Omnexo system possible
- For outdoor use (UV-resistant cabling required)
- Automatic link to Omnexo central safety functions
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Protection rating | IP 44 |
| Protection class | III |
| Mounting type | Pole or wall mounting |
| Brightness (photo) | 0 – 100 klx |
| Light coverage | 360° |
| Twilight | 0 – 1000 lx |
| Wind speed | 0 – 25 m/s |
| Wind direction | 0 – 360° |
| Precipitation monitoring | Yes |
| GPS | Yes |
| Outdoor temperature | -20 – 60 °C |
| Global radiation | - 1300 W/m² |
| Dimensions (W x H x D) | 145 x 120 x 145 mm |
Important Notes
- This is an accessory: only operable with KNX secure Sensor Interface or as part of a complete weather station system.
- Not suitable as a standalone KNX device.
- Use only suitable, UV-resistant outdoor cabling (e.g., 4x AWG 20 UL).
- Installation and parameterisation must be performed according to the Omnexo manual.
- Regular inspection of connections and functionality is recommended.
Can only be used in combination with the following components:
- 2065317 – 4251317212204 – KNX secure Sensor Interface REG – single unit
- 2065318 – 4251317212228 – KNX secure Sensor Interface AP – single unit
- 2064965 – 4251317212136 – KNX secure Weather Station PRO REG
- 2064966 – 4251317212143 – KNX secure Weather Station PRO AP
