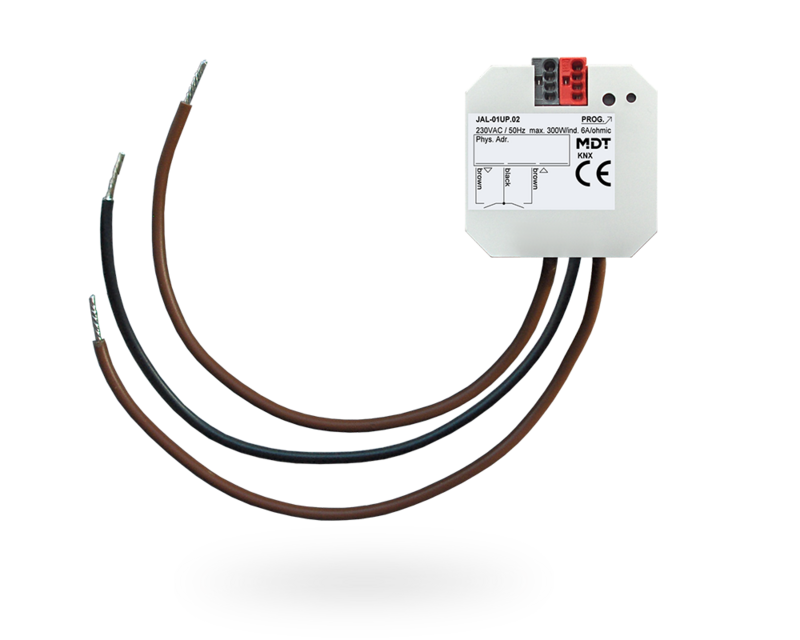

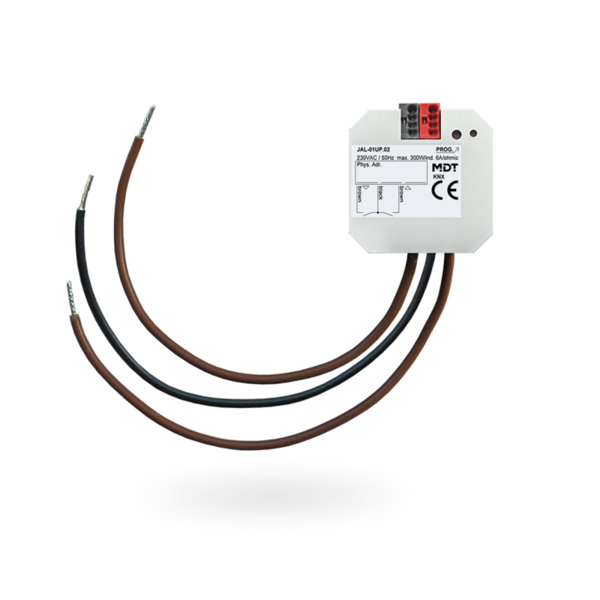

1 fold Shutter Actuator Flush mounted, 6A, 230VAC up to 300W

0 Review(s)

€74,10 Excl. tax €114,00 Excl. tax
€89,66 Incl. tax €137,94 Incl. tax. Not in stock in our warehouse, but available to order.

Unit price: €74,10 / Piece

Flush-mounted JAL shutter actuator, 1-channel, controls 230VAC motors up to 300W, for KNX systems. Supports manual operation, ventilation function, and automatic sun shading. Easy installation with common L-connection. Read more

Specifications

Brand:

MDT

Article number:

JAL-01UP.02

EAN:

4251916130589

Availability:

Not in stock in our warehouse, but available to order.

Delivery time:

Dispatched within approximately 10 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

JAL Shutter Actuator 1-fold, Flush-Mounted

The flush-mounted version of the MDT Shutter Actuator JAL is designed for decentralized installation on shutter or blind motors. The actuator supports manual operation and offers features such as automatic sun shading and ventilation. Suitable for KNX systems, with easy installation thanks to the common L-connection.

Technical Specifications:

Channels: 1
Switching capacity per channel: 6A, 230VAC
Maximum load per channel: 300W (1 motor)
Output life expectancy (mechanical): 1,000,000 operations
KNX Interface: TP-256 with support for long frames in ETS5
Operating temperature range: 0 to +45°C
Protection class: IP 20
Dimensions: 41mm x 41mm x 22mm (flush-mounted)

Note: The JAL-01UP.02 does not support automatic sun position calculation and behavior after power failure. It is recommended to use the ETS software for project design and commissioning.
