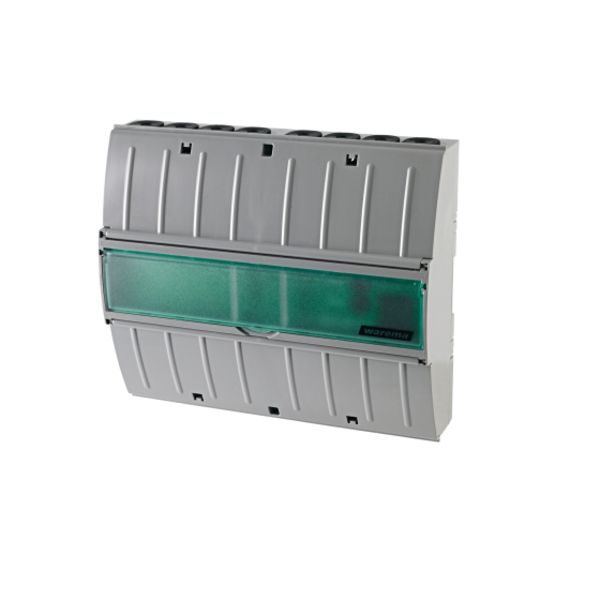

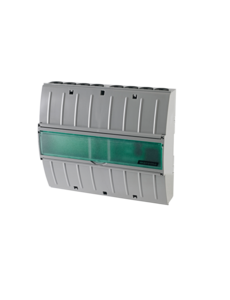

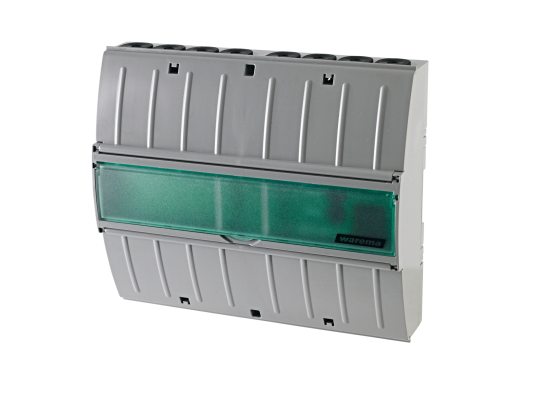

KNX Shading Actuator SA 16M230.32 SMI AP | 16xSMI, 32 inputs

Name: WAREMA KNX Shading Actuator SA 16M230.32 SMI AP | 16xSMI, 32 inputs
Brand: WAREMA
Price: 429.98 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€429,98 Excl. tax €638,80 Excl. tax
€520,28 Incl. tax €772,95 Incl. tax. Out of stock, but available

Unit price: €429,98 / Piece

KNX SMI shading actuator for up to 16 drives, 32 inputs, SMI Standard 3.0, Bluetooth LE, individual group control, flexible mounting and status objects. Read more

Specifications

Brand:

WAREMA

Article number:

2022210

EAN:

4251317206081

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Warema website

KNX Shading Actuator SA 16M230.32 SMI AP

16-way SMI actuator, 32 binary inputs | Surface-mounted

Art. No.: 2022210

Comprehensive Product Description

The KNX Shading Actuator SA 16M230.32 SMI AP is designed for individual control of up to 16 SMI or SMI LoVo drives in up to 16 groups, ideal for large and flexible building automation. This advanced device is SMI Standard 3.0 certified and features 32 integrated binary inputs, comprehensive status objects, and extensive configuration options for maximum precision. Manual override is possible via buttons and Bluetooth LE, with additional support through the ETS DCA app and the KNX actuator app for smartphones.

Main Features

Individual control and parameterization of up to 16 SMI drives in 16 groups
Certified SMI Standard 3.0
Up to 32 integrated binary inputs (for switches, sensors, blind control, scenes, etc.)
Preconfigured parameters for fast commissioning
Comprehensive status objects for precise KNX bus monitoring
Manual control via buttons and Bluetooth LE (priority/override possible)
Manual control limitation possible (e.g. cut-off restriction)
Output type preselection for various shading products
Support for ZIP guidance and obstacle detection
SMI drives can be switched off via integrated relay to prevent permanent standby power consumption
Replaceable glass fuses for cable protection per 4 motors
ETS DCA app and KNX app for easy commissioning and diagnostics
Surface-mounted (AP), robust housing

Technical Specifications

Operating voltage	230 V AC
SMI interface	Up to 16 x 230 V AC SMI drives
Groups	Up to 16 groups
Binary inputs	32 (for switching, dimming, blinds, scenes, free analysis)
Switching capacity per output	900 VA (protected: 4 drives), 3600 VA (unprotected: 16 drives)
Connection type	Plug-in terminal
Protection class	IP 30
Insulation class	Class I
Radio interface	Bluetooth LE
Mounting type	Surface-mounted (AP)
Dimensions (W x H x D)	210 x 180 x 60 mm
EAN code	4251317206081

Additional Equipment & Functions

Comprehensive status objects for KNX bus communication
Quick coupling and parameterization thanks to preconfigured settings
Manual control has priority over automatic functions (override)
Relay completely switches off SMI motors when inactive (no standby power consumption)
Replaceable fuses per 4 motors for optimum protection

Downloads and Software

ETS DCA application & documentation (download via manufacturer)
Manuals and technical data sheets available

Important Note

Note: Use only with suitable SMI or SMI LoVo shading motors and always follow the manufacturer's installation instructions to avoid damage. Manual operation via Bluetooth LE works only within device range.
