Leakage sensor
€110,25 Excl. tax
€147,00 Excl. tax
€133,40 Incl. tax €177,87 Incl. tax. Out of stock, but available
€133,40 Incl. tax €177,87 Incl. tax. Out of stock, but available
Water leakage sensor for floor installation. Detects leaks with optical alarms and KNX integration. Ideal for homes, IP66, 1.4m cable, ETS5/6 required. Read more
Specifications
Brand:
MDT
Article number:
SCN-LSEN1.01
EAN:
4251916112271
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

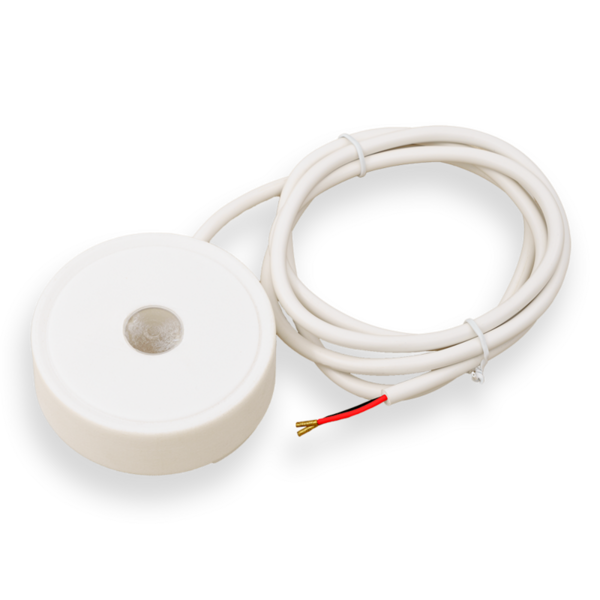

MDT Leakage Sensor for Floor Installation
The MDT Leakage Sensor is an advanced water leakage sensor designed to detect water leaks and floods in residential buildings. This device is specifically intended for installation on indoor floors and offers reliable protection against water damage through electrolytic AC voltage measurement.
Main Features:
- Detects leaks of conductive liquids using electrolytic AC voltage measurement.
- Integrated optical alarm in the form of a red LED for immediate warnings.
- Sends alarm messages via the KNX bus for automated control and reporting.
- Optional reset function via object or automatic reset.
- Adjustable switch on/off delay.
Technical Specifications:
- Protection classification: IP66
- Connection cable: 1.4 meters
- Dimensions: Ø 70 mm x 24 mm
- Installation type: Floor mounting
- Power supply: KNX Bus
- ETS5/6 software required for project design and commissioning
Note: The MDT Leakage Sensor is intended for indoor use only and must be installed on level floors near potential water hazards such as boilers, washing machines, or dishwashers.
