Room Temperature Controller Smart 63 | Room temp. ctrl.

0 Review(s)

€126,00 Excl. tax €168,00 Excl. tax
€152,46 Incl. tax €203,28 Incl. tax. Out of stock, but available

Unit price: €126,00 / Piece

The smart room thermostat controls indoor temperature with an integrated temperature and humidity sensor and 4 binary inputs for contact connections. Equipped with color display and fits 63 mm systems. Read more

Specifications

Brand:

MDT

Article number:

SCN-RTR63S.01

EAN:

4251916111762

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

MDT Room Temperature Controller Smart 63

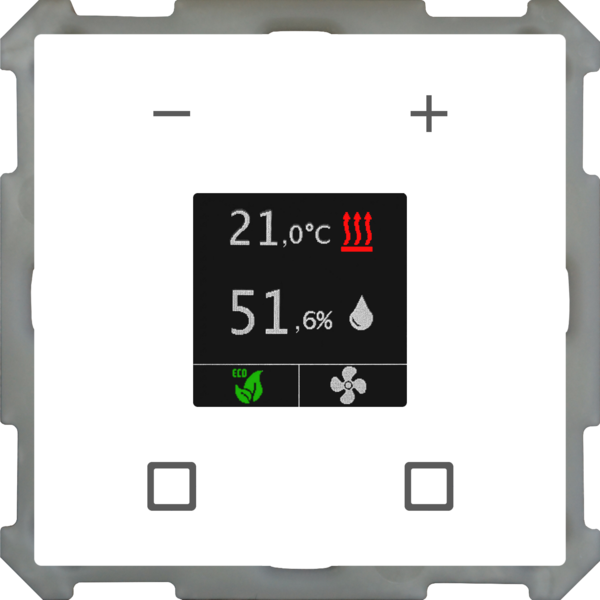

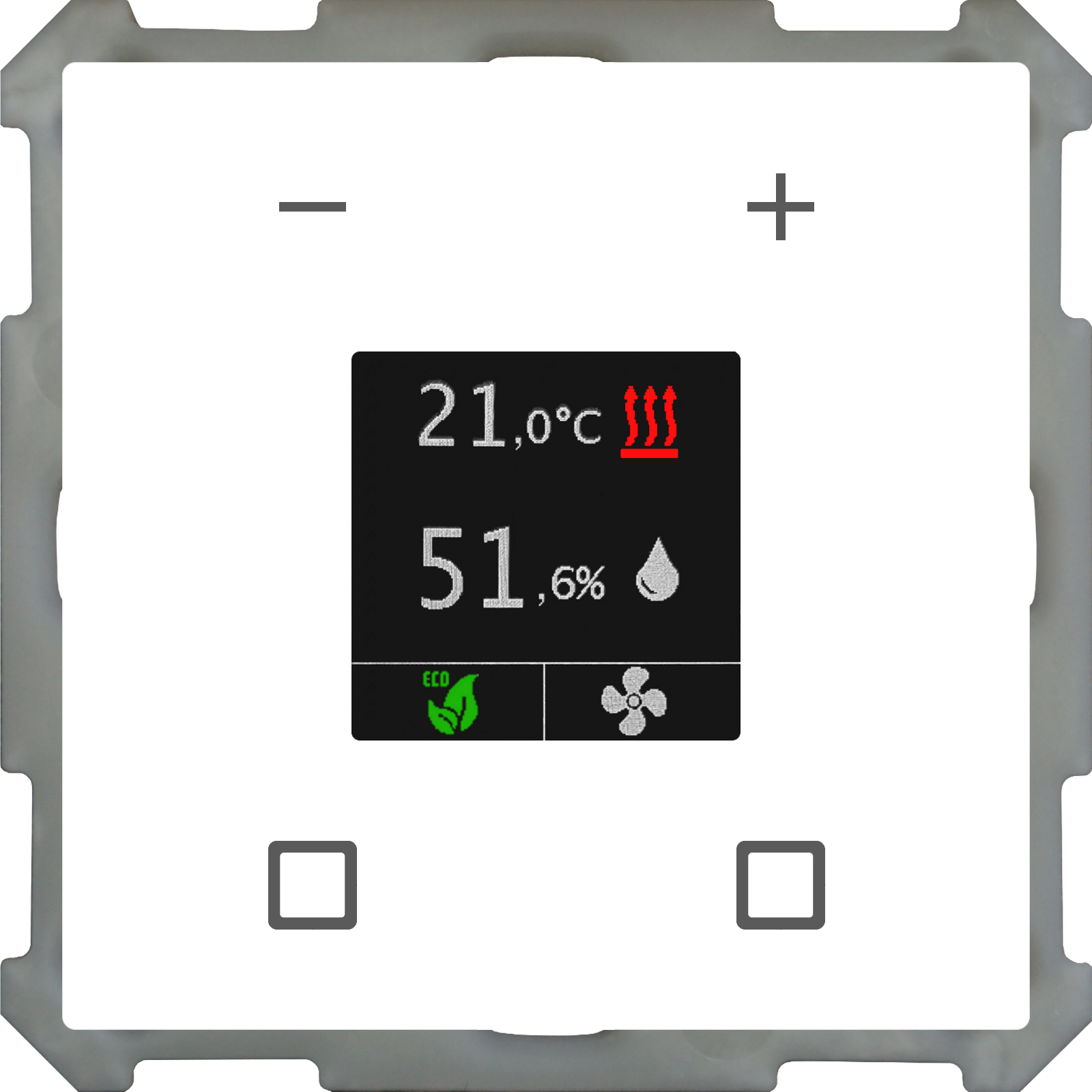

The MDT Room Temperature Controller Smart 63 is designed for regulating indoor temperature. Equipped with an integrated temperature and humidity sensor, the device provides accurate temperature control in combination with heating or switch actuators, such as electrothermal or motorized KNX actuators.

Suitable for: 63 mm systems (e.g. Busch-Jaeger future linear, solo, carat, Busch-axcent)
Color display: Yes, with adjustable background color and brightness
Temperature range: -10°C to +50°C
Humidity range: 0-95% relative humidity (short-term), 20-80% relative humidity (permanent)
Control: Selectable temperature controller (PI, PWM, two-position)
Binary inputs: 4, for potential-free contacts (e.g. window contacts, buttons)
Bus connection: KNX interface TP-256, ETS 5 required for project design and commissioning
Installation depth: 12 mm in an installation box
Internal contact voltage: 3.3VDC internal
Maximum cable length: 10 meters for input cables
Power supply: Via KNX bus, typical consumption <0.3W
Operating temperature range: 0°C to +45°C
Protection class: IP20
Installation: For fixed installation in dry rooms, recommended installation height: 1.60 meters
