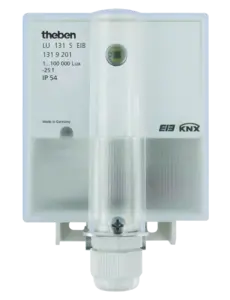

LUNA 131 S KNX licht- en temperatuursensor buiten IP54
€211,46 Excl. tax
€367,76 Excl. tax
€255,87 Incl. tax €444,99 Incl. tax. Out of stock, but available
€255,87 Incl. tax €444,99 Incl. tax. Out of stock, but available
Outdoor sensor for measuring light and temperature. Includes 5 configurable channels for automatic control of shading, lighting and temperature. Read more
Specifications
Brand:
Theben
Article number:
1319201
EAN:
4003468131039
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

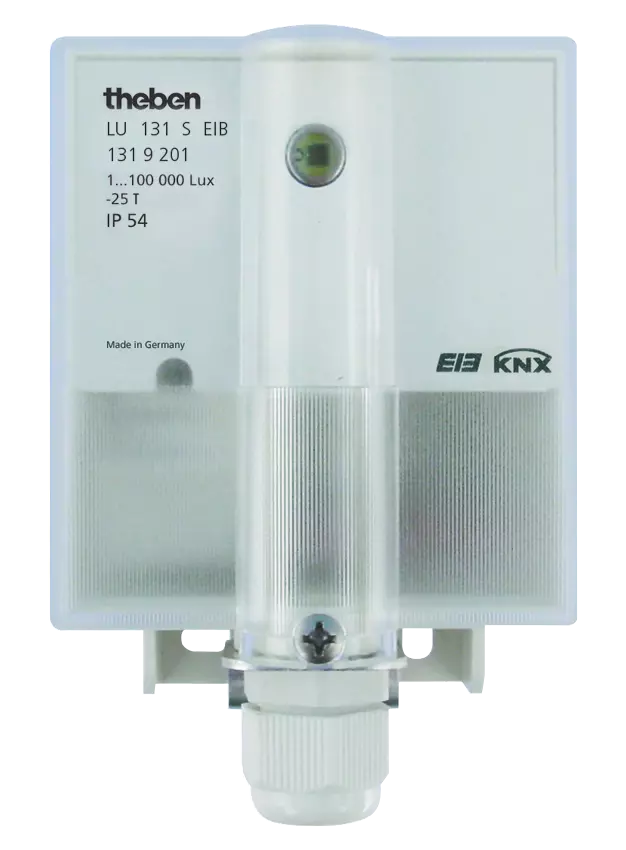

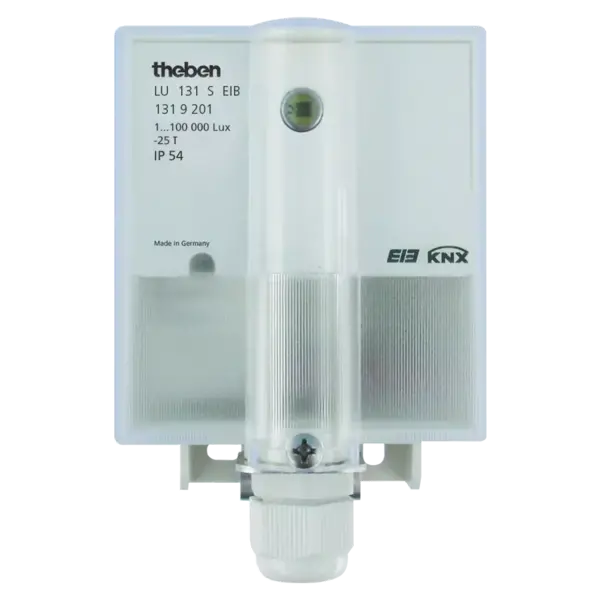

LUNA 131 S KNX Light and Temperature Sensor
Item No. 1319201
Application
The LUNA 131 S KNX is a versatile outdoor sensor for measuring light and temperature in KNX-based building automation systems. It supports automatic control of shading, lighting, and climate. With five freely configurable channels, it enables smart linkage of brightness and temperature values. The IP54-rated housing makes it ideal for long-term outdoor use.
Features
- Light and temperature sensor for outdoor use
- For brightness- and temperature-based KNX control
- 5 freely configurable channels:
- 1 shading channel with automatic control for blinds, awnings, and shutters
- 4 universal channels for combining light and temperature values
- Learning object for brightness threshold configuration
- Light measurement range: 1 to 100,000 lux
- Adjustable temperature range: -20 °C to +55 °C
- Weatherproof housing (IP54)
- Simple wall mounting
Technical data
| Operating voltage (KNX): | Bus voltage, ≤ 5 mA |
| Light measurement range: | 1 – 100,000 lux |
| Adjustable temperature range: | -20 °C to +55 °C |
| Ambient temperature: | -25 °C to +55 °C |
| Mounting: | Wall mounting |
| Connection type: | KNX bus terminal |
| Protection rating: | IP54 |
Important notes
- Exclusively intended for outdoor use.
- Install in an open, unshaded location for optimal performance.
- The shading channel is ideal for controlling KNX blinds and awnings.
- Universal channels allow flexible lighting and climate control.
- Installation by a certified KNX technician is recommended.
