thePixa P360 KNX Set AP WH – Optical sensor & PIR unit, 230V surface
€327,00 Incl. tax €568,70 Incl. tax. Out of stock, but available
Specifications
Information

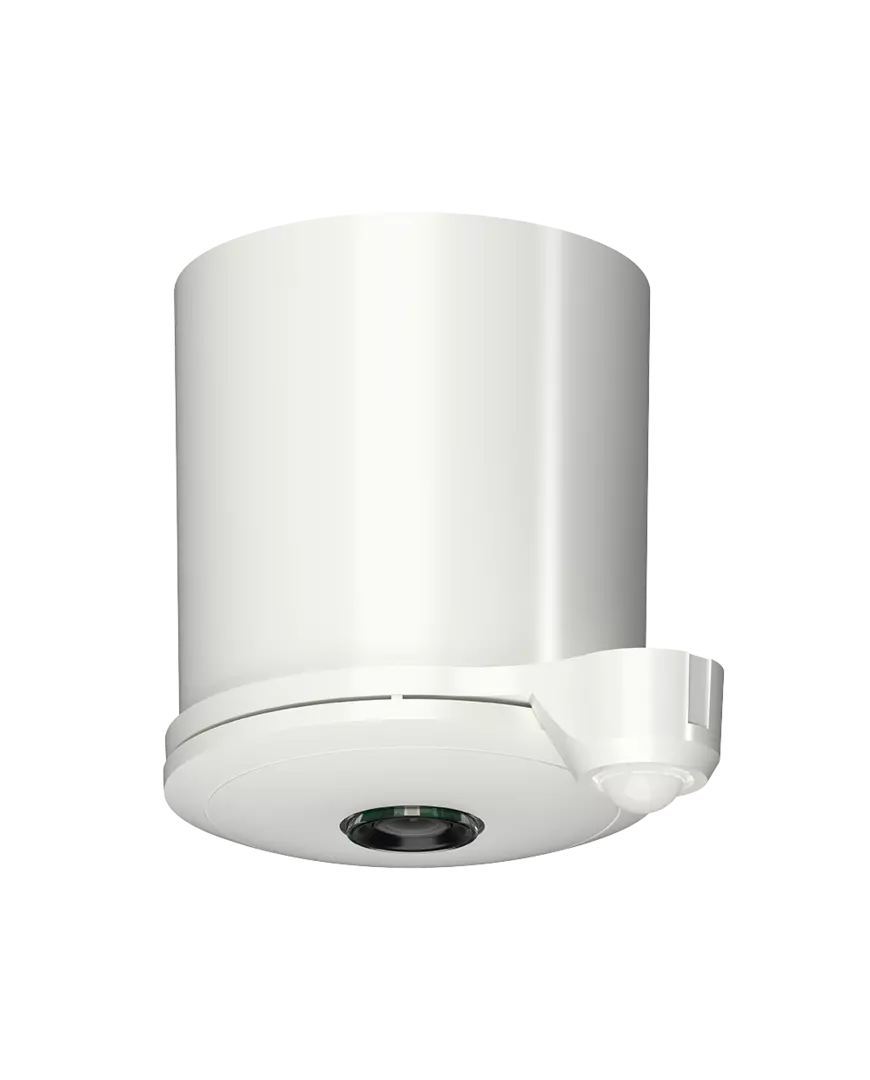

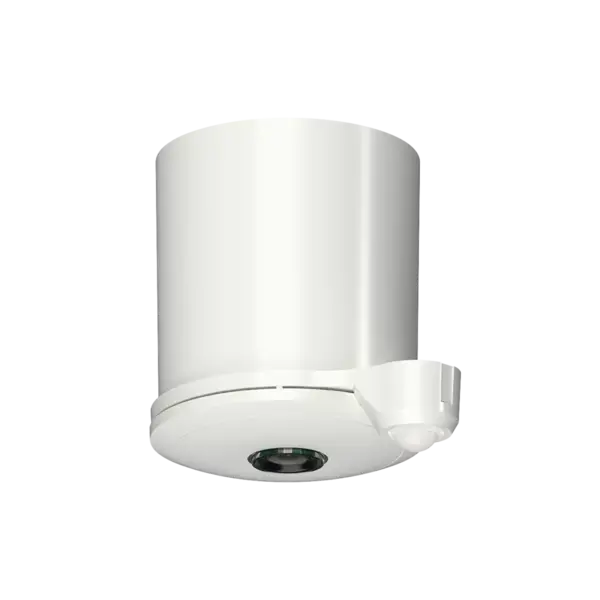

thePixa P360 KNX Set AP WH
Optical sensor & PIR unit for ceiling surface mounting
Art. No.: 2269301
Product Description
The thePixa P360 KNX Set AP WH is an advanced KNX optical sensor set for indoor ceiling surface mounting. The set includes an optical sensor, a PIR unit, and a surface frame for quick and tidy installation on the ceiling. Thanks to its rectangular detection area (11.0 x 15.5 m, up to 171 m² at 4.5 m mounting height), the system offers optimal detection and automatic control of lighting and HVAC in offices, schools, and public buildings.
- KNX Data Secure for protected data transmission
- Set includes optical sensor, PIR unit, and surface frame
- Rectangular detection area: 11.0 x 15.5 m (at 4.5 m mounting height)
- Automatic presence and light-dependent control of lighting and climate
- Light measurement comparison via thePixa Plug app
- Adjustable sensor sensitivity
- Distinguishes between motion and presence
- Parallel operation of multiple sensors possible (Master/Slave or Master/Master)
- Test mode for function and detection area check via app
- Integrated temperature sensor
- Ceiling surface mounting with supplied surface frame
- Occupancy rate and density output via telegram
Technical Specifications
| Operating voltage | 230 V AC - 240 V AC |
|---|---|
| Frequency | 50 Hz |
| Standby consumption | ≤ ... (see datasheet) |
| Minimum installation height | 2.5 m |
| Detection area | Rectangular, 11.0 x 15.5 m (max. 171 m² at 4.5 m height) |
| Light measurement range | 5 - 3000 lux |

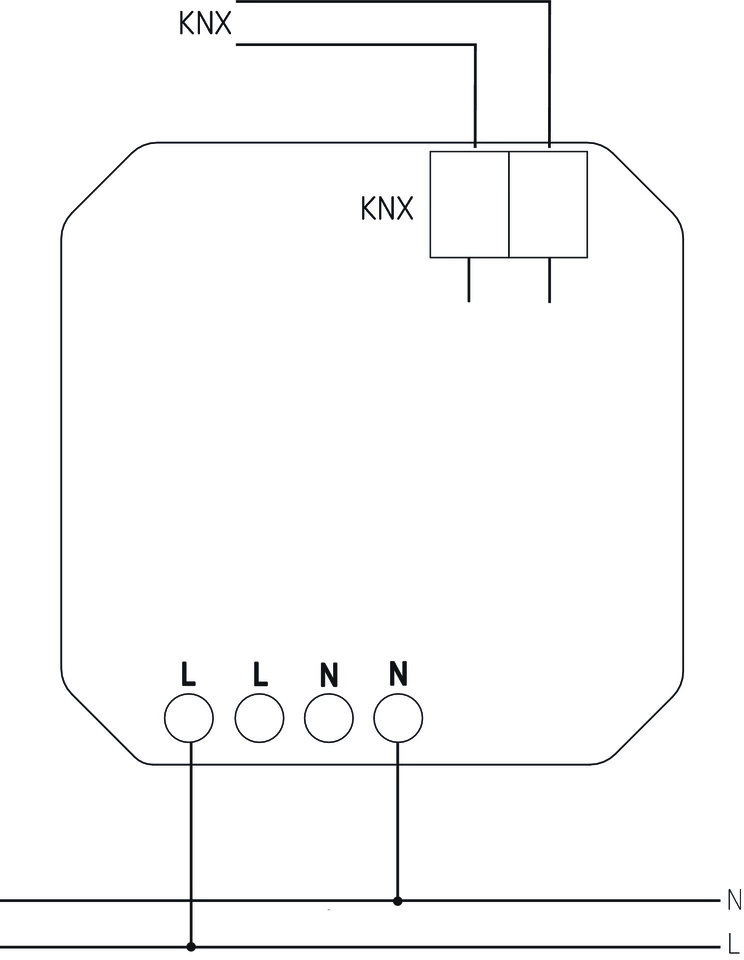

| Connection type | Screw terminals, KNX bus terminal |
| Mounting | Ceiling surface mounting with surface frame |
| Light follow-up time | 0 s - 60 min |
| Operating temperature | -5°C to +50°C |
| Protection class | IP20 (for indoor use only) |
Applications
- Offices and meeting rooms
- Schools and educational institutions
- Public buildings
- Corridors, reception and waiting areas
- Other utility spaces
Important Notes
- Suitable for ceiling surface mounting indoors only.
- KNX Data Secure ensures secure data transmission within the KNX network.
- Full functionality is only guaranteed with KNX installation and app configuration.
- Always install according to the manual for correct operation and long service life.
