FCA 1 KNX | Fan Coil Actuator | For 2- and 4-pipe systems
€186,93 Excl. tax
€325,09 Excl. tax
€226,19 Incl. tax €393,36 Incl. tax. Out of stock, but available
€226,19 Incl. tax €393,36 Incl. tax. Out of stock, but available
Fan coil actuator for 2- and 4-pipe systems with 3 fan speeds, relay output, inputs for window contact and condensate monitoring, LED status, manual control, and outdoor temperature adjustment. Read more
Specifications
Brand:
Theben
Article number:
4920200
EAN:
4003468492000
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information

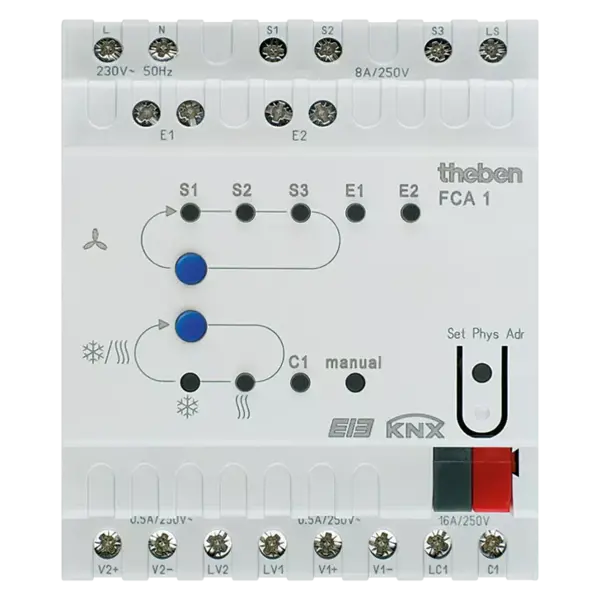

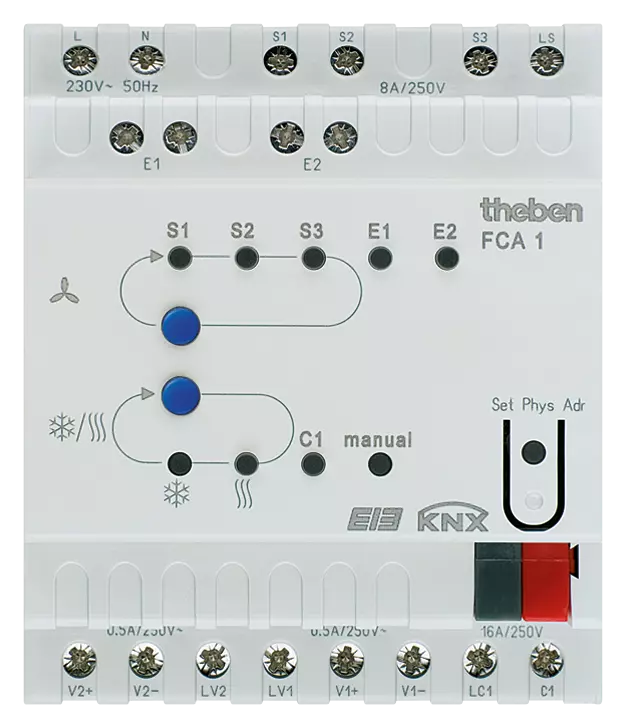

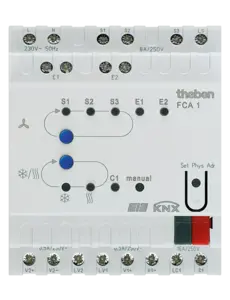

Theben FCA 1 KNX Fan Coil Actuator
Article number: 4920200
Application
The FCA 1 KNX by Theben is a versatile fan coil actuator for controlling fan coil units in buildings. Suitable for 2- and 4-pipe systems, this device provides precise climate control with multiple fan speed levels, manual operation, and advanced monitoring functions.
Functions
- Fan coil actuator for 2- and 4-pipe systems
- Supports up to three fan speed levels
- Suitable for 2-point and 3-point valves
- Additional relay for electric heating or cooling coils
- Potential-free input for window contact or external temperature sensor
- Potential-free input for condensate monitoring
- Operating status display via 9 LEDs
- Manual control of fan speeds and heating/cooling mode on the device
- Cooling setpoint adjustment based on outdoor temperature
- Configurable potential-free switching contact for heating or cooling coil
- Equipped with emergency operating mode
Technical Data
| KNX operating voltage | Via KNX bus, ≤10 mA |
| Power supply | 220–230 V AC, 50–60 Hz |
| Standby power consumption | 1.9 W |

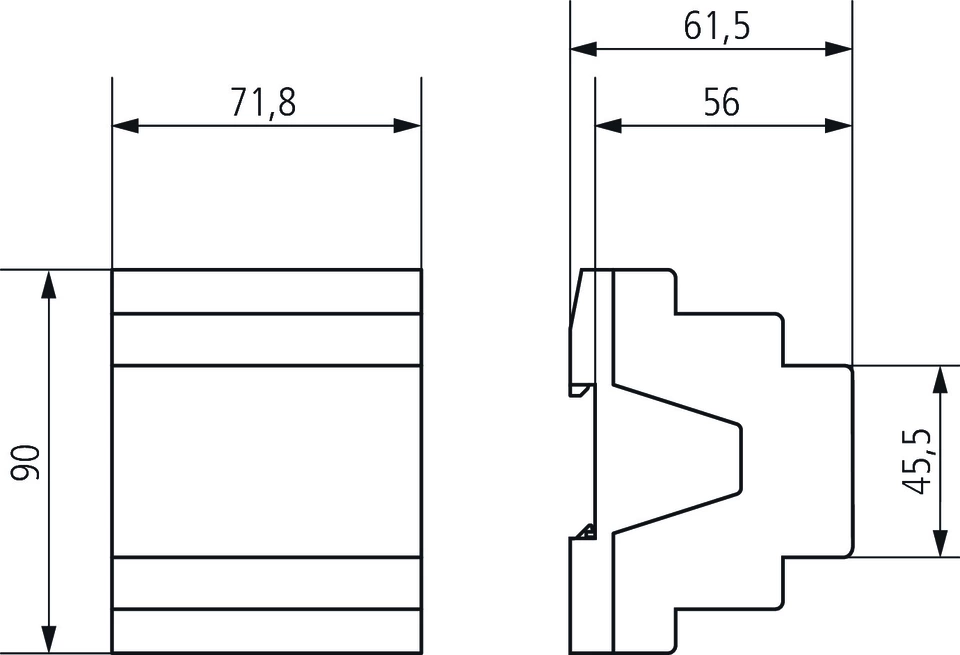

| Width | 4 modules (4 TE) |
| Mounting type | DIN rail (TH35, EN 60715) |
| Contact type | Triac outputs |
| Switching capacity (fan relays) | 8 A |
| Switching capacity (extra relay) | 16 A |
| Ambient temperature | -5 °C to +45 °C |
| Protection class | IP 20 according to EN 60529 |
| Safety class | Class II according to EN 60730-1 |
Important Notes
- The FCA 1 KNX requires a permanent 230 V AC mains connection to power the fan and valve outputs.
- The device is intended for indoor use only and must be mounted on a DIN rail inside a control cabinet.
- When using the emergency mode, ensure correct programming in ETS to avoid incorrect heating or cooling behavior.
- All wiring and configuration must be performed by qualified personnel.
