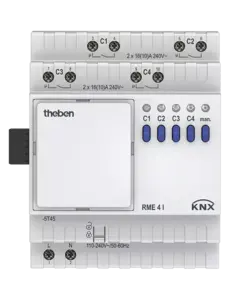

RME 4 I KNX | 4-fold switch actuator, C-load 16 A, ext. module MIX2
€157,64 Incl. tax €274,16 Incl. tax. Out of stock, but available
Specifications
Information

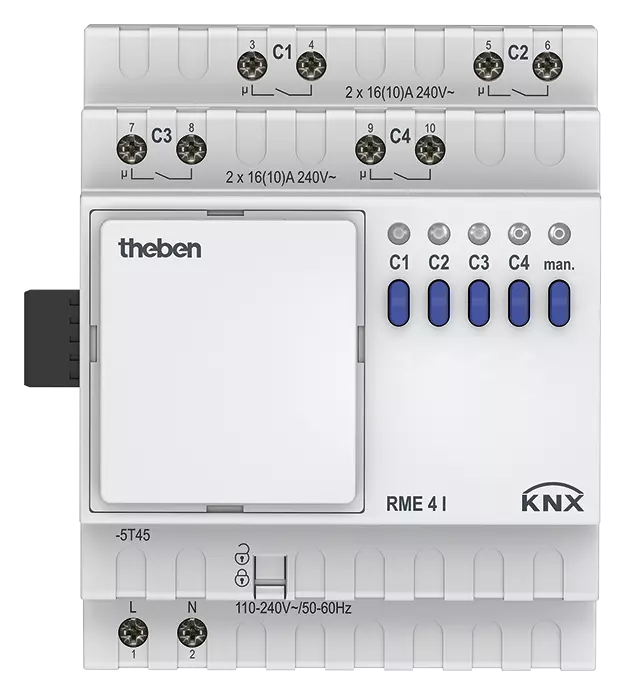

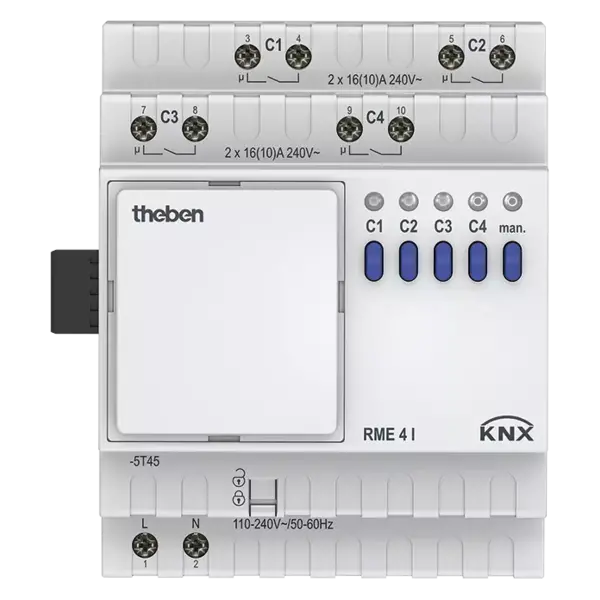

RME 4 I KNX – 4-fold C-load Switch Actuator MIX2
Art. No. 4930215
Product Description:
The Theben RME 4 I KNX is an extension module for KNX installations, offering four powerful 16 A C-load outputs. With integrated current detection, the device is ideal for high lighting loads such as LEDs, halogen, and fluorescent lamps. This MIX2 module connects via a side connector to a compatible base module and cannot operate independently.
The actuator supports various switching and logic functions, manual operation, and per-channel LED status indicators. The detachable KNX bus module allows device replacement without reprogramming, facilitating easy installation and maintenance.
- Type: KNX C-load switch actuator, MIX2 extension module
- Number of channels: 4 (normally open contacts)
- Nominal current: 16 A (10 A depending on load type)
- Output voltage: 240 V AC, volt-free
- Switching contacts: support different phases
- Current detection: integrated, I > 1 A: ±8%, I < 1 A: ±100 mA
- Lowest measurable current: 150 mA
- Resistive load: 3680 W
- Incandescent/halogen load: 2600 W
- Capacitive load: 200 µF
- Fluorescent lamps (conventional ballast): 2000 W (200 µF parallel compensation)
- Fluorescent lamps (electronic ballast): 1650 W
- Energy-saving lamps: 410 W
- LED < 2 W: 75 W
- LED 2–8 W: 850 W
- LED > 8 W: 850 W
- Inrush current: max. 1500 A / 200 µs
- Supply voltage: 110–240 V AC, 50–60 Hz
- Standby power: ~0 W
- Max. power loss: 2.4 W
- Mounting: DIN rail, 4 TE width
- Connection type: Screw terminals
- Cable cross-section:
- Solid: 0.5 mm² (Ø 0.8) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Contact opening width: < 3 mm
- Suitable for SELV: Yes, if all channels switch SELV
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II according to EN 60 669
- Configurable functions: switching, pulse, delay, staircase lighting with pre-warning
- Logic functions: blocking, AND, enabling, OR
- Central functions: ON/OFF, central OFF, light scene save/recall
Installation note: Up to two MIX or MIX2 extension modules can be connected to a suitable KNX base module.
