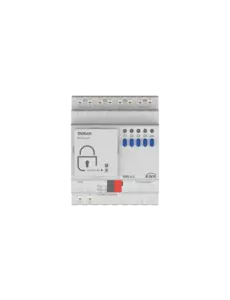

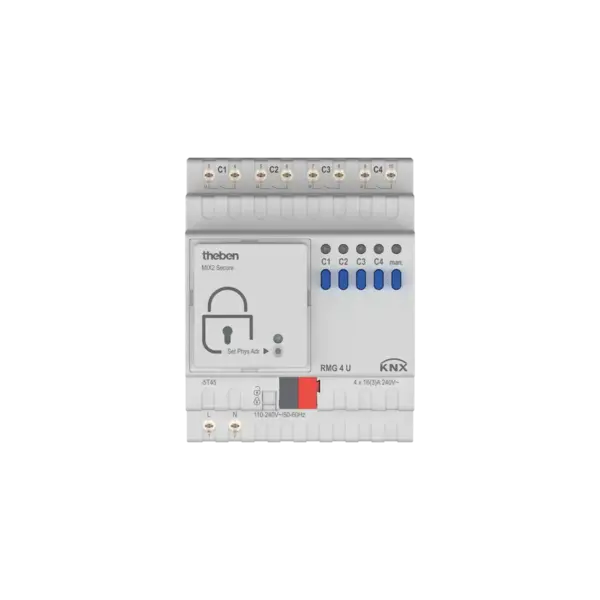

RMG 4 U KNX I | 4-channel 16A Switch Actuator Base Module MIX2
€169,32 Excl. tax
€294,47 Excl. tax
€204,88 Incl. tax €356,31 Incl. tax. Out of stock, but available
€204,88 Incl. tax €356,31 Incl. tax. Out of stock, but available
4-channel 16 A switch actuator, base module for MIX2. Manual operation, status LEDs and logic functions. Expandable to 12 channels with MIX/MIX2 modules. Suitable for various load types. Read more
Specifications
Brand:
Theben
Article number:
4930223
EAN:
4003468490969
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
RMG 4 U KNX – 4-channel switch actuator 16 A, base module MIX2
Article number: 4930223
Application
The Theben RMG 4 U KNX is a 4-channel switch actuator (16 A) designed for use in KNX installations. As a base module of the MIX2 system, it enables flexible and efficient switching functions in residential and commercial buildings. Ideal for switching lighting, devices, and other electrical loads.
Functions
- 4-channel switch actuator 16 A
- MIX2 base module – expandable up to 12 channels using 2 MIX/MIX2 extension modules
- Detachable KNX bus coupling unit allows device replacement without reprogramming
- Manual operation on the device, even without bus voltage
- Status indication via LED for each channel
- Configurable functions: switching, pulse, delayed switching
- Logical functions: AND, OR, blocking, release
- Support for central commands and scenes (central ON/OFF, scene save/recall)
- Switching of different phases possible
- Suitable for SELV applications when all channels switch SELV
Technical specifications
- KNX supply voltage: via bus, ≤ 4 mA
- Mains voltage: 110 – 240 V AC, 50 – 60 Hz
- Standby consumption: approx. 0.3 W
- Mounting: DIN rail (4 TE)
- Connection: KNX terminal, screw terminal for solid and stranded conductors
- Max. cable cross-section: 0.5 – 6 mm² (solid), 0.5 – 4 mm² (stranded with ferrule)
- Switching outputs: 4 (potential-free, NO contact)
- Switching current: 16 A nominal, 3 A minimum
- Resistive load: 3680 W
- Incandescent/halogen load: 2000 W
- Fluorescent lamps (conventional ballast): 1300 W (parallel compensated, 140 µF), 2000 VA (not compensated)
- Fluorescent lamps (electronic ballast): 1200 W
- Energy-saving lamps: 300 W
- LED < 2 W: 55 W
- LED 2–8 W / > 8 W: 600 W
- Inrush current max.: 800 A / 200 µs
- Output switching voltage: 240 V AC
- Contact gap: < 3 mm
- C-load: supported
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II
Important notes
- The RMG 4 U KNX is a base module of the MIX2 series and does not require reprogramming when replacing the device, thanks to the detachable KNX bus module.
- A maximum of two MIX or MIX2 extension modules can be connected to this base module.
- All functions remain available during manual operation, even without bus voltage.
