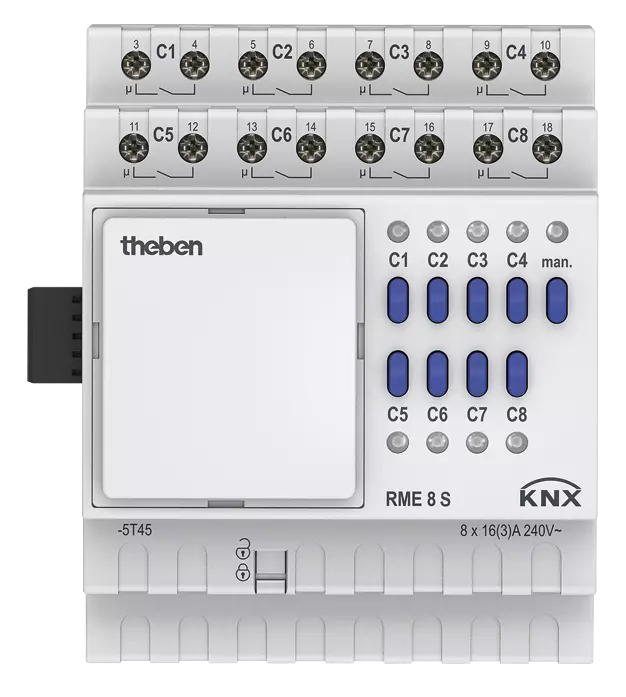

RME 8 S KNX | 8-ch. switch actuator 16 A, extension module MIX2
€145,84 Excl. tax
€253,64 Excl. tax
€176,47 Incl. tax €306,90 Incl. tax. Out of stock, but available
€176,47 Incl. tax €306,90 Incl. tax. Out of stock, but available
8-channel KNX switch actuator 16 A as MIX2 extension module. Expands a base module with 8 channels. Only usable with a MIX2 base module. Read more
Specifications
Brand:
Theben
Article number:
4930225
EAN:
4003468493076
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
RME 8 S KNX – 8-channel switch actuator 16 A, MIX2 extension module
Part number: 4930225
Application
The Theben RME 8 S KNX is an 8-channel switch actuator (16 A) designed as an extension module for the MIX2 system. It is intended for use in KNX installations and adds eight additional switching channels to an existing MIX2 base module. Ideal for residential and commercial applications to control lighting, devices and other electrical loads.
Important note
This module operates only in combination with a MIX2 base module. The RME 8 S KNX cannot function independently and requires a connected MIX2 master unit. A maximum of two MIX or MIX2 extension modules can be added to one base module.
Functions
- 8-channel switch actuator (16 A) as extension module
- Part of the MIX2 system
- Expandable up to 24 channels (1 base + 2 extensions)
- Removable KNX bus module enables device replacement without reprogramming
- Manual control on the device, even without bus voltage
- LED status display for each channel
- Configurable functions: switching, impulse, delay, staircase function with pre-warning
- Logic functions: AND, OR, blocking, release
- Supports central commands: always ON/OFF, central switching, recall/store scenes
- Switching of different phases possible
- Suitable for SELV if all channels switch SELV
Technical specifications
- Valid from serial number: 1318XXXXX
- Mounting: DIN rail

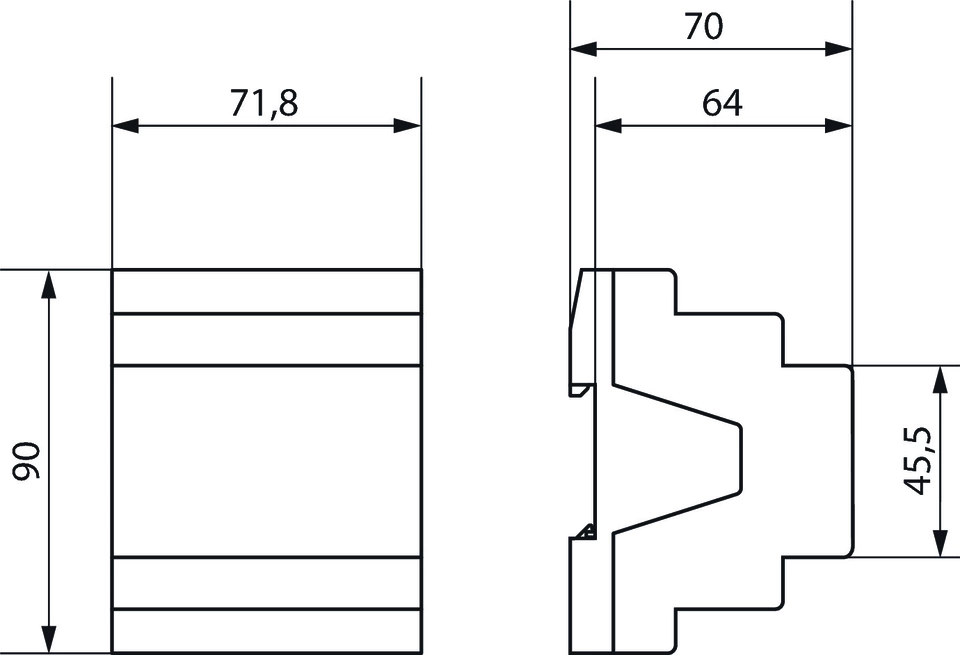

- Width: 4 TE (modules)
- Connection type: Screw terminals
- Max. wire size:
- Solid: 0.5 mm² (Ø 0.8) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Number of channels: 8
- Contact type: Normally open contact, 16 A nominal, 3 A minimum
- Contact opening width: < 3 mm
- Resistive load: 3680 W
- Incandescent/halogen lamps: 2000 W
- Fluorescent lamps (conventional ballast):
- Parallel compensated: 1300 W (140 µF)
- Not compensated: 2000 VA
- Fluorescent lamps (electronic ballast): 1200 W
- Energy-saving lamps: 300 W
- LEDs:
- < 2 W: 55 W
- 2–8 W: 600 W
- > 8 W: 600 W
- Max. inrush current: 800 A / 200 µs
- Output voltage: 240 V AC
- Switching outputs: Potential-free

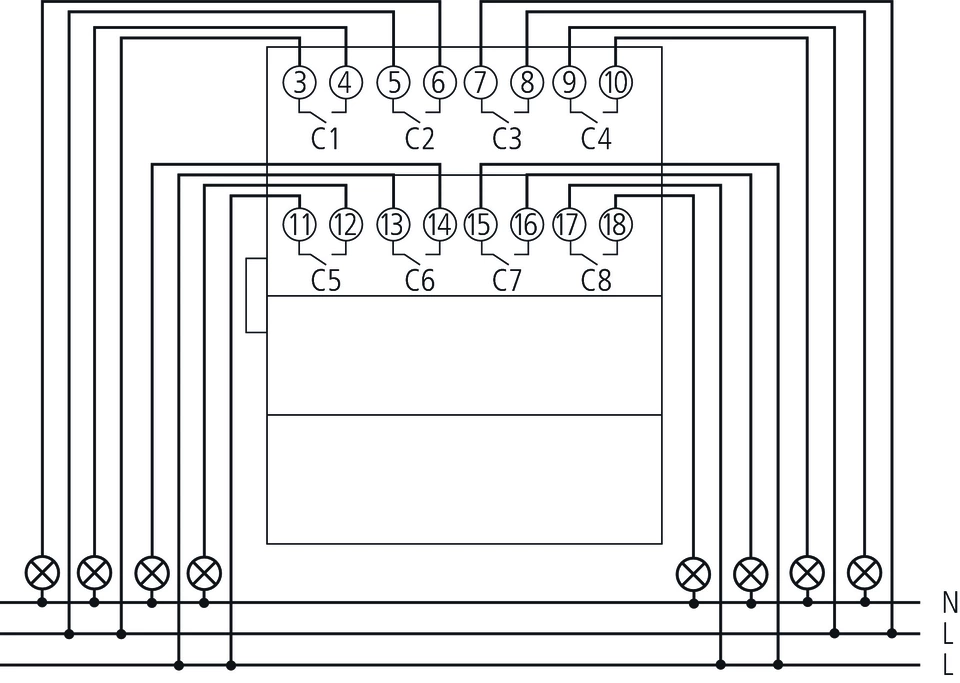

- Switching different phases: Possible
- Suitable for SELV: Yes, if all channels switch SELV
- C-load support: Yes
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II
Important note: This module is only usable in combination with a MIX2 base module. The RME 8 S KNX cannot operate independently.
