BME 6 T KNX | 6-fold bin. input, extension module MIX2, KNX
€126,42 Incl. tax €219,87 Incl. tax. Out of stock, but available
Specifications
Information

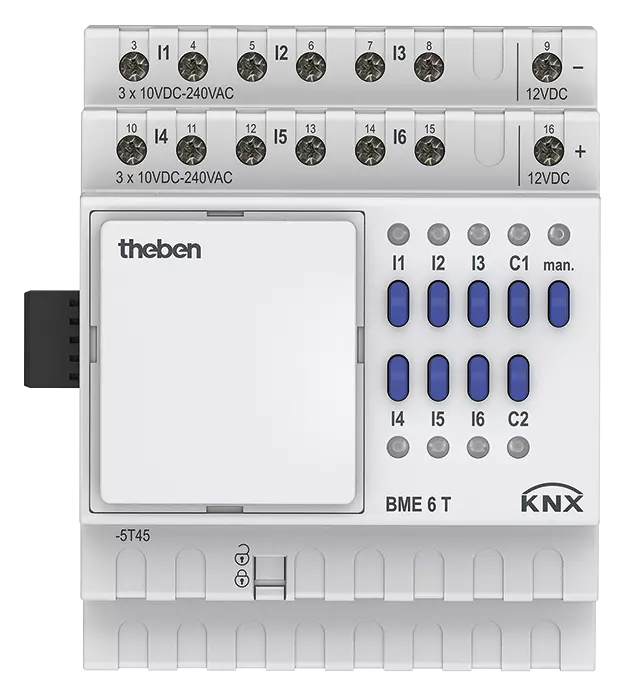

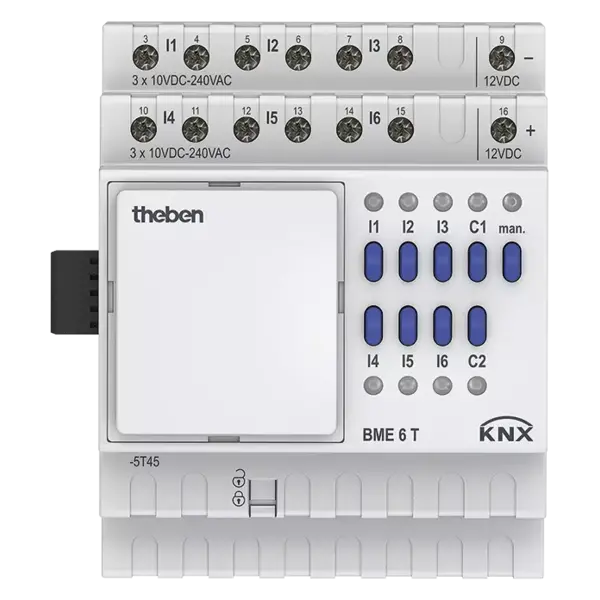

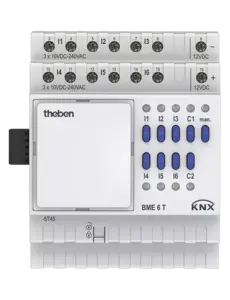

BME 6 T KNX – 6-fold binary input MIX2
Part No. 4930235
Product description:
The Theben BME 6 T KNX is an extension module with 6 binary inputs for KNX systems, designed as an add-on to a MIX2 base module. The device connects via the side connector to a BMG 6 T KNX base module, allowing expansion up to 18 inputs (maximum of 2 extension modules per base unit).
This module is suitable for detecting contacts such as pushbuttons, switches, or technical signals, and allows for flexible and space-saving expansion of KNX installations. Thanks to the removable KNX bus coupling unit, devices can be replaced without reprogramming. Manual operation and LED status indication per channel support easy commissioning and maintenance.
- Type: KNX extension module with 6 binary inputs
- Use: Only in combination with BMG 6 T KNX base module

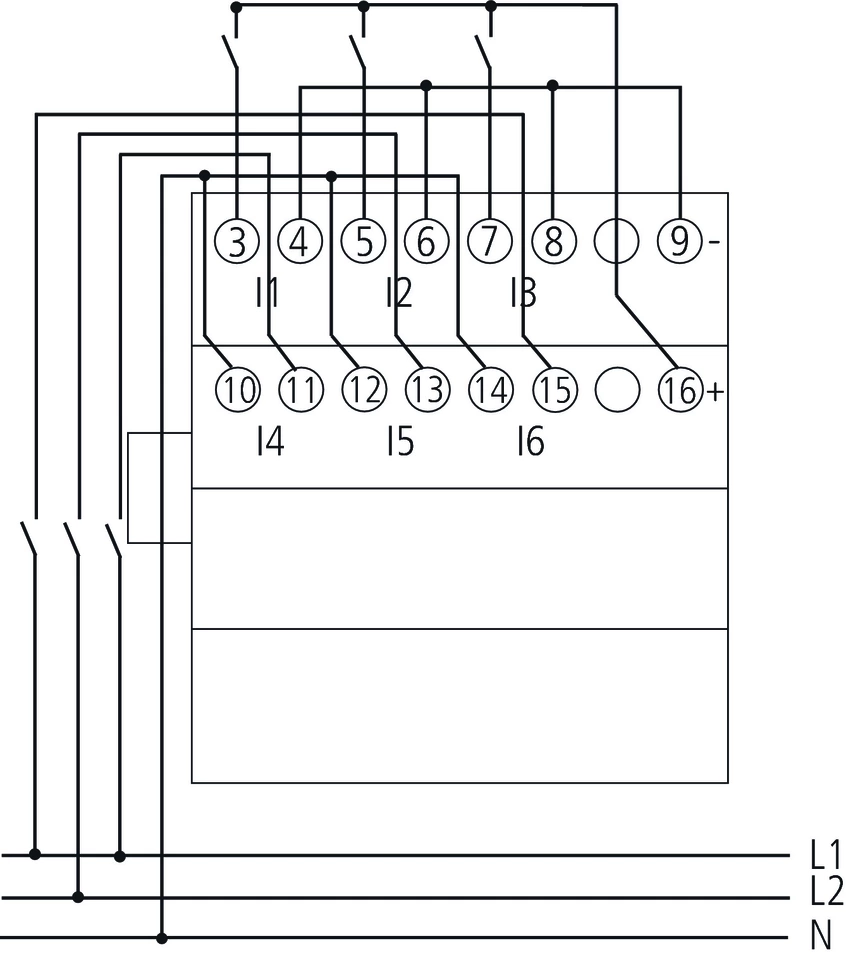

- Input voltage range: 10 V DC – 240 V AC, 2 mA
- Internal output voltage: 12 V DC / 18 mA (no SELV)
- Max. cable length per input: 100 m
- Display: 6 LEDs indicating switching state per channel
- Manual operation: Possible, even without KNX bus voltage

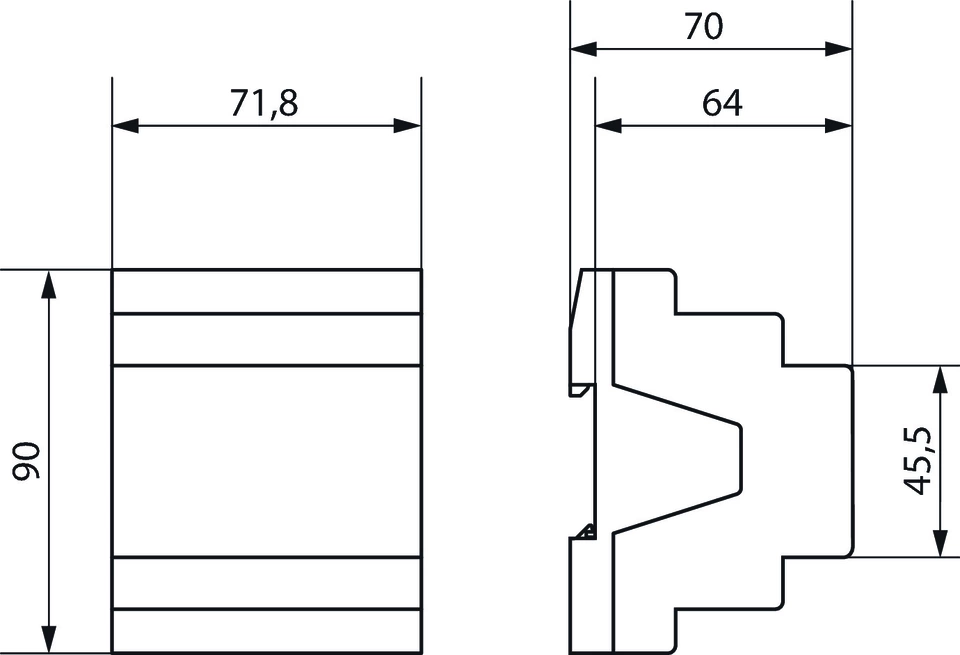

- Mounting: DIN rail, 4 module widths
- Connection: KNX bus terminal (via base module)
- Conductor cross-section:
- Solid: 0.5 mm² (Ø 0.8) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II according to EN 60 730-1
Installation and expansion note: A maximum of 2 extension modules (MIX or MIX2) can be connected to one BMG 6 T KNX base module. This module does not operate independently without a base module.
