JME 4 T KNX 24V blind actuator 4-fold, MIX2 extension module
€129,94 Excl. tax
€225,99 Excl. tax
€157,23 Incl. tax €273,45 Incl. tax. Out of stock, but available
€157,23 Incl. tax €273,45 Incl. tax. Out of stock, but available
4-fold blind actuator without KNX module. Expansion for a MIX2 base unit with KNX intelligence. For shutters and ventilation. 6 A per channel. Read more
Specifications
Brand:
Theben
Article number:
4930265
EAN:
4003468490860
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

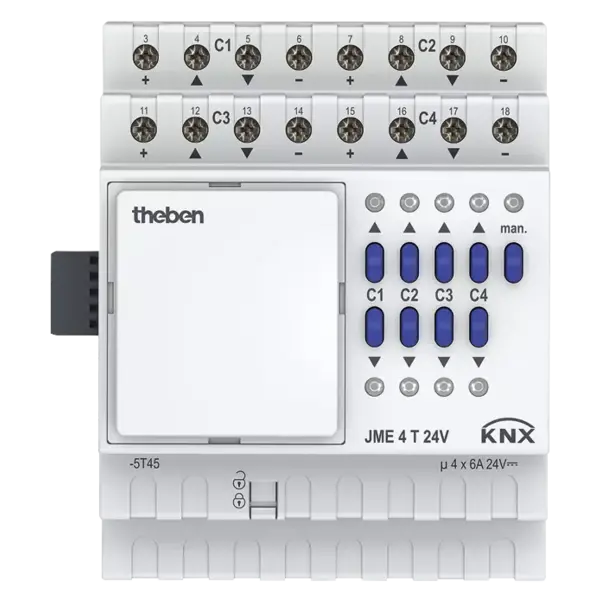

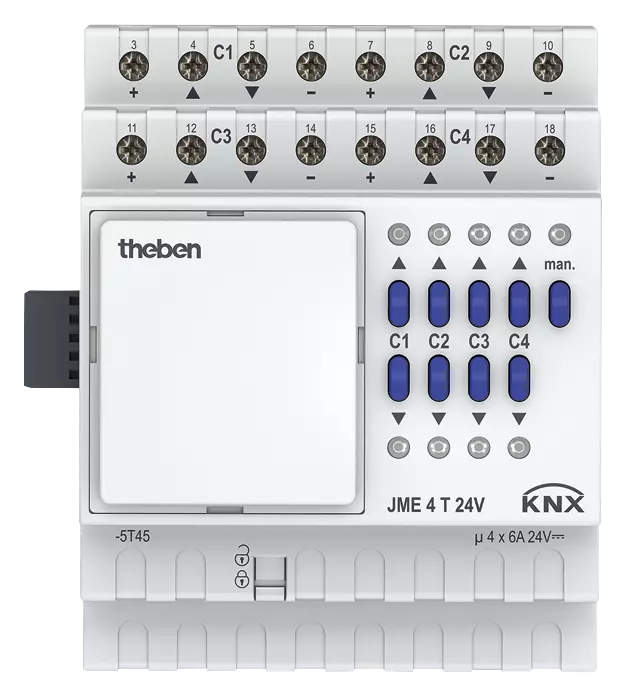

JME 4 T 24V KNX – 4-fold blind actuator, MIX2 extension module
Item no. 4930265
Application
Extension module for controlling up to 4 blinds, shutters, sun protection systems, skylights, or ventilation flaps with 24 V DC. This module is used as an extension to a MIX2 base unit with KNX intelligence.
Functions

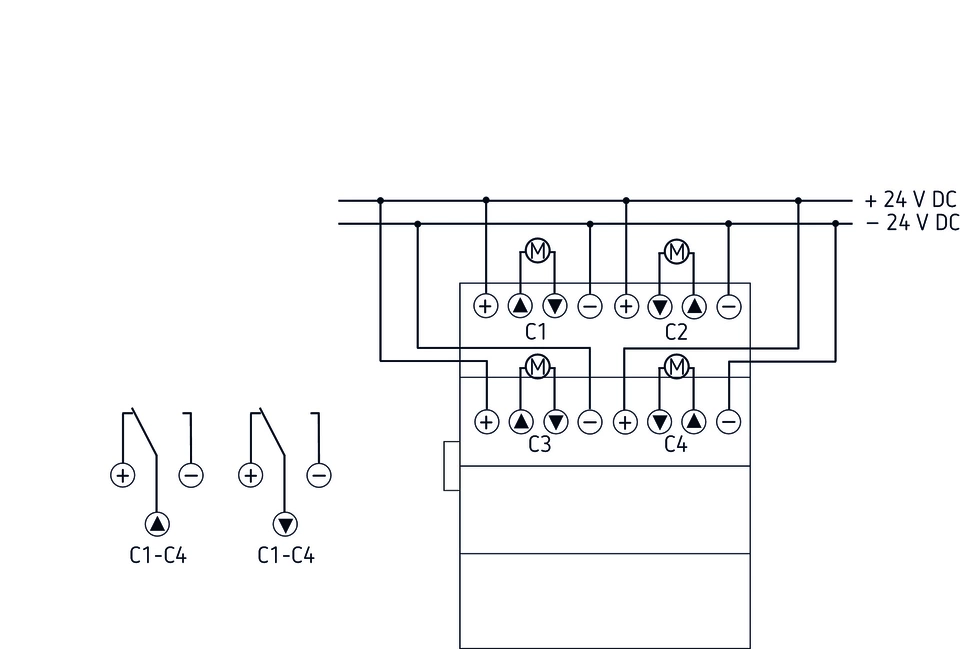

- 4-fold blind actuator for 24 V DC
- MIX2 extension module without its own KNX bus module
- Manual operation on the device (also without bus voltage)
- LED status display (Up/Down) for each channel
- Potential-free changeover contacts per channel (Up/Down)
- Copy function for quick parameter setting via the base unit
- Device and KNX bus module can be replaced independently
- Removable KNX bus module allows device replacement without reprogramming
- Can be combined with other MIX2 modules (switching, dimming, heating, binary inputs)
Technical specifications
- Number of channels: 4
- Switching current per channel: 6 A at 24 V DC
- Output: Potential-free, suitable for SELV
- Contact type: Changeover (NO/NC)

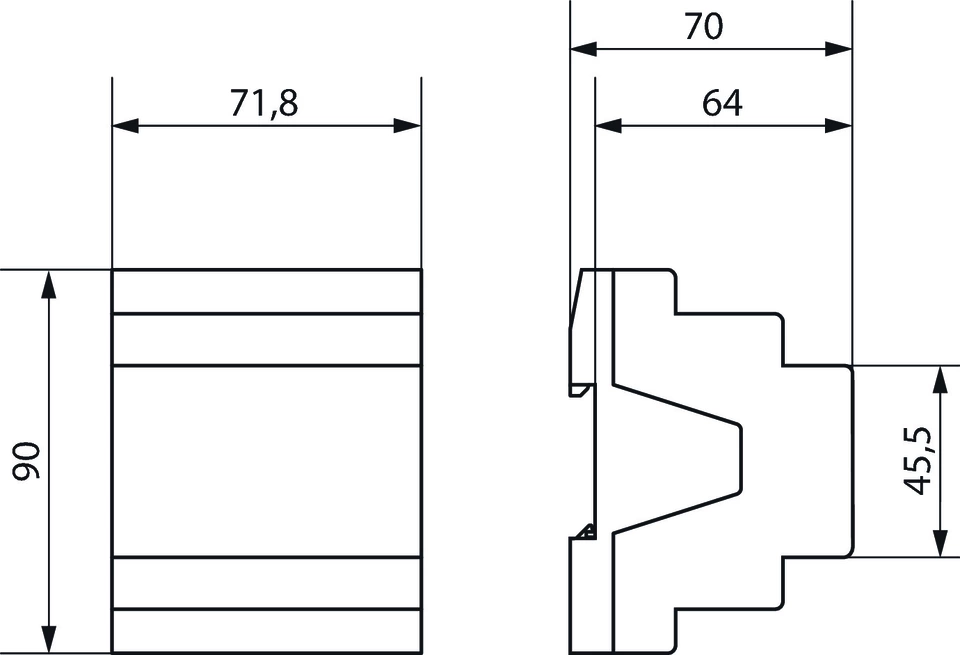

- Mounting: DIN rail (4 TE)
- Connection: Screw terminals
- Cable cross-section:
- Solid: 0.5 mm² (Ø 0.8 mm) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II according to EN 60730-1
Important notes
- This actuator is an extension module without its own KNX bus intelligence.
- A MIX2 base unit with KNX functionality is required for operation.
- A maximum of 2 extension modules can be connected to one base unit.
- Cannot be programmed independently without a connected base unit.
