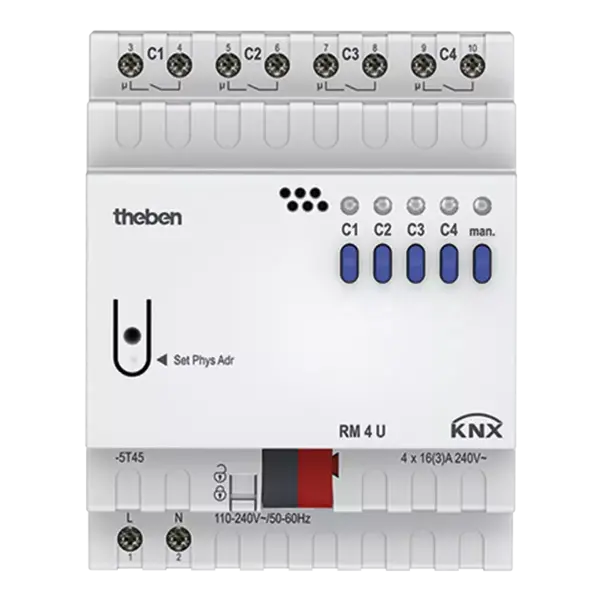

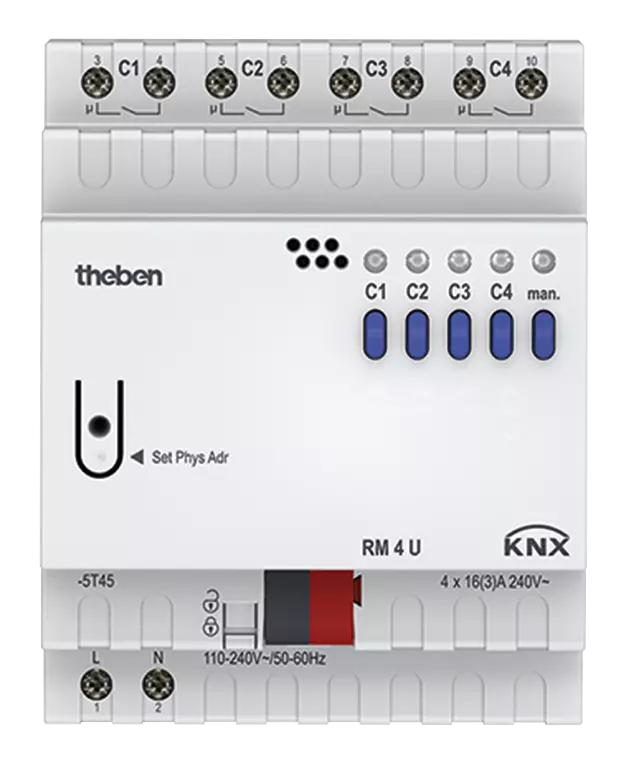

RM 4 U KNX – 4-channel switch actuator 16 A with FIX1 and LEDs
€152,39 Excl. tax
€265,03 Excl. tax
€184,39 Incl. tax €320,69 Incl. tax. Out of stock, but available
€184,39 Incl. tax €320,69 Incl. tax. Out of stock, but available
4-channel KNX switch actuator with FIX1 module, manual control without bus voltage, LED status per channel. Supports 16 A loads and logic functions. Read more
Specifications
Brand:
Theben
Article number:
4940223
EAN:
4003468490976
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
RM 4 U KNX – 4-channel switching actuator with FIX1 module
Item No. 4940223
Application
The RM 4 U KNX from Theben is a versatile 4-channel switching actuator for KNX installations. The FIX1 module makes the device suitable for switching loads up to 16 A. With manual control and LED status indication per channel, it offers both reliability and ease of use. Ideal for controlling various lighting types including LEDs, fluorescent, incandescent, and halogen lamps in residential and commercial buildings.
Main features
- 4-channel KNX switching actuator with FIX1 module for loads up to 16 A
- Supports high inrush currents up to 800 A (200 µs)
- Manual control available per channel, even without bus voltage
- LED status indication for each channel
- Configurable functions via ETS: switching, pulse, on/off delay, staircase lighting
- Logic functions: blocking, AND, OR, release
- Supports central commands: permanent ON/OFF, central switching, scene storage/retrieval
- Potential-free outputs: suitable for switching different mains phases
- SELV application possible if all channels switch SELV only
Technical data
| KNX operating voltage | Bus voltage, ≤ 4 mA |
| Supply voltage | 110–240 V AC, 50/60 Hz |
| Standby power consumption | Approx. 0.3 W |
| Mounting type | DIN rail, 4 modules width |
| Connection type | KNX bus terminal |
| Max. cable cross-section | Solid: 0.5–6 mm²; with ferrule: 0.5–4 mm² |
| Number of channels | 4 |
| Contact type | Normally open contact, 16 A / 3 A |
| Contact gap | < 3 mm |
| Resistive load | 3680 W |
| Incandescent/halogen lamps | 2000 W |
| Fluorescent lamps (conventional ballast, parallel compensated) | 1300 W (140 µF) |
| Fluorescent lamps (conventional ballast, uncompensated) | 2000 VA |
| Fluorescent lamps (electronic ballast) | 1200 W |
| Energy-saving lamps | 300 W |
| LED < 2 W | 55 W |
| LED 2–8 W | 600 W |
| LED > 8 W | 600 W |
| Inrush current | max. 800 A / 200 µs |
| Output voltage | 240 V AC |
| Switching outputs | Potential-free |
| Switching of different phases | Possible |
| Suitable for SELV | Yes, if all channels switch SELV only |
| Module type | FIX1 |
| Ambient temperature | -5 °C to +45 °C |
| Protection rating | IP20 |
| Protection class | Class II according to EN 60669 |
Important notes
- Use only with suitable wiring and in accordance with applicable installation regulations.
- Full functionality requires configuration via ETS software (version 5 or higher).
- Manual control is available even without KNX bus voltage.
- Potential-free outputs allow switching of different mains phases.
