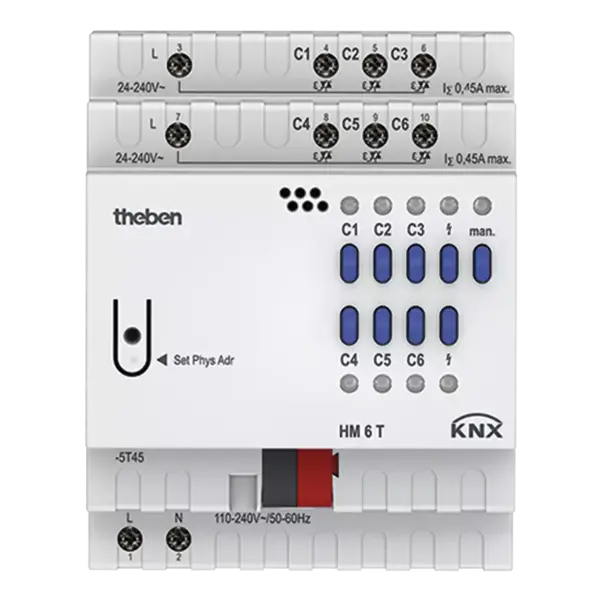

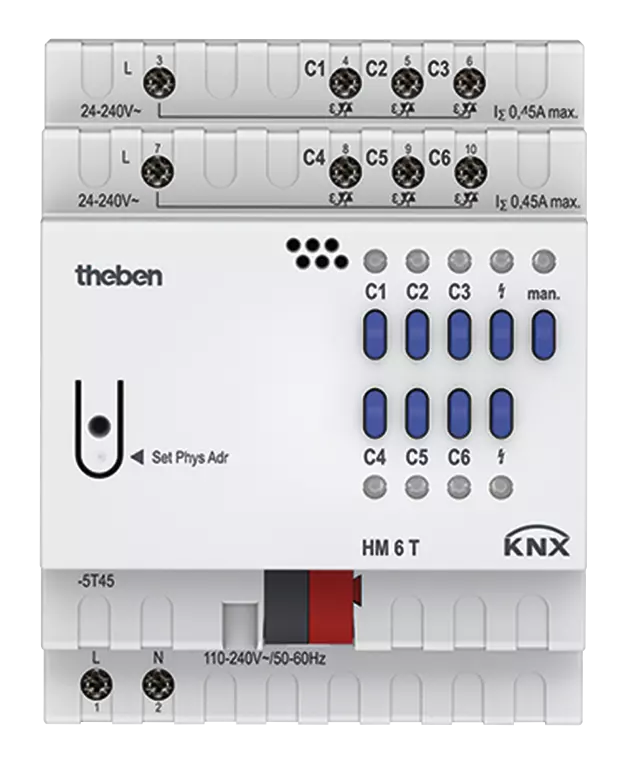

HM 6T KNX | 6-channel heating actuator FIX1, KNX 24–230 V AC
€147,84 Excl. tax
€257,12 Excl. tax
€178,89 Incl. tax €311,12 Incl. tax. Out of stock, but available
€178,89 Incl. tax €311,12 Incl. tax. Out of stock, but available
6-fold heating actuator/regulator with 6 P/PI controllers, for 6 thermal actuators 24–240 V AC, manual operation, valve protection, FIX1. Read more
Specifications
Brand:
Theben
Article number:
4940240
EAN:
4003468490754
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Product Description – HM 6 T KNX
Art. no.: 4940240
Application
The HM 6 T KNX is a 6-channel heating actuator/controller with FIX1 terminals, designed for precise control of thermal actuators via KNX. Suitable for both heating and cooling in residential and commercial buildings.
Main Functions
- 6 temperature controllers (P/PI) for heating and cooling

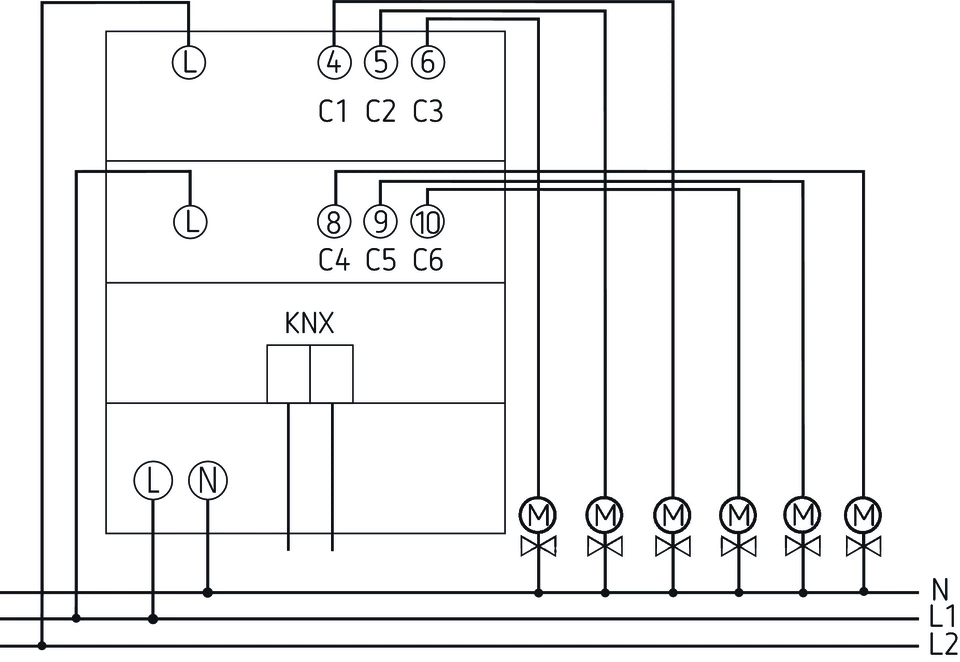

- Control of 6 thermal actuators (24–240 V AC) in 2 groups of 3 outputs (max. 450 mA)
- Selectable control variable: continuous or switching
- Deactivatable valve protection function; summer mode available
- 4 operating modes: Comfort, Stand-by, Night, Frost/Overtemperature protection
- Status indication via LEDs for each channel
- Manual operation possible without bus voltage
- Short-circuit and overload protection
Technical Specifications
| KNX supply voltage: | via bus, ≤4 mA |
| Operating voltage: | 110–240 V AC, 50–60 Hz |
| Standby power consumption: | approx. 0.5 W |
| Number of channels: | 6 |
| Output type: | Triac, 0.45 A, not potential-free |
| Output voltage: | 24–240 V AC |
| Mounting type: | DIN rail, 4 modules |
| Connection type: | Screw terminals, KNX bus terminal |
| Max. cable diameter: | 0.5–6 mm² (solid), 0.5–4 mm² (with ferrule) |
| Ambient temperature: | -5 °C to +45 °C |
| Protection rating: | IP20 |
| Protection class: | Class II (EN 60 669) |
Important Note
Due to the inrush behavior of thermal actuators, it is recommended not to exceed 3x1 thermal actuators at 24 V AC or 3x5 at 230 V AC per group.
