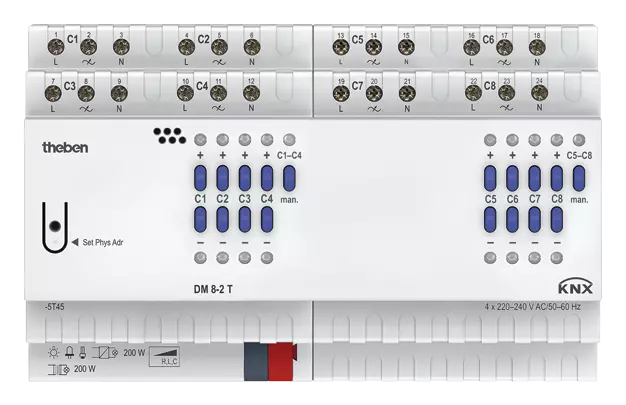

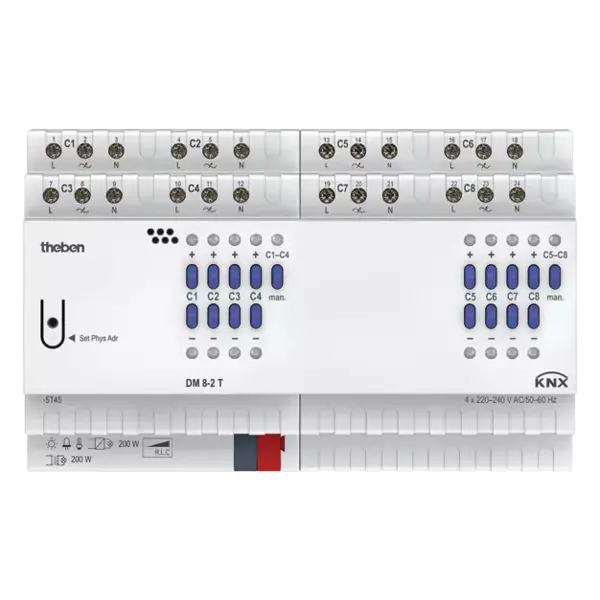

DM 8-2 T KNX – 8-channel dim actuator FIX2, 200 W/ch (R, L, C)
€580,01 Incl. tax €1.008,72 Incl. tax. Out of stock, but available
Specifications
Information
DM 8-2 T KNX – 8-channel universal dim actuator FIX2
Part No. 4940285
Application
The DM 8-2 T KNX is an 8-channel universal dim actuator designed for DIN rail mounting. Each channel supports up to 200 W load and is suitable for dimmable light sources such as LED, incandescent, low-voltage and high-voltage halogen lamps, and compact fluorescent lamps. It is also suitable for controlling fans. With automatic load detection and manual operation on the device, commissioning is simple. Full KNX integration makes it ideal for smart building automation systems.
Functions
- 8-channel universal dim actuator with FIX2 technology
- Suitable for dimming:
- Incandescent lamps
- Low-voltage and high-voltage halogen lamps
- Dimmable LED lamps
- Dimmable compact fluorescent lamps (CFL)
- Also suitable for fan control
- Automatic load detection per channel (can be deactivated)
- Dimming power: 200 W per channel
- Manual operation on the device
- LED status display for each channel
- Supports R, L, and C type loads
Technical data
| KNX supply voltage: | Via KNX bus, ≤ 17.5 mA |
| Mains voltage: | 230–240 V AC, 50–60 Hz |
| Frequency: | 50–60 Hz |
| Standby power consumption: | < 1 W |
| Mounting type: | DIN rail (8 modules wide) |
| Connection type: | Screw terminals | KNX bus terminal |
| Max. cable cross-section: | Solid: 0.5–6 mm² | Stranded with ferrule: 0.5–4 mm² |
| Number of channels: | 8 |
| Dimming capacity per channel: | 200 W |
| Minimum switching power: | 2 W |
| Lamp types: | Incandescent, LV/HV halogen, dimmable LED, dimmable CFL |
| Trailing edge (RC mode): | 200 W for compact fluorescent lamps |
| Max. cable length: | 100 m |
| Ambient temperature: | -5 °C to +45 °C |
| Protection rating: | IP20 |
| Protection class: | Class II according to EN 60669 |
| EAN code: | 4003468490891 |
Important notes
- Check compatibility of lamps with trailing edge dimming (RC) before use.
- Only use dimmable LED and CFL models suitable for electronic dimming.
- Do not exceed the maximum dimming load per channel.
- Use proper protective components as required by applicable standards.
- Ideal for professional KNX installations in residential and commercial buildings.
