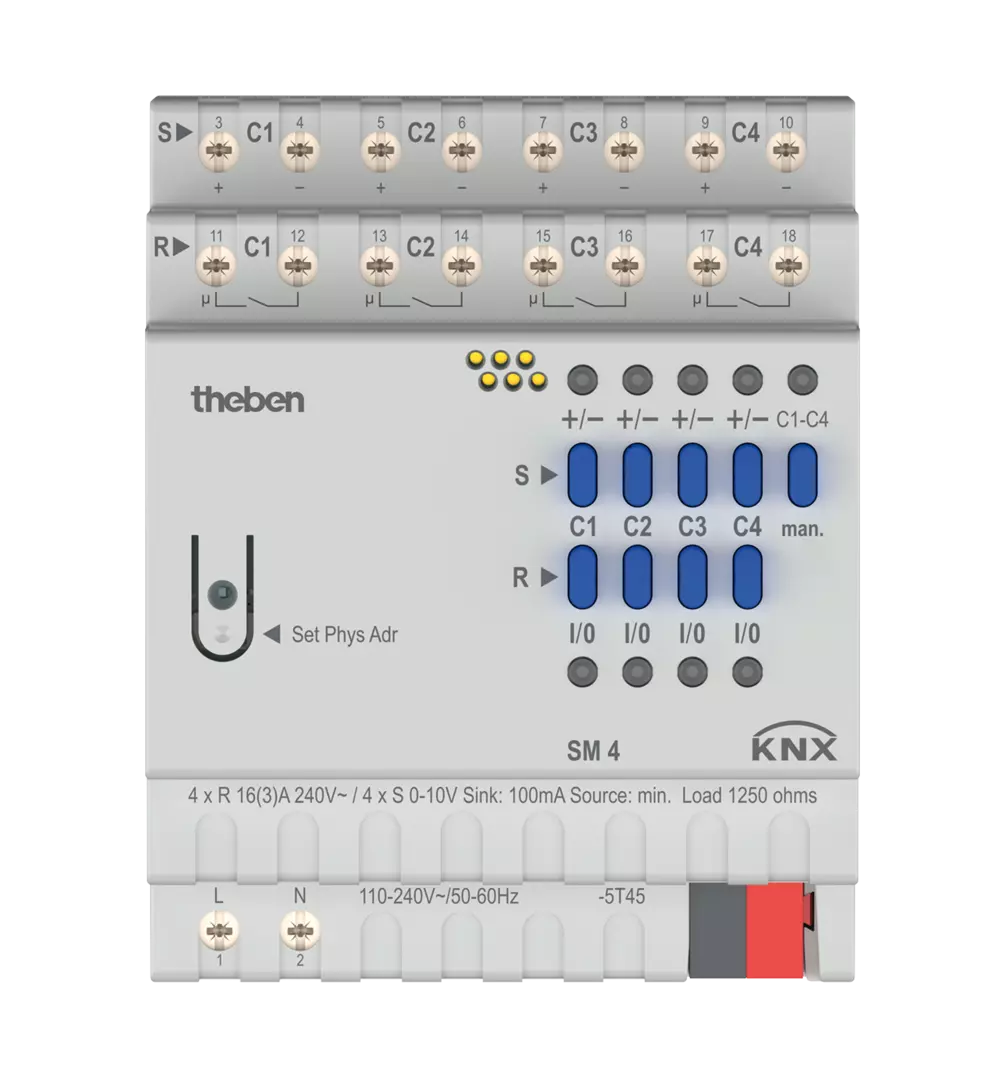

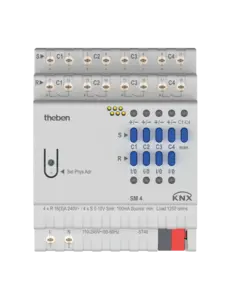

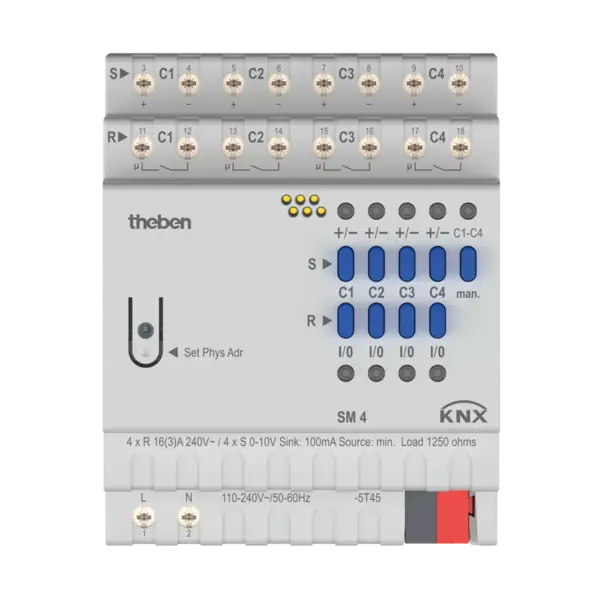

SM 4 KNX | 4-ch analog actuator 10 A with 0–10 V / 1–10 V interface
€171,33 Excl. tax
€297,97 Excl. tax
€207,31 Incl. tax €360,54 Incl. tax. Out of stock, but available
€207,31 Incl. tax €360,54 Incl. tax. Out of stock, but available
4-channel switch/dimming actuator for 0–10 V or 1–10 V control. Flexible use of control and relay outputs. Supports color control, KNX Data Secure. Type FIX1. Read more
Specifications
Brand:
Theben
Article number:
4940310
EAN:
4003468491492
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
SM 4 KNX – 4-channel analog switch/dimming actuator 10 A, FIX1
Art. no. 4940310
Product description:
The SM 4 KNX is a versatile 4-channel analog switch/dimming actuator for KNX systems, designed for controlling electrical loads via 0–10 V or 1–10 V interface. The FIX1 module allows flexible use of control and relay outputs. Supports both active (source) and passive (sink) control – even mixed operation.
Secure communication is ensured through KNX Data Secure. Easy commissioning directly in ETS without additional tools or apps. High inrush current capability (up to 800 A) enables reliable switching of capacitive loads like EVGs and LED drivers.
- Type: Analog switch/dimming actuator, FIX1 module
- Number of channels: 4
- Interface: 0–10 V (active), 1–10 V (passive)
- Application: LED drivers, EVG, halogen and incandescent lamps
- Color and color temperature control: Supported
- Inrush current: max. 800 A / 200 µs
- KNX Data Secure: Supported
- Commissioning: ETS, no extra tools or apps required
- Operating voltage: 110–240 V AC, 50/60 Hz
- KNX current consumption: <10 mA
- Standby power: approx. 0.5 W
- Mounting type: DIN rail, 4 units wide
- Connections: Screw terminals, KNX bus terminal
- Max. conductor size:
- Solid: 0.5 mm² (Ø 0.8) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Contact type: 10 A, 3 A, opening width < 3 mm
- Incandescent/halogen load: 1200 W
- LED < 2 W: 55 W
- LED 2–8 W: 600 W
- LED > 8 W: 600 W
- SELV compliant: Yes, if all channels switch SELV voltage
- Ambient temperature: -5 °C to +45 °C
- Protection rating: IP 20
- Protection class: II according to EN 60 730-1
Important note: The device is only SELV-compliant if all channels are operated with SELV voltage. Ensure proper integration into the KNX system.
