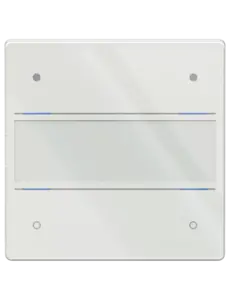

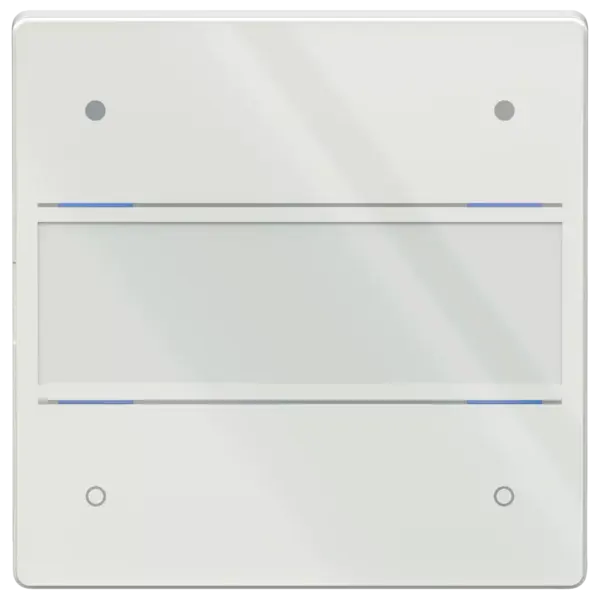

KNX Glass Touch Sensor with 4 Buttons, Status LEDs and Temp Sensor
€119,40 Excl. tax
€199,00 Excl. tax
€144,47 Incl. tax €240,79 Incl. tax. Out of stock, but available
€144,47 Incl. tax €240,79 Incl. tax. Out of stock, but available
Glass KNX touch sensor with 4 buttons, 4 configurable status LEDs and integrated temperature sensor. Supports KNX Data Secure and controls lighting, blinds, scenes, colour and more. Read more
Specifications
Brand:
Theben
Article number:
4969284
EAN:
4003468492178
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
KNX Glass Touch Sensor with 4 Buttons, Status LEDs and Temperature Sensor
Available Variants

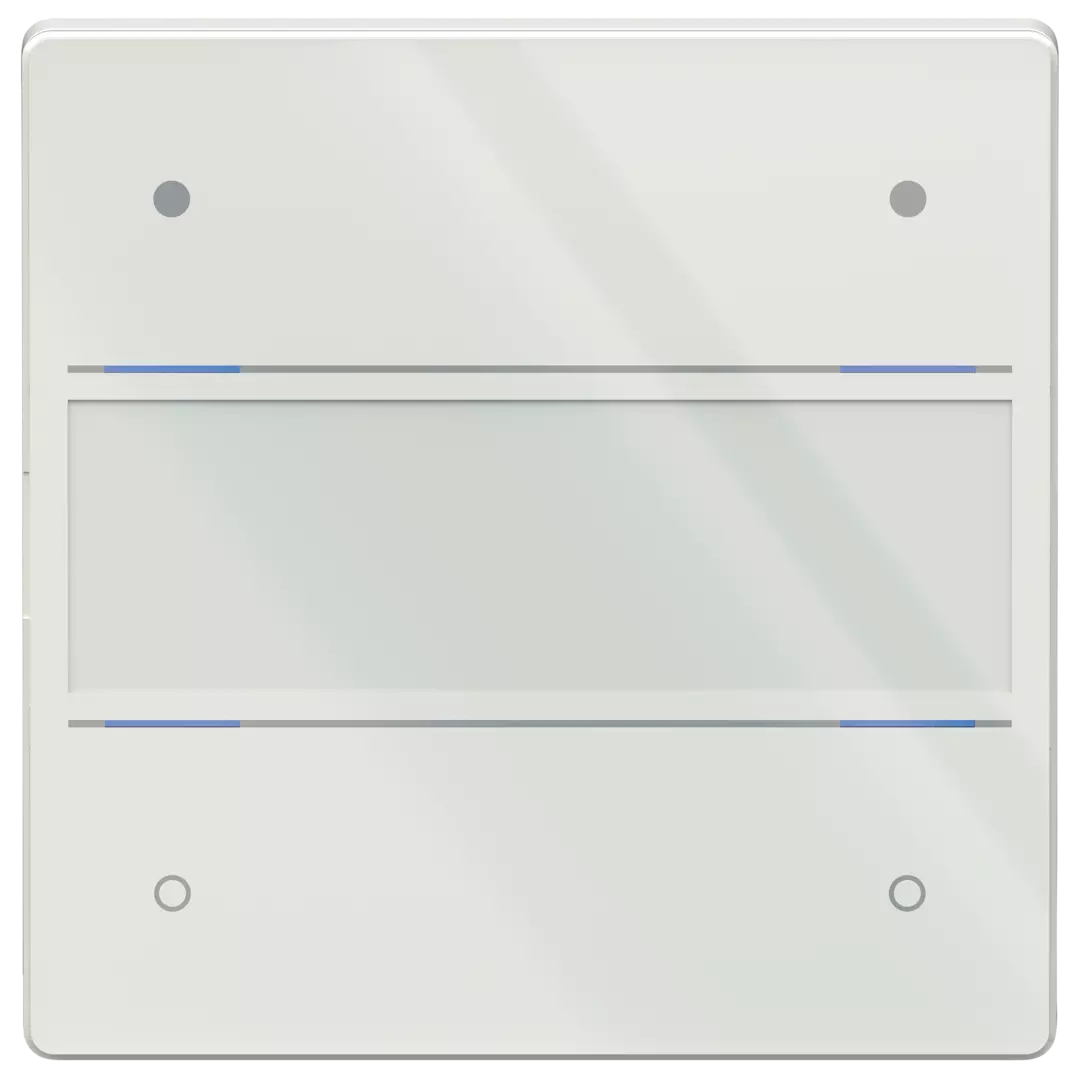

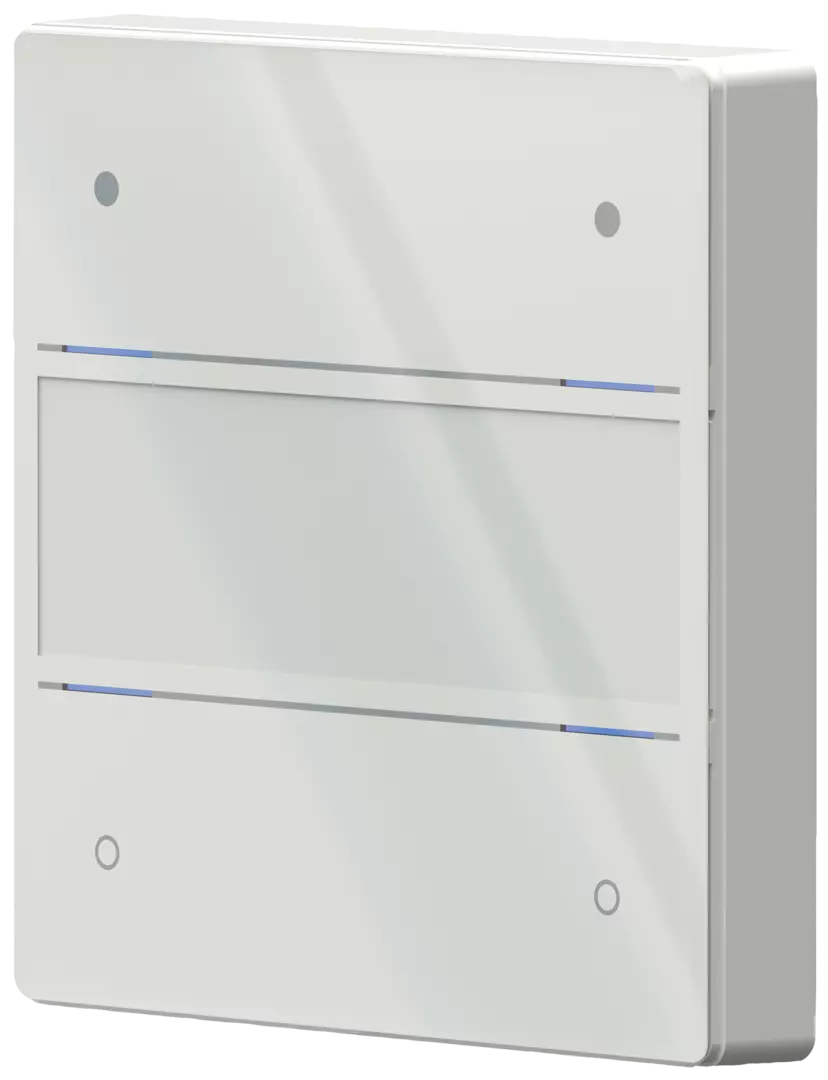

iON 104 KNX G WH – Part No. 4969284 – White (similar to RAL 9016)

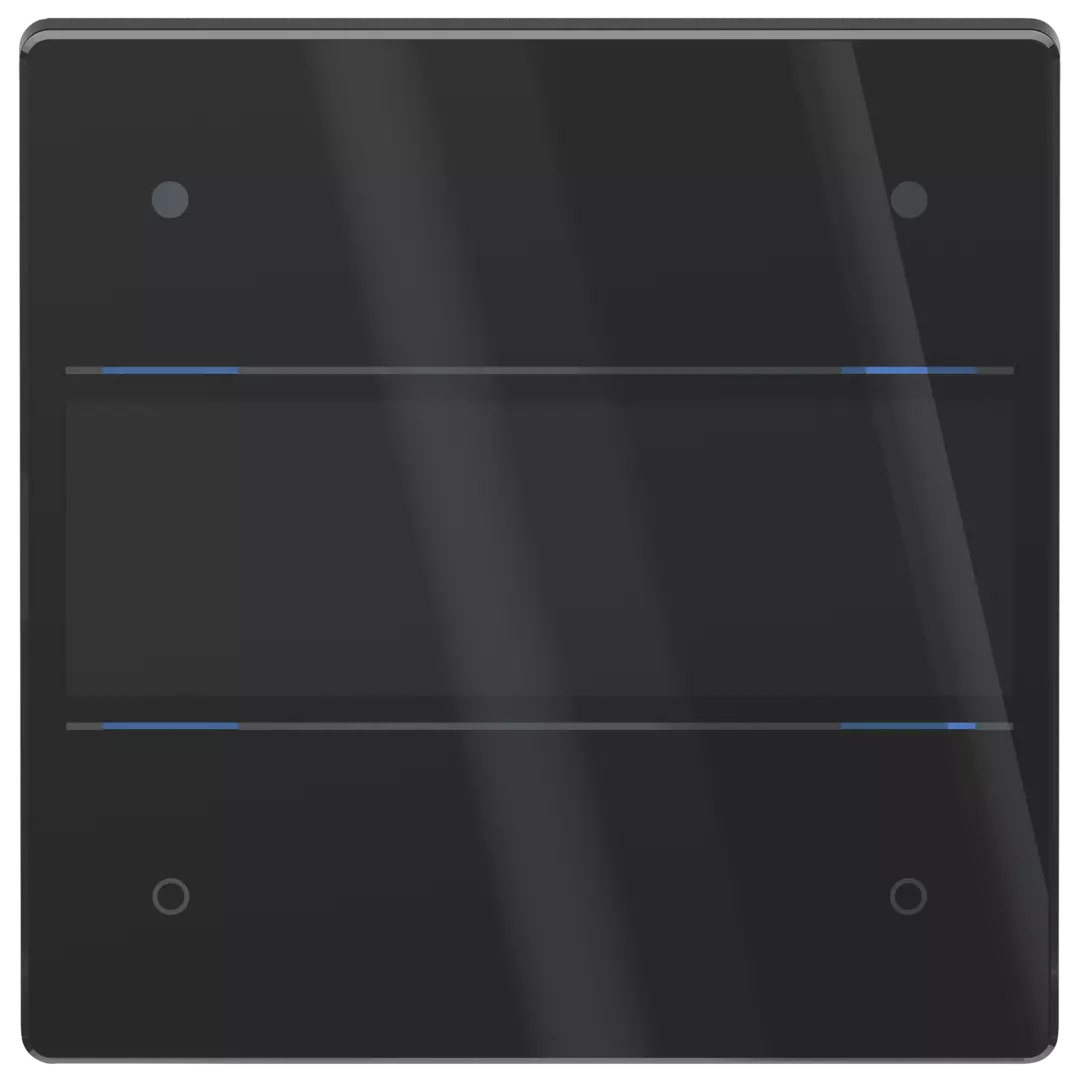

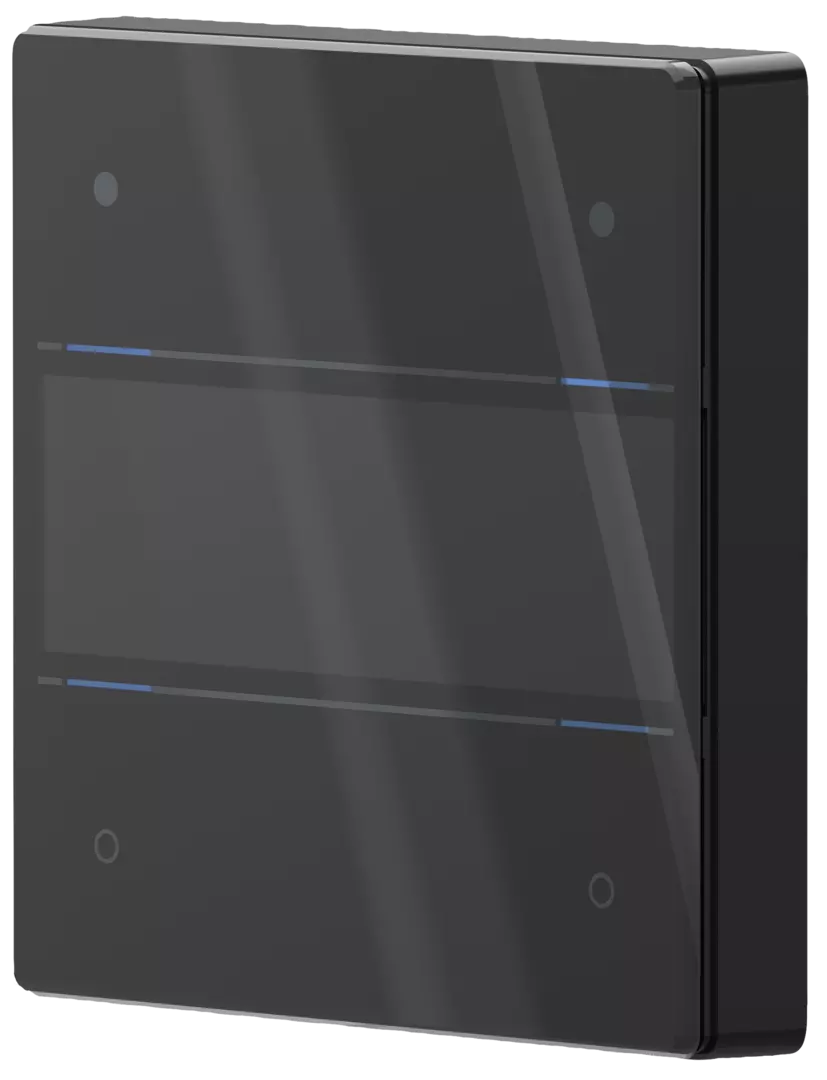

iON 104 KNX G BK – Part No. 4969294 – Black
Product Description

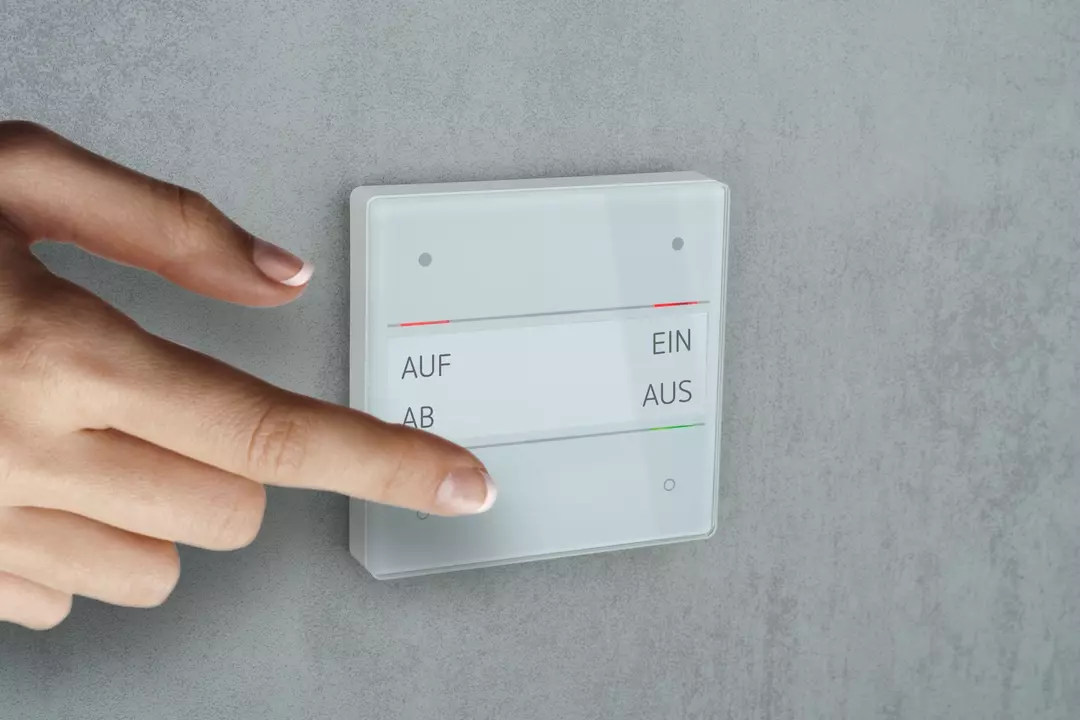

The Theben iON 104 KNX Glass Touch Sensor is a high-quality wall-mounted control device featuring 4 buttons, 4 individually configurable status LEDs and an integrated temperature sensor. With support for KNX Data Secure, it ensures safe commissioning and secure communication in modern KNX installations. It enables control of switching, dimming, blinds, scenes, colour control, value transmission, operating modes and sequence functions.
Main Features
- Glass touch sensor with 4 buttons and 4 status LEDs
- Integrated temperature sensor for visualisation and climate control
- Supports KNX Data Secure for secure communication
- Control of lighting, dimming, blinds, scenes, colour control and more
- Up to 3 different telegrams per button
- Configurable actions for short press, long press or double click
- Status LEDs individually adjustable (colour, brightness, blinking or pulsing)
- Automatic LED brightness control based on ambient light conditions
- Tamper/dismantling monitoring via KNX object
- Dual installation possible with accessory 9070822
- Includes transparent cover for custom labelling
Technical Data
| Product References | iON 104 KNX G WH (4969284), iON 104 KNX G BK (4969294) |
| EAN Codes | - |
| Power Supply | KNX bus voltage, ≤ 12.5 mA |
| Connection | KNX bus terminal |
| Colour | White (similar to RAL 9016) / Black |
| Operating Temperature | -5 °C ... +45 °C |
| Protection Rating | IP20 |
| Protection Class | III |
Important Notes
- All functions are configured via ETS5 or later.
- Not suitable for humid or wet environments (IP20).
- KNX Data Secure must be considered during system planning.
- Compatible with standard wall boxes; dual installation possible with accessory 9070822.
- Status LEDs and buttons fully configurable via ETS.
