AMUN 716 S KNX – CO2, humidity, temp & air pressure sensor, KNX
€254,64 Excl. tax
€442,86 Excl. tax
€308,11 Incl. tax €535,86 Incl. tax. Out of stock, but available
€308,11 Incl. tax €535,86 Incl. tax. Out of stock, but available
Sensor for CO2, temperature, humidity and air pressure. With 3 adjustable thresholds, room temperature control, 4 binary inputs and multicolour LED indication. KNX wall mounting. Read more
Specifications
Brand:
Theben
Article number:
7169230
EAN:
4003468710197
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
CO₂ Sensor for KNX with Room Temperature Controller, Humidity and Air Pressure Measurement
Art. No.: 7169230
Product Description
The AMUN 716 S KNX is a versatile wall-mounted sensor for measuring CO2 concentration, relative humidity, temperature, and barometric air pressure. The device includes an individual room temperature controller, offering maximum flexibility for monitoring and controlling the indoor climate. Three independently configurable threshold values for both CO2 concentration and relative humidity enable precise and automatic control of heating actuators or thermal drives.
Application
- Suitable for monitoring and controlling indoor climate in offices, schools, meeting rooms, and residential buildings
- For integration into KNX building automation systems
- Ideal for controlling ventilation, heating, or cooling based on real-time measured values
Main Features
- Measures CO2 concentration (300 - 5000 ppm), relative humidity (1 - 100 % RH), temperature (-5°C to +45°C), and barometric air pressure (30,000 - 110,000 Pa)
- Three independently adjustable threshold values for CO2 concentration and humidity
- Individual room temperature controller

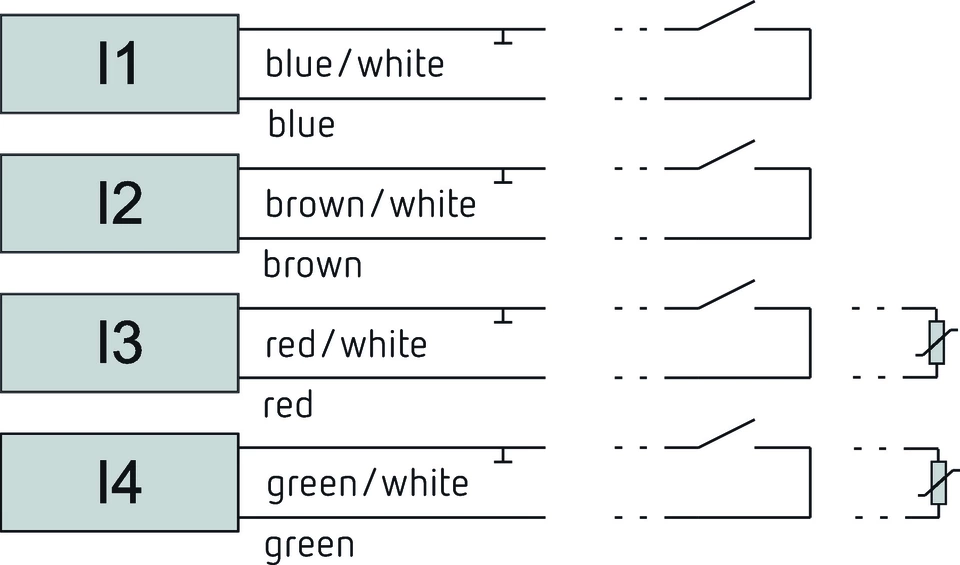

- Four binary inputs for conventional switches or pushbuttons (e.g., switching/dimming, blind control, connection for external temperature sensor, window contact, or occupancy signal)
- Manual switching of operating modes: comfort, standby, night setback, frost protection
- Multicolour LEDs to indicate current mode, heating, or cooling
- CO2 setting range: 300 - 5000 ppm
- Scope of delivery: 2 interchangeable front plates (absolute scale and relative scale)
Technical Specifications
- Power supply: KNX bus voltage, ≤15 mA
- CO2 measuring range: 300 - 5000 ppm
- Temperature setting range: -5°C to +45°C
- Humidity measuring range: 1 - 100 % RH
- Air pressure measuring range: 30,000 - 110,000 Pa
- Max. interface extension: 30 m
- Contact voltage: 5 V (internal supply)
- Contact current: 0.5 mA
- Ambient temperature: 5°C to 40°C
- Mounting type: Wall mounting
- Display: Multicolour LEDs
- Degree of protection: IP 20
- Protection class: III (according to EN 60 730-1)
Important Notes
- Only suitable for use indoors in dry environments
- Installation exclusively by qualified personnel according to applicable KNX and electrical regulations
- Not suitable for safety-critical applications where a failure could directly result in health or safety risks
