USB Interface KNX – Long Frames (from ETS 5)
€152,03 Excl. tax
€264,40 Excl. tax
€183,96 Incl. tax €319,92 Incl. tax. Out of stock, but available
€183,96 Incl. tax €319,92 Incl. tax. Out of stock, but available

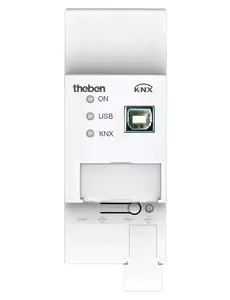

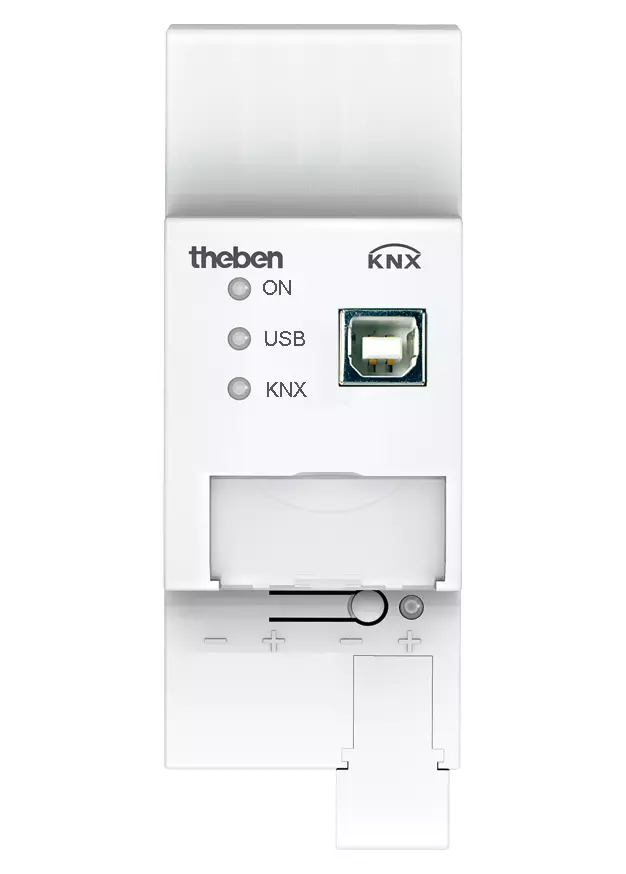

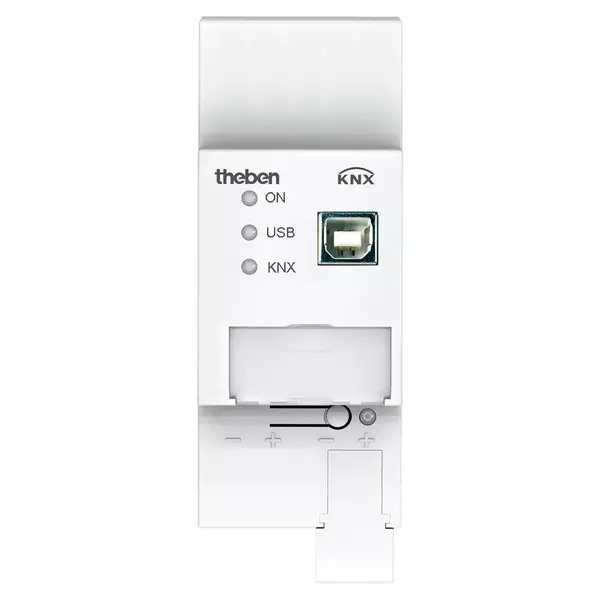

USB interface for communication between PC and KNX system. Supports Long Frames (from ETS 5) and KNX IP Secure. DIN rail mounting, 2 modules wide. Read more
Specifications
Brand:
Theben
Article number:
9070397
EAN:
4003468903995
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Datasheet
USB Interface KNX, part no. 9070397
Application
The USB Interface KNX from Theben enables efficient and secure communication between a PC and a KNX installation. It is used for programming, parameter setting, and testing of KNX systems via ETS software (from ETS 5 onwards), with full support for Long Frames and KNX IP Secure.
Features
- USB interface for direct communication between PC and KNX system
- Supports Long Frames from ETS 5 onwards
- Compatible with KNX IP Secure for enhanced security
- LED indicators for USB and KNX status
- Compact design for easy DIN rail mounting (2 modules wide)
Technical specifications
| Operating voltage KNX: | Via KNX bus, ≤ 10 mA |
| Width: | 2 modules (TE) |
| Mounting type: | DIN rail (35 mm) |
| Connection type: | KNX bus terminal and USB port |
| Indicators: | LED for KNX activity and LED for USB connection |
| Ambient temperature: | -5 °C to +45 °C |
| Storage temperature: | -25 °C to +55 °C |
| Protection class: | Class II according to EN 60 730-1 |
| Degree of protection: | IP 20 |
Important note
ETS 5 or higher is required for full functionality of this interface. When using older ETS versions, Long Frames are not supported, which may limit performance in larger KNX installations.
