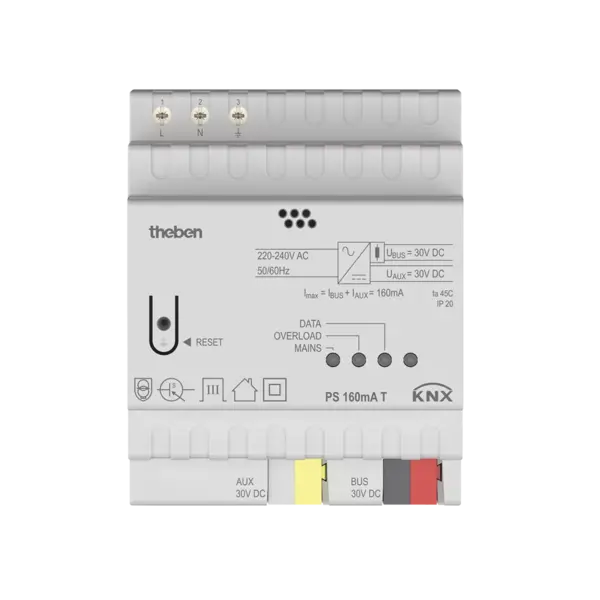

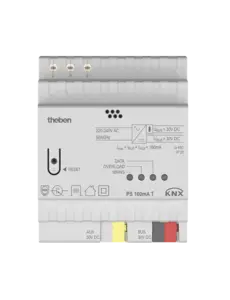

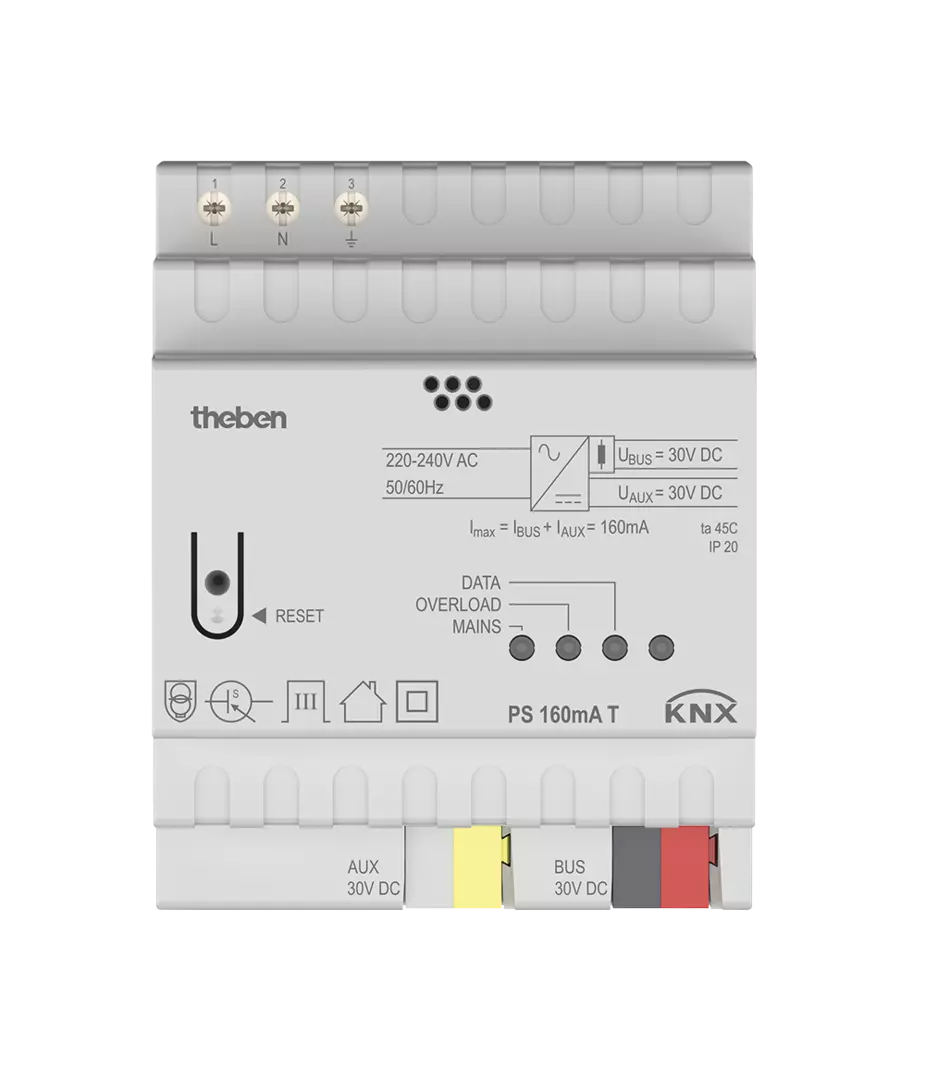

PS 160 mA T KNX – Power supply and monitoring for KNX systems

Name: Theben PS 160 mA T KNX – Power supply and monitoring for KNX systems
Brand: Theben
Price: 87.20 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€87,20 Excl. tax €151,64 Excl. tax
€105,51 Incl. tax €183,48 Incl. tax. Out of stock, but available

Unit price: €87,20 / Piece

Supplies and monitors KNX system voltage with 160 mA and 30 V DC. Features reset button, short-circuit protection, and DIN rail mounting. One line supported. Read more

Specifications

Brand:

Theben

Article number:

9070956

EAN:

4003468902271

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

PS 160 mA T KNX – KNX Power Supply and Monitoring

Item No.: 9070956

Application

The PS 160 mA T KNX is a compact power supply unit for KNX installations, providing and monitoring the system voltage. Ideal for smaller systems or as a line power supply in larger KNX structures. With integrated short-circuit protection and a reset function, this device is reliable and easy to use.

Features

Supplies KNX bus with a nominal current of 160 mA
Output voltage of 30 V DC (SELV)
Additional 30 V DC auxiliary voltage available
Reset button for manual 20-second bus reset
Built-in choke for direct connection to one KNX line
Continuous short-circuit protection on KNX output
Clear status indication via LED

Technical Data

KNX operating voltage: Via KNX bus, ≤ 12 mA
Mains voltage: 230 V AC – 240 V AC, 50/60 Hz
Frequency: 50 – 60 Hz
Standby consumption: ≤ 0.8 W
Width: 4 modules (DIN rail, 72 mm)
Mounting: DIN rail (TH35 according to EN 60715)
Connection type: KNX bus terminal
KNX output: 1 line with integrated choke
KNX nominal voltage: 30 V DC, ±2 V, SELV
KNX nominal current: 160 mA
Max. short-circuit current: 0.5 A (continuous)
Mains failure bridging time: ≥ 130 ms
Ambient temperature: -5 °C to +45 °C
Protection class: II (according to EN 60730-1)
Degree of protection: IP 20 (for dry indoor areas)

Important Note

This power supply is designed for use with one KNX line and must not be connected in parallel with other power supplies without galvanic isolation. Ensure proper installation and cabinet ventilation for safe and optimal performance.
