IP-interface IP en KNX, tunneling server, PoE
€210,97 Excl. tax
€366,90 Excl. tax
€255,27 Incl. tax €443,95 Incl. tax. Out of stock, but available
€255,27 Incl. tax €443,95 Incl. tax. Out of stock, but available
IP interface for KNX networks with tunneling, powered via 12–30 V DC or PoE. Status LEDs, DIN-rail mounting, compact design, IP20, KNX certified. Read more
Specifications
Brand:
Theben
Article number:
9070981
EAN:
4003468901991
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
IP Interface IP and KNX, tunneling server, PoE
Art. No.: 9070981
Product Description

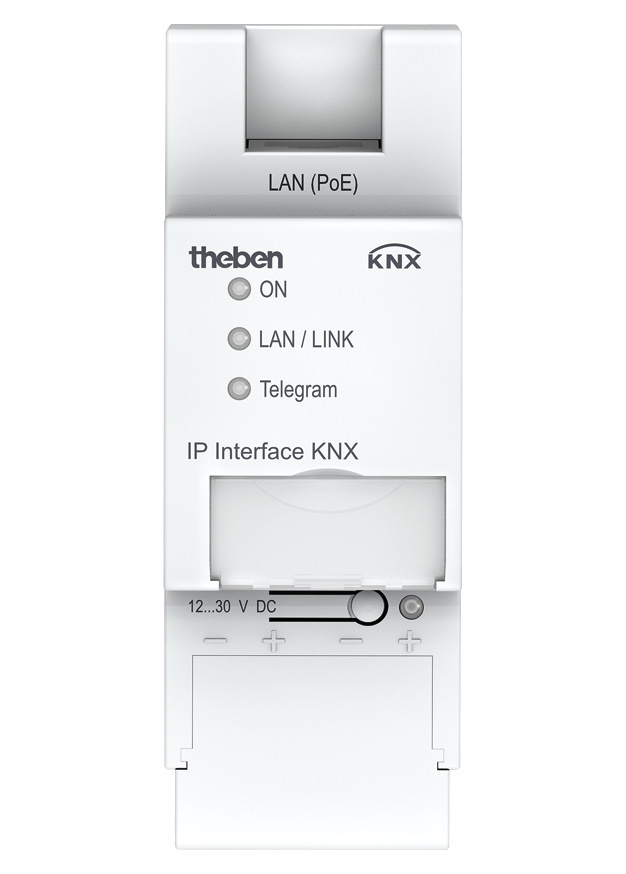

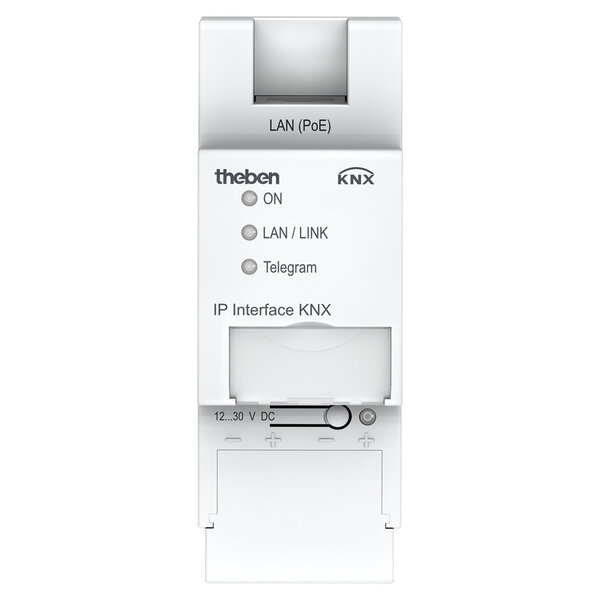

The Theben IP Interface IP and KNX enables fast and reliable integration of KNX installations with IP networks. This tunneling server uses the KNXnet/IP protocol and can be powered via 12–30 V DC or PoE (Power over Ethernet, IEEE 802.3af Class 1). Thanks to its compact design, DIN-rail mounting and multiple status LEDs, installation and maintenance are simple and clear.
Applications
- Connects KNX installations with IP networks for tunneling communication
- Ideal for building automation and remote management integration
- Supports both auxiliary voltage and PoE power supply, flexible installation
- Compact design for installation in distribution panels (2 modules, 18 mm each)
Main Features
- KNXnet/IP protocol (Tunneling), KNX certified
- Power supply: 12–30 V DC (+10% / -15%) or PoE (IEEE 802.3af Class 1)
- Low power consumption: max. 1.8 W, max. 120 mA at 12 V
- Status LEDs: red (address), green (“On”), yellow (“LAN/Link”), yellow (“Telegram”)
- Compact halogen-free plastic housing, grey
- IP20 protection (DIN EN 60529), class II (DIN EN 61140)
- Temperature range: operation -5…+45°C, storage -25…+55°C, transport -25…+70°C
- Humidity up to 95% (no condensation), suitable up to 2,000 m altitude
- DIN-rail mounting 35 mm (DIN EN 60715), installation depth 68 mm, width 36 mm (2 modules)
- KNX safety extra-low voltage SELV 30 V DC
- KNX connection via terminal, LAN connection via RJ45 (10/100BaseT, AutoSensing)
- CE marked, compliant with EMC and Low Voltage Directives
Technical Data
| Power supply: | 12–30 V DC (+10% / -15%) or PoE (IEEE 802.3af Class 1) |
| Power consumption: | Max. 1.8 W |
| Current consumption (auxiliary): | Max. 120 mA at 12 V |
| Current consumption KNX: | < 10 mA |
| Protection: | IP20 (DIN EN 60529) |
| Protection class: | II (DIN EN 61140) |
| Dimensions (H x W x D): | 90 x 36 x 64 mm |
| Installation width: | 2 modules of 18 mm |
| Mounting: | 35 mm DIN-rail (DIN EN 60715) |
| Ambient temperature: | Operation: -5…+45°C, storage: -25…+55°C, transport: -25…+70°C |
| Humidity: | Max. 95% (no condensation) |
| Max. installation depth: | 68 mm |
| Weight: | 0.1 kg |
| Housing color: | Grey, plastic, halogen-free |
| Approval: | KNX according to EN 50090-1, -2; CE compliant |
Important Note
This IP interface supports the KNXnet/IP protocol (tunneling) for efficient communication between KNX and IP networks. For safe and stable operation, installation should be carried out according to KNX guidelines, with power supplied via PoE or a suitable DC source. Always check the Theben website for software updates and compatibility. Not suitable for outdoor use (IP20).
