iON 108 KNX room controller with Bluetooth & IONplay app
€121,81 Incl. tax €211,83 Incl. tax. Out of stock, but available
Specifications
Information

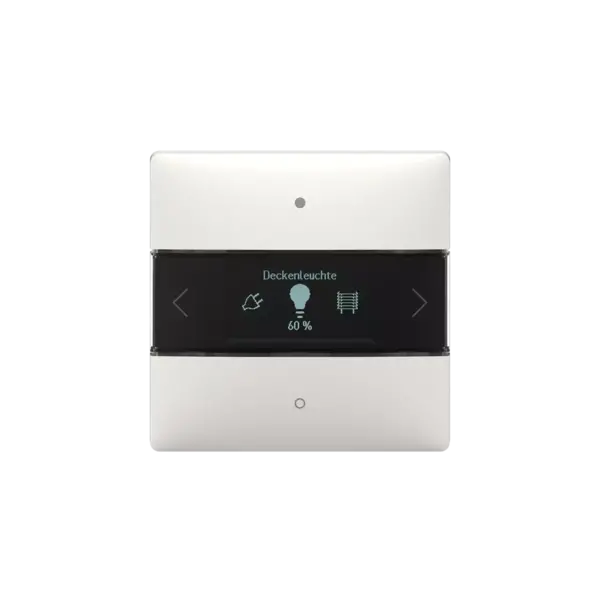

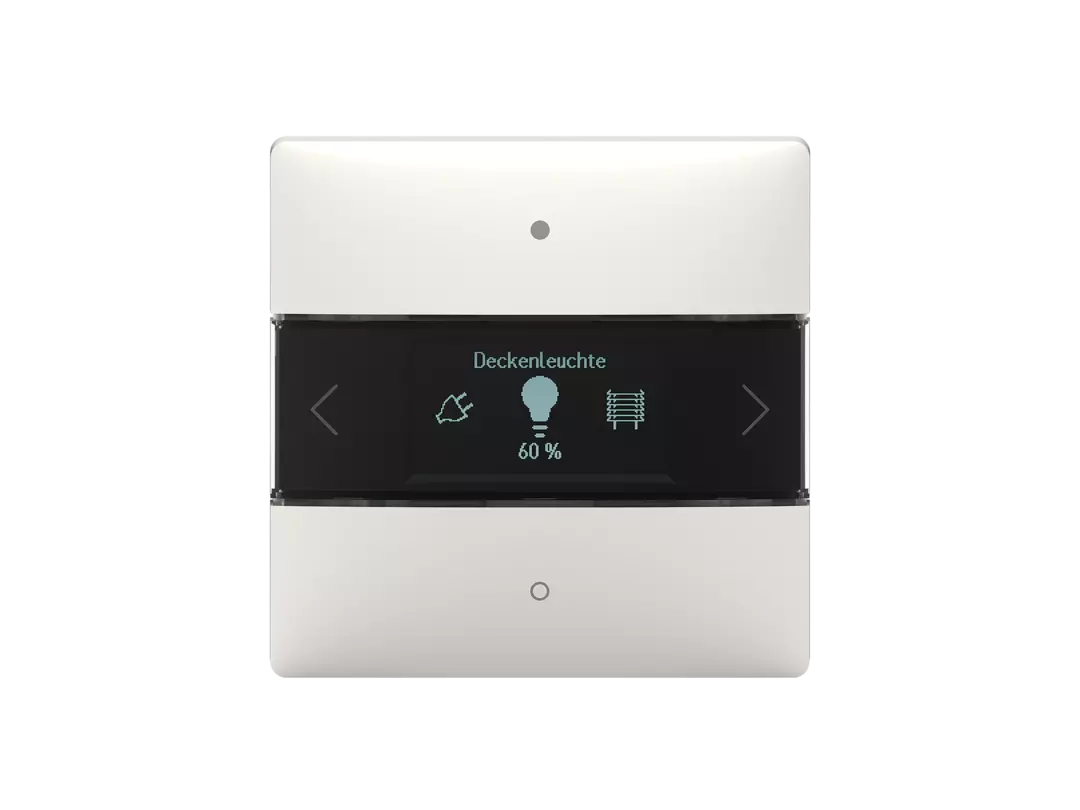

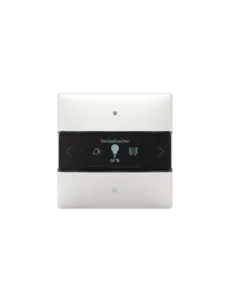

Theben iON 108 KNX Room Controller
Available Variants
The iON 108 KNX touch sensor is available in the following versions:
- iON 108 KNX white (RAL 9016), item no.: 4969238

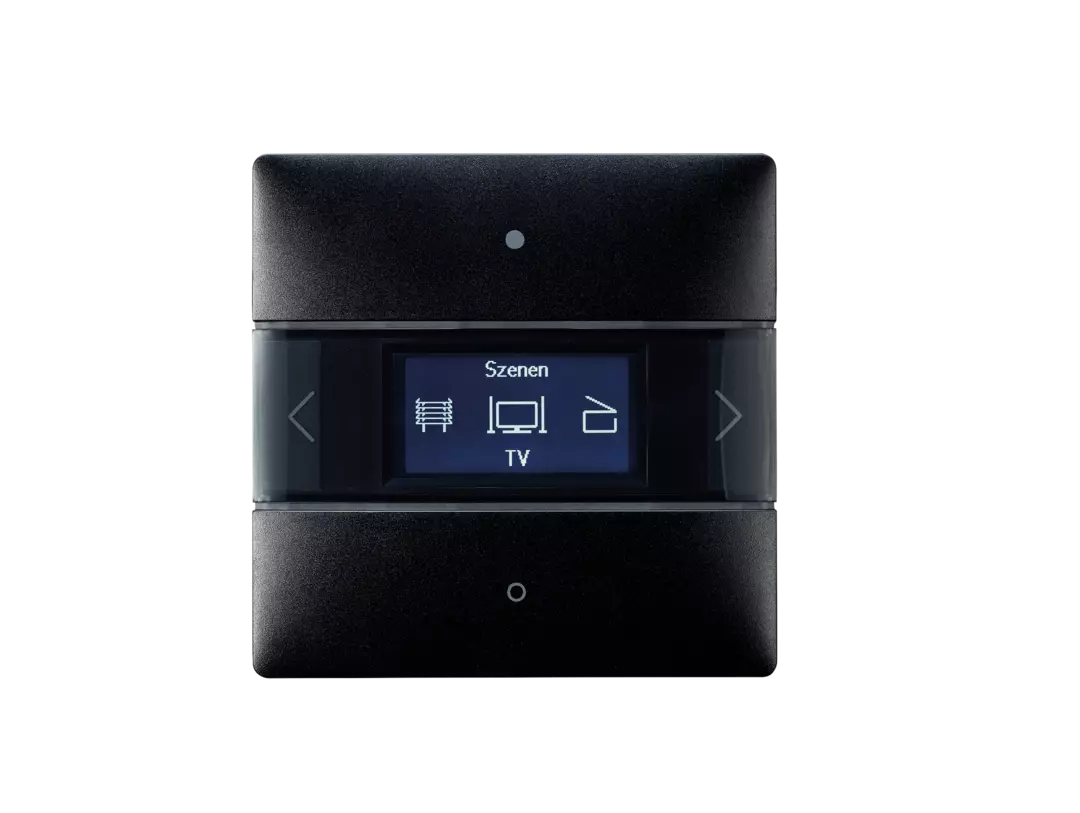

- iON 108 KNX BK black (RAL 9005), item no.: 4969248

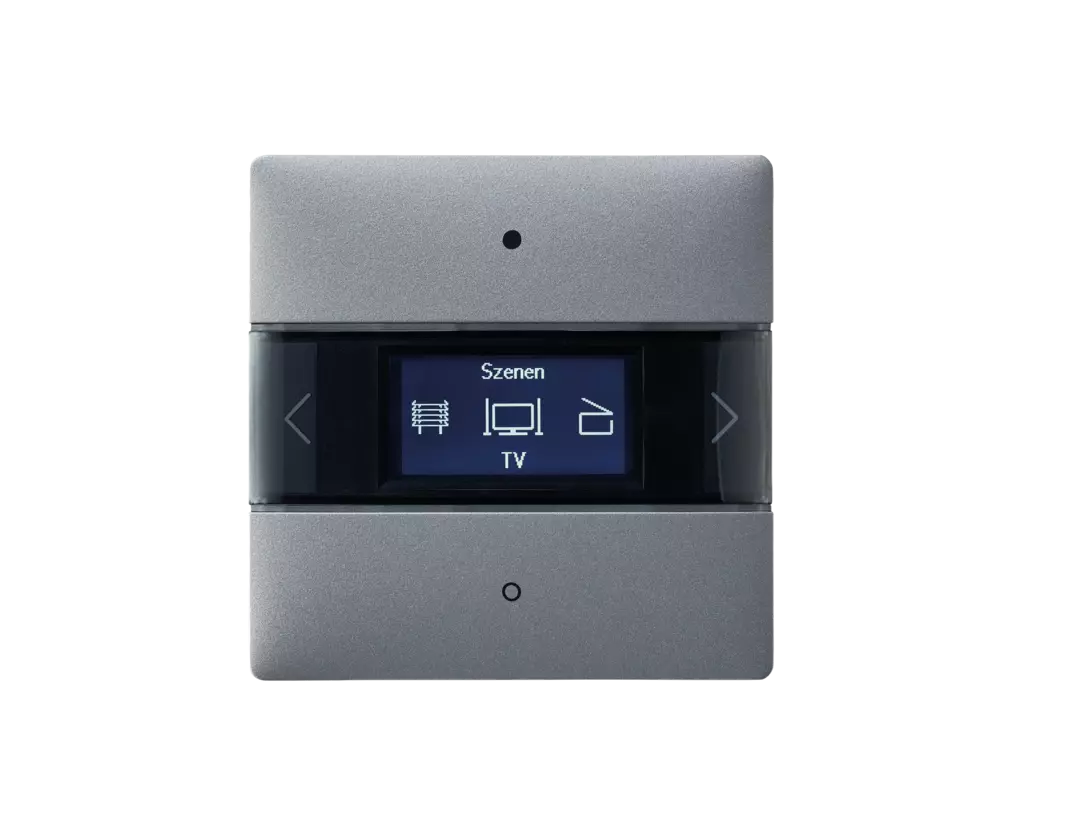

- iON 108 KNX SR silver (RAL 9006), item no.: 4969268
Application
The Theben iON 108 KNX is a versatile and stylish room controller for wall mounting in KNX building automation systems. The device features a clear LCD display and four mechanical directional buttons (up, down, left, right), enabling manual control of up to 20 freely configurable functions such as lighting, shading, HVAC, and scene control. The iON 108 combines intuitive operation with a modern design.
Main Features
- 4 mechanical directional buttons (up, down, left, right) with tactile feedback
- Control of up to 20 freely configurable functions (switching, dimming, blind control, scene recall, value entry, etc.)
- Large LCD display for clear visualization of functions and status
- Integrated temperature sensor for room climate control
- Status LEDs configurable via ETS (e.g. day/night, presence/absence)
- Compact, modern design – suitable for standard flush-mounted box (Ø 60 mm)
- Bus communication via KNX TP – no additional power supply required
Technical Data
| Power supply: | Via KNX bus (21–32 VDC) |
| Power consumption: | <10 mA |
| Mounting method: | Wall mounting in standard flush box (Ø 60 mm) |
| Dimensions (W × H × D): | 86 × 86 × 18 mm (without box) |
| Protection class: | IP20 |
| Ambient temperature: | -5 °C to +45 °C |
| Temperature sensor: | Internal |
| Operation: | 4 mechanical buttons + LCD display |
| Display: | Backlit LCD for function and status display |
| KNX interface: | TP (Twisted Pair), compatible with ETS5 and higher |
Important Notes
- Full functionality requires programming via ETS (version 5 or higher).
- For indoor use only in dry environments, according to KNX installation standards.
- Not suitable for direct connection to 230 V mains – KNX bus only.
- The LED indicators and LCD display are fully configurable via ETS and can visualize operating modes and alerts.
