theRonda S360 KNX AP – Presence detector, 360°, Ø9m, surface mount

Name: Theben theRonda S360 KNX AP – Presence detector, 360°, Ø9m, surface mount
Brand: Theben
Price: 109.52 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€109,52 Excl. tax €190,47 Excl. tax
€132,52 Incl. tax €230,47 Incl. tax. Out of stock, but available

Unit price: €109,52 / Piece

KNX ceiling presence detector with 360° range up to Ø9m, automatic light and presence control, mixed light measurement, IP54. Available in white, grey, and black. Read more

Specifications

Brand:

Theben

Article number:

2089550

EAN:

7612748006447

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Theben website item no. 2089550
Link to Theben website item no. 2089551
Link to Theben website item no. 2089552

theRonda S360 KNX AP – Presence detector for ceiling mounting

Application

Available variants

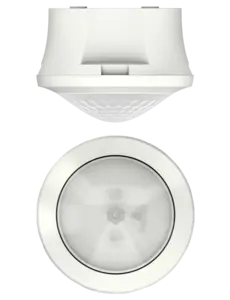

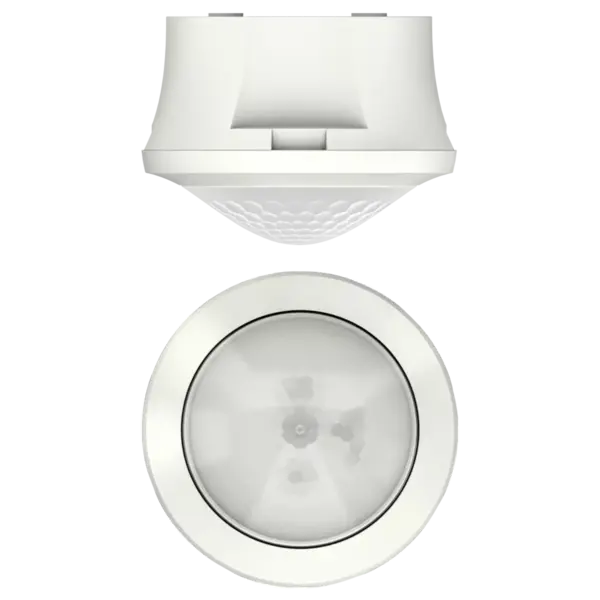

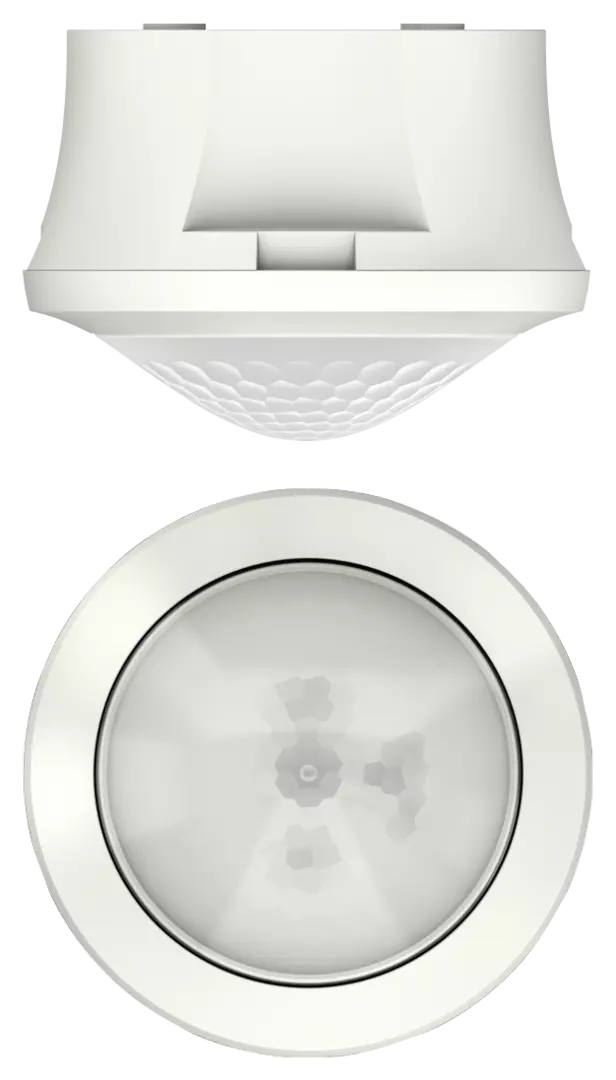

1/ Item no.: 2089550 – theRonda S360 KNX AP WH – white

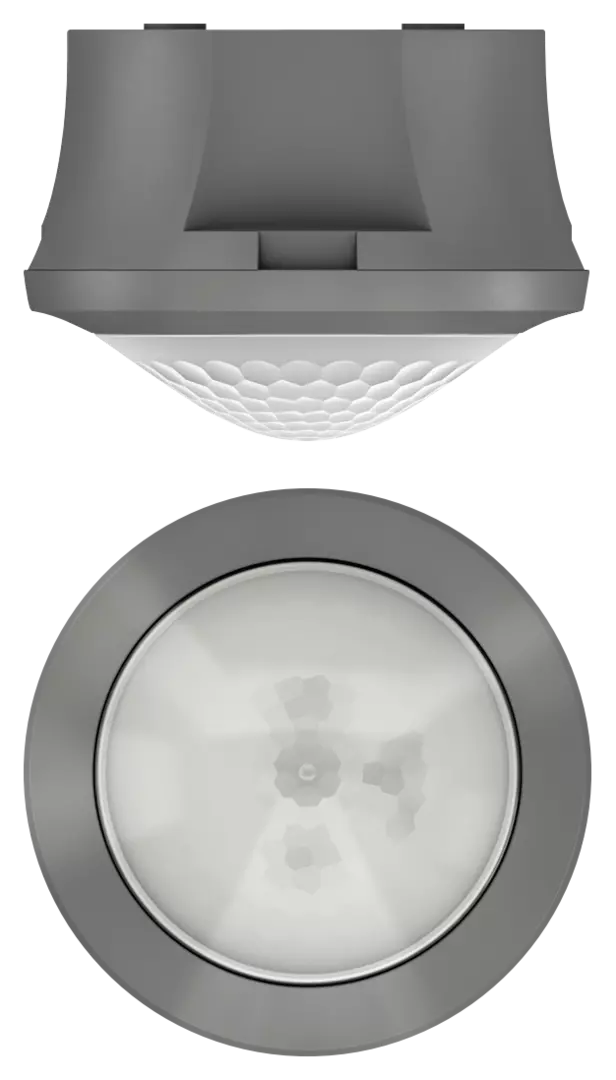

2/ Item no.: 2089551 – theRonda S360 KNX AP GR – grey

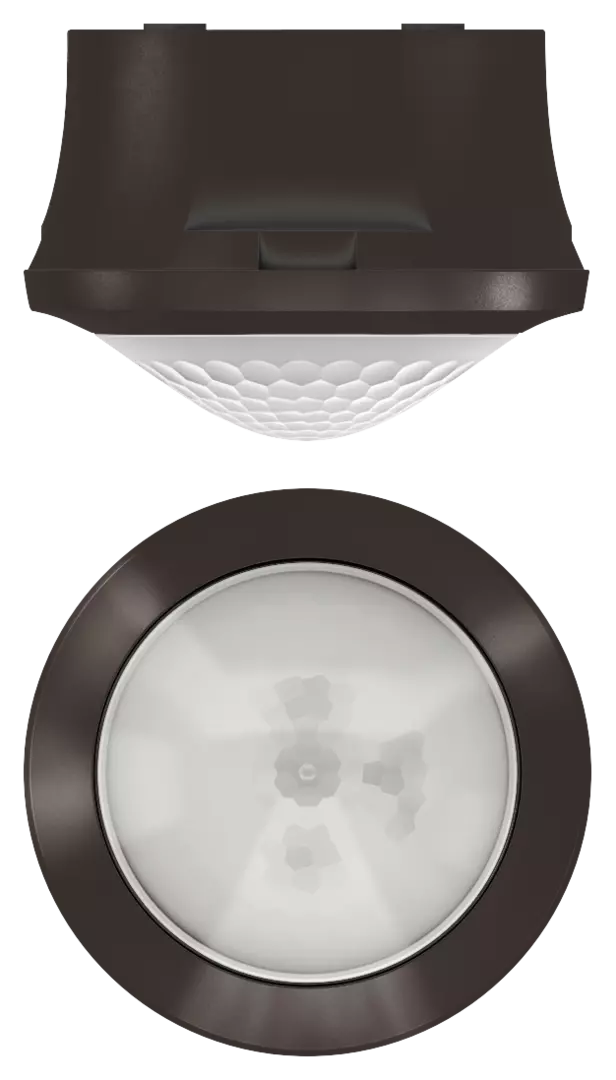

3/ Item no.: 2089552 – theRonda S360 KNX AP BK – black

The theRonda S360 KNX AP is an advanced passive infrared presence detector for ceiling mounting, suitable for KNX building automation. Ideal for efficient and intelligent lighting and climate control in offices, meeting rooms, schools, corridors, sanitary facilities, and other indoor areas.

Features

Passive infrared presence detector for ceiling mounting
360° round detection area, up to Ø 9 m (max. 64 m²)
Automatic presence and light-dependent control of lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen, incandescent, and LEDs
2 light channels (C1, C2) for switching or constant light control, each with stand-by function (orientation light)
Dimmable lighting in switching mode with stand-by function
Fully or semi-automatic operation (adjustable)
Light switch threshold and desired brightness adjustable in lux via parameter, object, or remote control
Teach-in (learning) of light switch threshold and desired brightness
Shortening of delay time possible for brief presence
Manual override possible via KNX telegram or remote control
2 presence channels (C4, C5), individually parameterizable
Adjustable switch-on delay and delay time (light: 30 s – 60 min; presence: 10 s – 120 min)
Room correction factor for compensating light measurement adjustable
Adjustable detection sensitivity
Test mode for function and detection area check
Scene function (for setting different light scenarios)
Parallel connection of multiple presence detectors possible (Master/Slave or Master/Master)
User remote control "theSenda S" (optional)
Management remote control "SendoPro868-A" (optional)
Installation remote control "theSenda P" (optional)

Technical specifications

Mounting height: 2 – 4 m (minimum 1.7 m)
Detection angle: 360°
Detection area: up to Ø 9 m (max. 64 m², typically 50 m² at Ø 8 m)
Light measurement range: 10 – 3000 lx
Light delay time: 30 s – 60 min (adjustable)
Presence delay time: 10 s – 120 min (adjustable)
Presence switch-on delay: 10 s – 30 min / inactive (adjustable)
Connection type: KNX bus terminal
Mounting type: Ceiling mounting (surface-mounted)
Lamp types: Energy-saving lamps, fluorescent lamps, incandescent, halogen lamps, LEDs
Light measurement: Mixed light measurement
Ambient temperature: -15°C to +50°C
Color: White (2089550), Grey (2089551), Black (2089552)
Protection class: IP54
Dimensions: approx. Ø 103 x 56 mm
Weight: approx. 110 g

Important notes

For use only in KNX systems and indoor areas.
Always refer to the manufacturer's manual for correct operation and installation.
Remote controls are available as options.
The detection area depends on the mounting height and environment.
