KNX sun shading actuator SA 16MDC SMI LoVo REG | 16 SMI or SMI LoVo
€336,69 Incl. tax €500,21 Incl. tax. Out of stock, but available
Specifications
Information

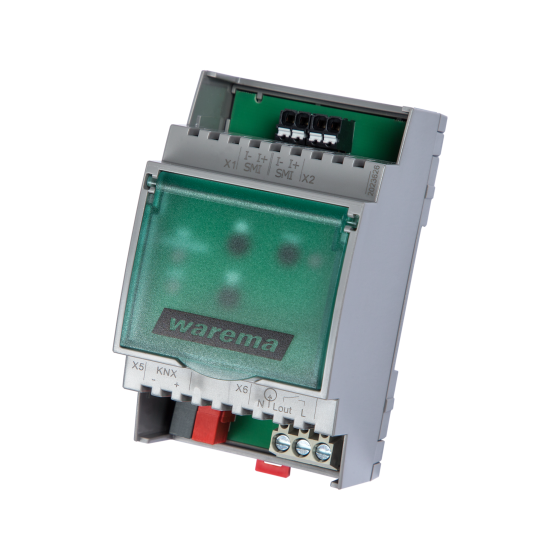

KNX Sun Shading Actuator SA 16MDC SMI LoVo REG
16-fold SMI actuator or SMI LoVo, Rail mounting (REG)
art.no. 2022489
Product Description
The KNX Sun Shading Actuator SA 16MDC SMI LoVo REG from WAREMA enables independent control of up to 16 SMI or SMI LoVo drives in up to 16 groups. With flexible parameterization, preconfigured settings, and support for manual priority operation via Bluetooth LE, this actuator is ideal for a wide range of KNX building automation applications. The actuator is SMI Standard 3.0 certified, offering comprehensive status monitoring, reliable operation, and simple commissioning. During waiting periods, the shading remains in the user-set position and is not changed by automatic systems.
Installation is via rail mounting (REG), allowing for quick and tidy integration in electrical distribution panels. The actuator features emergency/manual operation via buttons on the device, ensuring sun shading can be controlled even if the KNX system fails.
Main Product Features
- Individual control and parameterization of up to 16 SMI or SMI LoVo drives in 16 groups
- SMI Standard 3.0 certified
- Flexible parameterization and preconfigured basic settings
- Status monitoring via comprehensive status objects
- Manual priority operation via Bluetooth LE and local buttons (emergency/manual control)
- Limitation of manual operation possible (e.g., cut-off function)
- Output type preselection for various sun shading products
- Highest positioning accuracy through extensive motor property settings
- Support via ETS DCA app and KNX actuator app for smartphones
- SMI drives switchable via integrated relay to avoid permanent standby current
Technical Data
| Operating voltage | 230 V AC |
|---|---|
| Current consumption | 5 mA |
| Connection type | Plug terminal |
| Output | 24 V DC |
| Switching capacity per output | 16 A (unprotected: 16 drives) |
| SMI interface | Max. 16 x 24 V DC SMI LoVo drives |
| Protection rating | IP 30 |
| Protection class | I |
| Radio interface | Bluetooth LE |
| Mounting type | Rail mounting (REG) |
| Mounting width | 3 modules (3 TE) |
Important Notes
- Only use certified SMI or SMI LoVo drives for proper operation.
- Parameterization and commissioning must be carried out via ETS software.
- Manual operation via Bluetooth LE and local buttons is intended for installation, service or emergency control.
- Ensure proper installation according to regulations and protect the device from moisture and dust.
- The actuator supports avoidance of permanent standby current by means of switchable relays.
- All electrical connections must be de-energized before installation or maintenance work.
