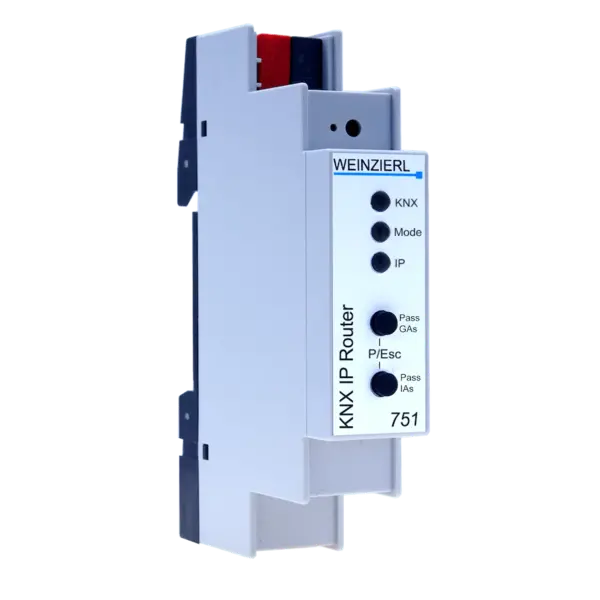

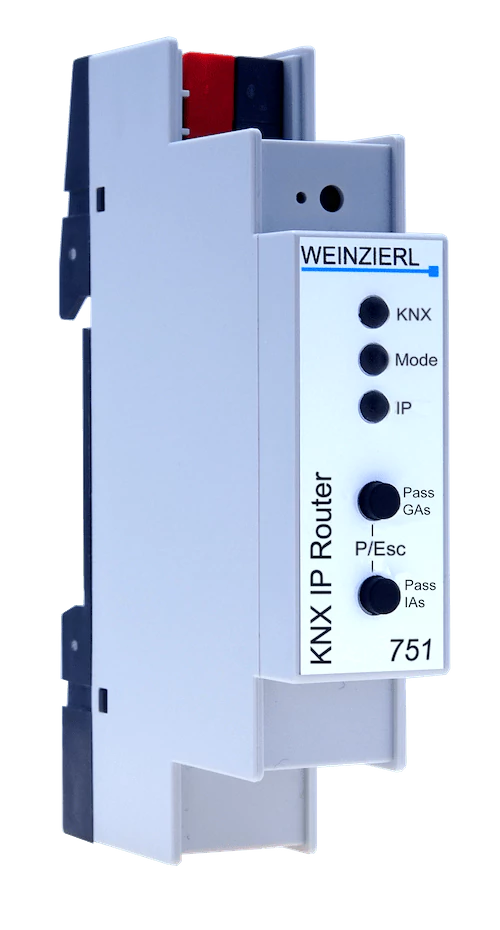

WEINZIERL 5243 KNX IP Router for DIN Rail (REG)
€247,02 Excl. tax
€358,00 Excl. tax
€298,89 Incl. tax €433,18 Incl. tax. Out of stock, but available
€298,89 Incl. tax €433,18 Incl. tax. Out of stock, but available
Compact KNX IP router (1 TE) for line coupling via LAN and ETS interface. Bus powered, with filter table, telegram buffer, and diagnostic LEDs. Read more
Specifications
Brand:
Weinzierl
Article number:
5243
EAN:
4260262772435
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Product Description – KNX IP Router 751
Part No. 5243
Application
The Weinzierl KNX IP Router 751 is a compact, bus-powered KNX IP router with a width of only 1 module (18 mm). It enables telegram forwarding between KNX lines via IP (LAN) and serves as a programming interface for ETS®. With an extended filter table, telegram buffer, KNXnet/IP support (core, tunneling, routing, device management), and diagnostic LEDs, this device is ideal for scalable KNX installations.
Features
- Compact design: only 1 module (18 mm)
- Telegram forwarding over LAN as IP backbone
- KNX IP interface for ETS programming (tunneling)
- Up to 5 simultaneous KNXnet/IP tunneling connections
- Extended filter table for main groups 0 to 31
- Buffer memory for up to 150 telegrams
- IP configuration via DHCP or manually through ETS
- Supported protocols: ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP, Auto IP
- KNX interface protocol: cEMI
- KNX device model: 0x091A
Technical Data
- Power supply: via KNX bus, approx. 15 mA
- KNX bus: standard red/black terminal
- LAN interface: RJ-45 Ethernet (10BaseT, 10 Mbit/s)
- Max. APDU length: 55 bytes
- Medium type: IP/TP
- Protection rating: IP20 (according to EN 60529)
- Operating temperature: -5 °C to +45 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 5 % to 93 % (non-condensing)
- Housing: Plastic (PC), DIN rail mounting (1 module = 18 mm)
- Weight: approx. 40 g
- Installation: Fixed installation in dry indoor environments or distribution boards
Control and Diagnostics
- 2 buttons for functions and reset
- 3 multicolor status LEDs for diagnostics and operating states
- KNX programming button with red LED
Compliance and Standards
- CE marked
- EMC Directive: 2014/30/EU
- RoHS Directive: 2011/65/EU
- Standards:
- EN 63044-3:2018
- EN 63044-5-1/2/3:2019
- EN 61000-6-2:2019
- EN 61000-6-3:2021
- EN 63000:2018
Important Note
Note: The KNX IP Router 751 is intended for permanent DIN rail mounting in dry indoor areas or distribution boards. It is fully powered via the KNX bus—no external power supply is required. Full functionality requires proper configuration in ETS, including IP assignment.
