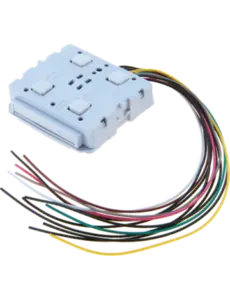

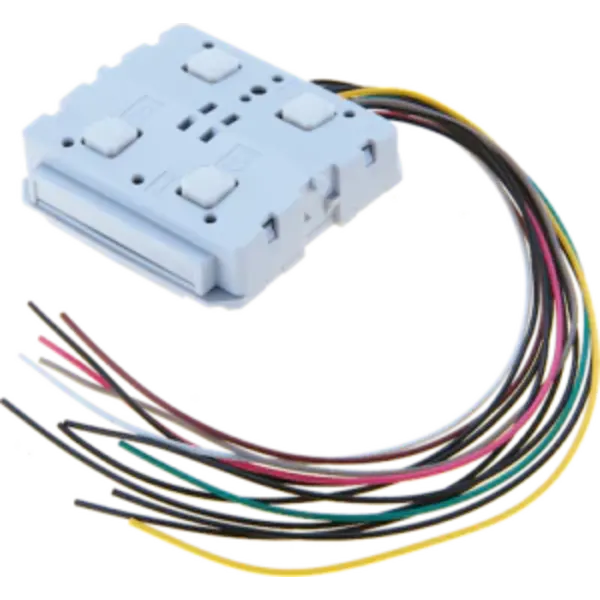

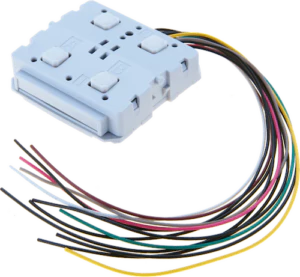

5385 KNX push-button interface | 4-fold, potential-free
€55,13 Excl. tax
€79,90 Excl. tax
€66,71 Incl. tax €96,68 Incl. tax. Out of stock, but available
€66,71 Incl. tax €96,68 Incl. tax. Out of stock, but available
KNX push-button interface with 4 potential-free inputs for switches/contacts, 2 LED outputs, test buttons, status LEDs and KNX Data Security support. Read more
Specifications
Brand:
Weinzierl
Article number:
5385
EAN:
4260262773852
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Product Description – KNX Push Button Interface 5385 secure
Art. No. 5385
Application
The KNX TP Push Button Interface 420 secure is a compact push button interface for the KNX bus. It serves as a binary input for connecting up to four conventional push buttons or potential-free contacts. Additionally, it offers two outputs for LED indication. A pluggable connection cable is included. Built-in buttons and LEDs allow easy testing of configuration.
Functions
- 4 independent inputs for potential-free contacts (binary)
- 2 outputs for LEDs (3.3 V⎓, internal resistor 2 kOhm)
- Functions: switching, dimming, blind control, value transmitter, scene and color control, sequences
- Each channel configurable individually
- 10 logic or timer functions integrated
- Flexible use of channels for multiple functions
- Supports KNX Data Security
Technical Data
- Power supply: via KNX bus, approx. 3 mA
- Dimensions without KNX terminal: 40 × 40 × 11 mm
- Height with KNX terminal: 22 mm
- Connection cable: 150 mm, pluggable
- Inputs: 4 binary inputs, SELV, max. cable length 1 m
- Outputs: 2 LED outputs, 3.3 V⎓, not galvanically isolated
- Controls: 4 test buttons, 6 green status LEDs
- Programming: KNX programming button with red LED
- Mounting: For dry indoor installations, suitable for standard PTM insets
- Protection class: IP20 (according to EN 60529)
- Max. tick rate: 100 ticks per second
Important Note
Note: This device supports KNX Data Security. Encrypted communication must be enabled in ETS. Observe correct polarity when connecting to the KNX bus.
