5465 – KNX Power Supply 640 mA with Integrated IP Router
€380,68 Excl. tax
€551,70 Excl. tax
€460,62 Incl. tax €667,56 Incl. tax. Out of stock, but available
€460,62 Incl. tax €667,56 Incl. tax. Out of stock, but available
Power supply with choke, integrated KNX IP router and IP interface. Supports KNX Security, tunneling, routing and provides auxiliary voltage in addition to bus voltage. Read more
Specifications
Brand:
Weinzierl
Article number:
5465
EAN:
4260262774651
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

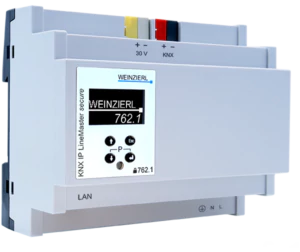

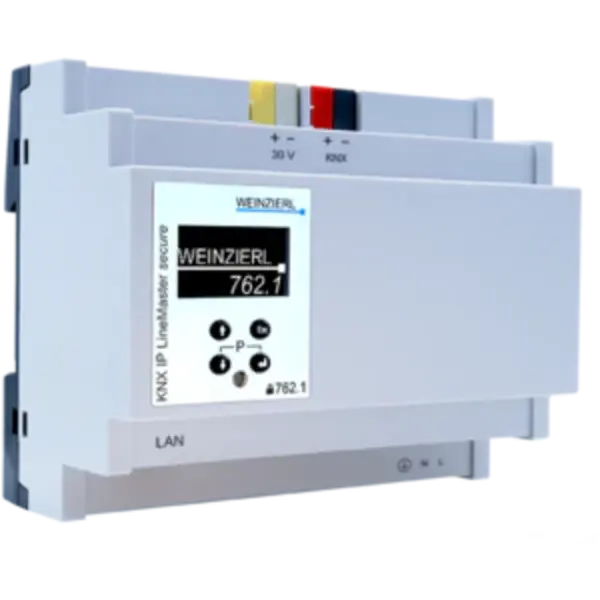

Product Description – KNX IP LineMaster 762.1 secure
Art. No. 5465
Application
The Weinzierl KNX IP LineMaster 762.1 secure combines the essential functions of a KNX bus line in a single compact device: KNX power supply with choke, KNX IP router, and KNX IP interface. Ideal for powering, linking, and configuring KNX lines over an IP backbone.
Features
- Power supply for KNX bus with integrated choke (30 V⎓, SELV)
- Built-in KNX IP router for line coupling via LAN (IP)
- KNX IP interface for direct ETS programming (tunneling)
- Supports KNX Security with AES-128 encryption
- Up to 8 simultaneous KNXnet/IP tunneling connections
- Extended filter table for main groups 0 to 31
- Buffer memory for up to 150 telegrams
- Auxiliary voltage available (30 V⎓, SELV)
- IP configuration via DHCP or manually (via ETS)
- OLED display with 4 buttons for local diagnostics
- Full support for KNXnet/IP: core, tunneling, routing, and device management
- KNX device model: 0x091A
Technical Data
- Input voltage: 230 V∿, 50 Hz
- Power loss (no load): approx. 1.2 W
- Max. power consumption: 48 W
- KNX output: 30 V⎓, SELV, 640 mA (including auxiliary voltage)
- Auxiliary voltage: 30 V⎓, SELV
- Total output current: 640 mA (shared)
- Interface protocol: cEMI
- Max. APDU length: 220 bytes
- Medium type: IP/TP
- Housing: Plastic, DIN rail mounting (6 units, 108 mm wide)
- Protection class: IP20 (when mounted inside a distribution board)
- Weight: approx. 300 g
- Controls: 4 buttons, OLED display, programming LED
- Ethernet: 100BaseT (100 Mbit/s)
- Network protocols: ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP, Auto IP
- Connections:
- 230 V∿: pluggable screw terminal (1.5–2.5 mm²)
- KNX bus: RD/BK
- Auxiliary voltage: YE/WH
- LAN: RJ-45
- Installation: Permanent indoor installation in dry environments or distribution boards on DIN rail
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -25 °C to +70 °C
Important Note
Note: This device supports KNX Secure for both routing and interface functions. Security must be activated in ETS to prevent unauthorized access.
