Flat XL X8 | 8-gang Capacitive Touch Sensor
€203,22 Incl. tax €260,54 Incl. tax. Out of stock, but available
Specifications
Information
Zennio Flat XL X8 | 8-Gang Capacitive Touch Sensor
Product Description

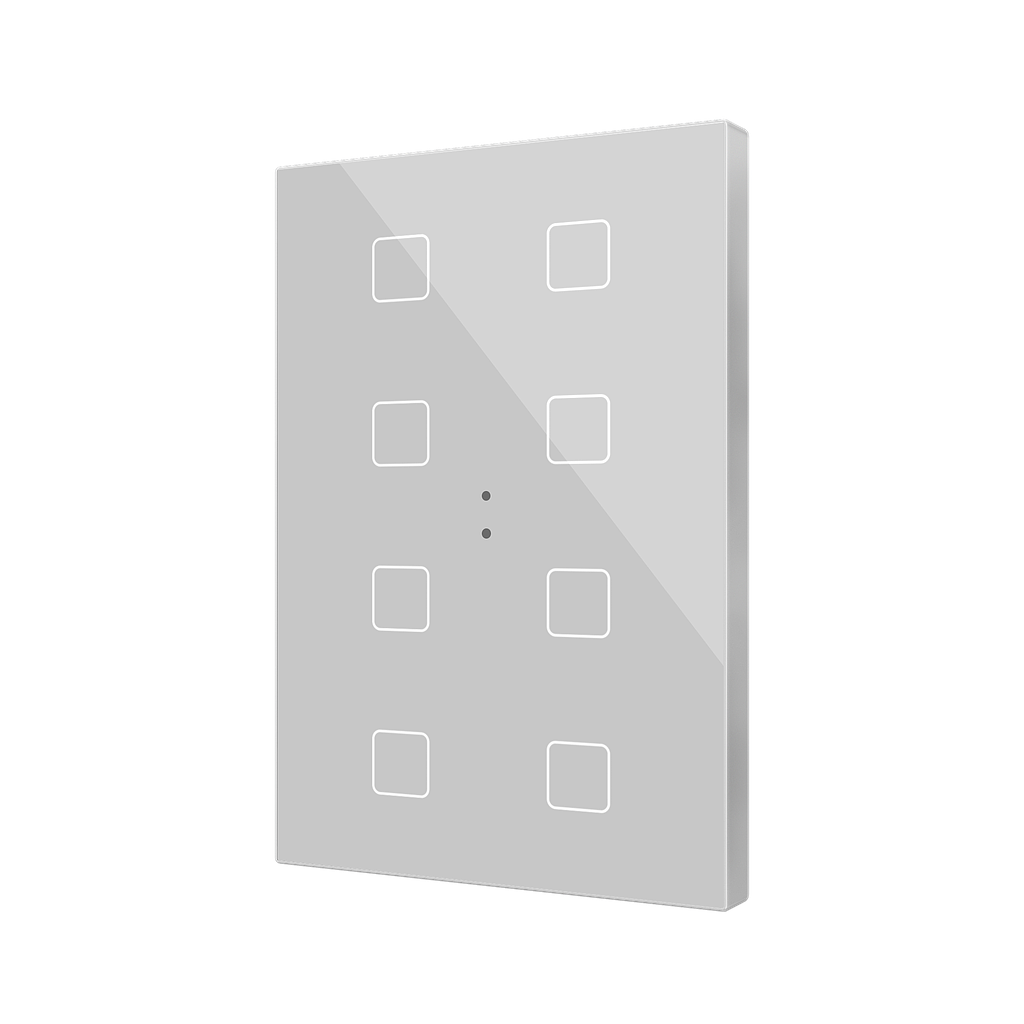

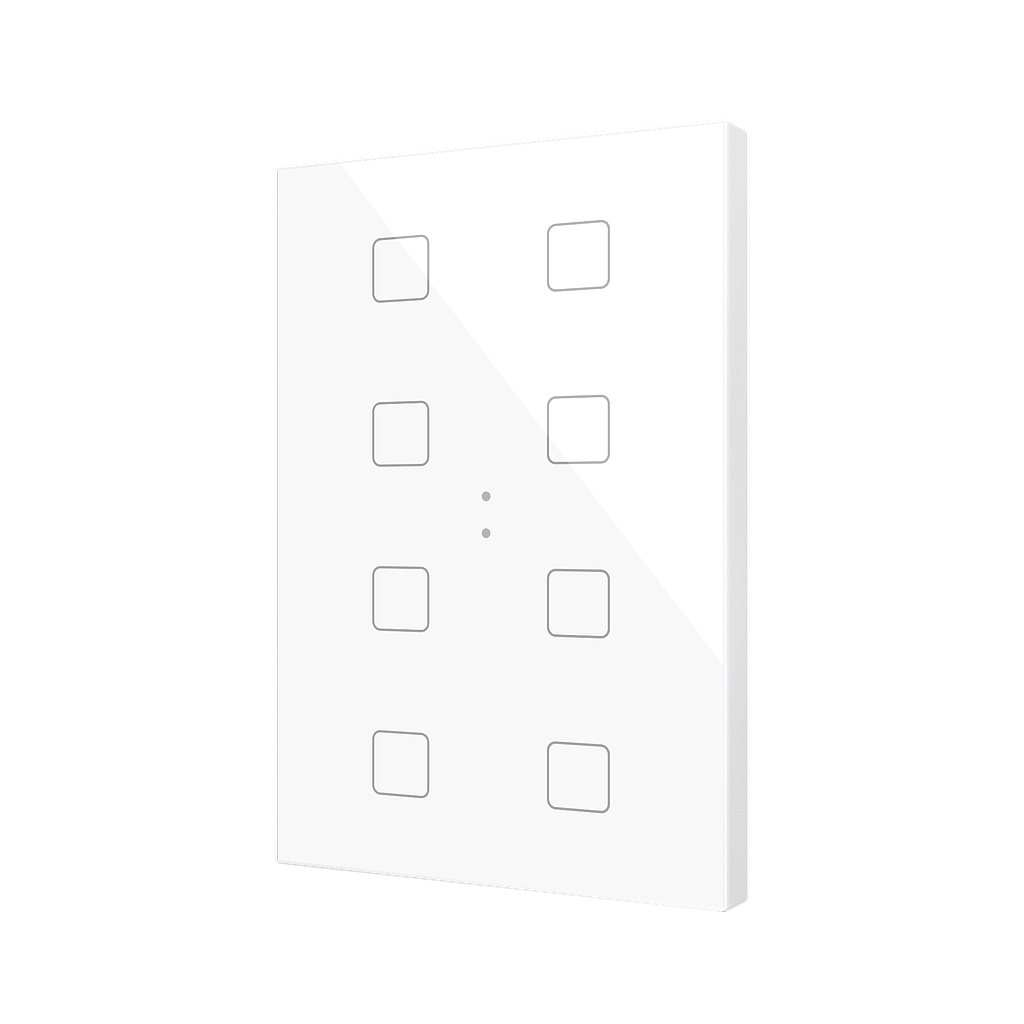

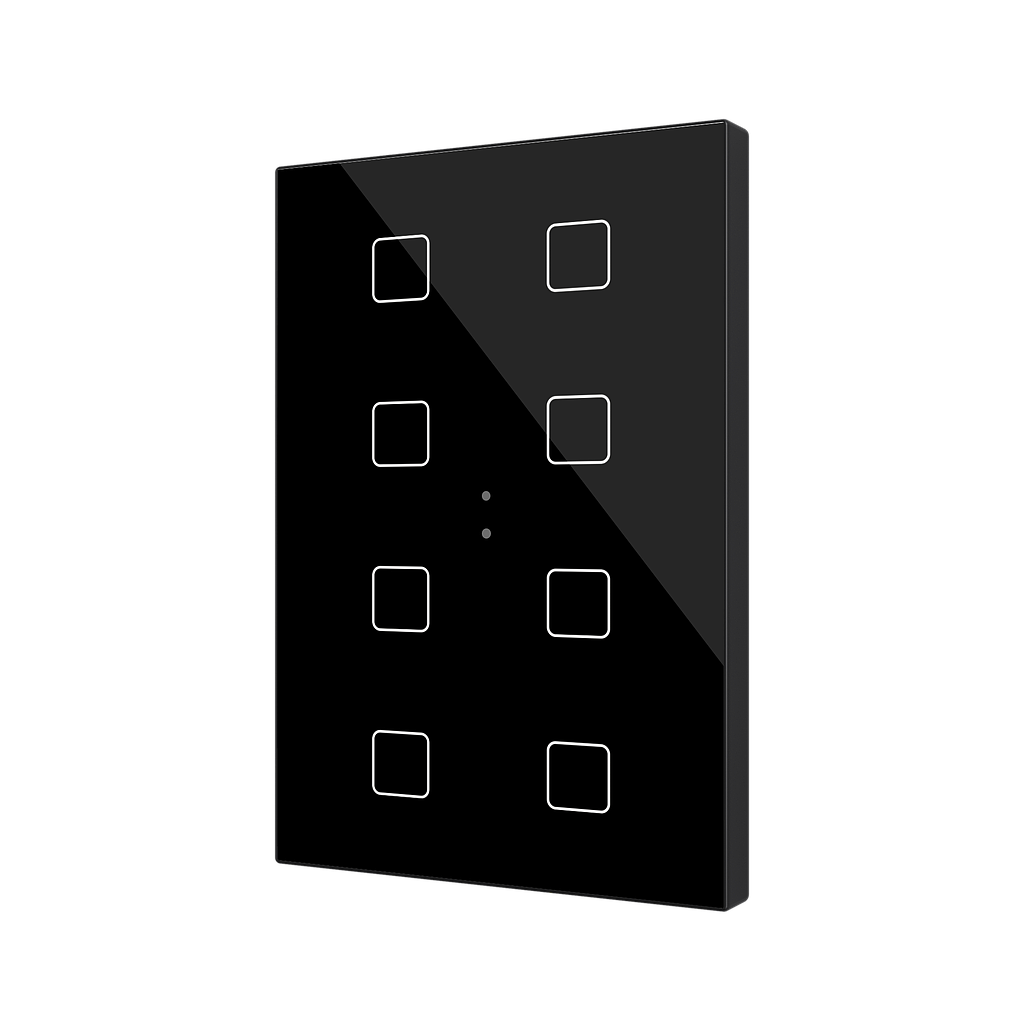

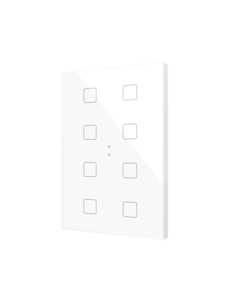

The Zennio Flat XL X8 is a capacitive touch sensor with 8 touch zones, a customizable glass surface, and integrated backlighting that adapts to ambient lighting. Featuring a built-in thermostat, temperature sensor, and two analog/digital inputs, this switch offers extensive functionality. Its ultra-flat design of just 9 mm thickness makes it suitable for installation in standard European, Italian, Australian, American, and British flush-mounted boxes.
Key Features
- Capacitive touch sensor with 8 touch zones

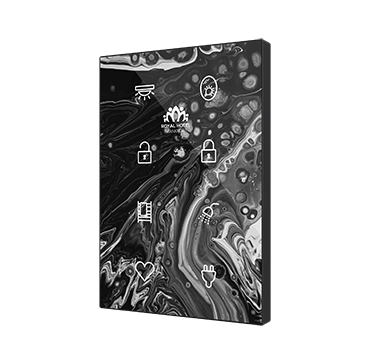

- Customizable printed glass finish
- Integrated backlighting with automatic adjustment
- Proximity sensor
- Built-in thermostat and temperature sensor
- 2 analog/digital inputs (configurable as binary inputs, sensors, or push buttons)
- Full KNX compatibility (TP1-256 bus)
- Flush mount installation in standard flush-mounted boxes
- Available in white, black, and silver
Technical Specifications
| Feature | Description |
|---|---|
| Dimensions | 120 x 82 x 37 mm (9 mm thick on wall) |
| Power Supply | KNX bus 21-31 VDC |
| Max. Consumption | 597.4 mW (29 VDC) |
| Operating Temperature | 0 to +55°C |
| Protection Rating | IP20 |
| Installation | Flush mount in standard flush-mounted boxes |
