Tecla 70 X2 Touch sensor push button 2-fold
€127,68 Incl. tax €157,15 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information

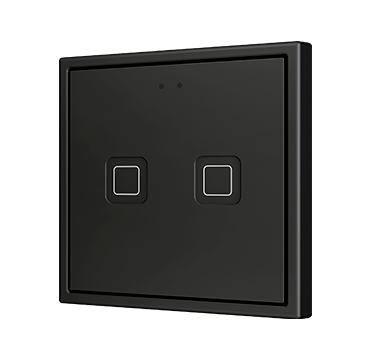

Zennio Tecla 70 X2 - Capacitive Touch Sensor
The Zennio Tecla 70 X2 is a capacitive touch sensor with 2 touch zones, designed for advanced control in smart buildings. Featuring customizable icons, backlighting, and integrated sensors, the Tecla 70 X2 provides a versatile and stylish solution for modern home automation systems. Available in matte white, silver, anthracite, or custom designs. Compatible with 70x70 mm frames.
Main Features
- Capacitive touch sensor with 2 touch zones
- Backlighting with adjustable brightness
- Integrated sensors: temperature, brightness, and proximity
- Built-in thermostat with PI controller for heating and cooling
- Compatible with KNX Data Secure for secure communication
- Acoustic feedback upon touch
- 2 analog/digital inputs for additional functionalities
- Complete data recovery after power failure
Technical Specifications
| Type | Tecla 70 X2 (touch sensor with 2 zones) |
|---|---|
| Power Supply | 21-31 VDC via KNX bus |
| Maximum Power Consumption | 6.6 mA at 29 VDC (typical) |
| Dimensions | 70.5 x 70.5 x 22.6 mm |
| Protection Rating | IP20 (for clean indoor environments) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Connections |
|
| Sensor Range |
|
| Material | PC/ABS (flame-retardant, halogen-free) |
Installation
The Zennio Tecla 70 X2 is installed in a standard flush-mount box and is compatible with 70x70 mm frames. No external power supply is required thanks to the integrated KNX-BCU.
Important Notes
- The frame is sold separately and is not included with the product.
- Support for KNX Data Secure ensures secure communication.
Why Choose the Zennio Tecla 70 X2?
The Zennio Tecla 70 X2 combines style and functionality. With customizable icons, integrated sensors, and backlighting, it is an excellent choice for modern home automation systems.
